Quick Details
-
Cylinder Material:
-
SS304,SS316,CS
-
Blade Material:
-
PP, stainless steel
-
Brush Material:
-
steel wire, nylon wire
Quick Details
-
Weight (KG):
-
180
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUNYI
-
Cylinder Material:
-
SS304,SS316,CS
-
Blade Material:
-
PP, stainless steel
-
Brush Material:
-
steel wire, nylon wire
Introduction

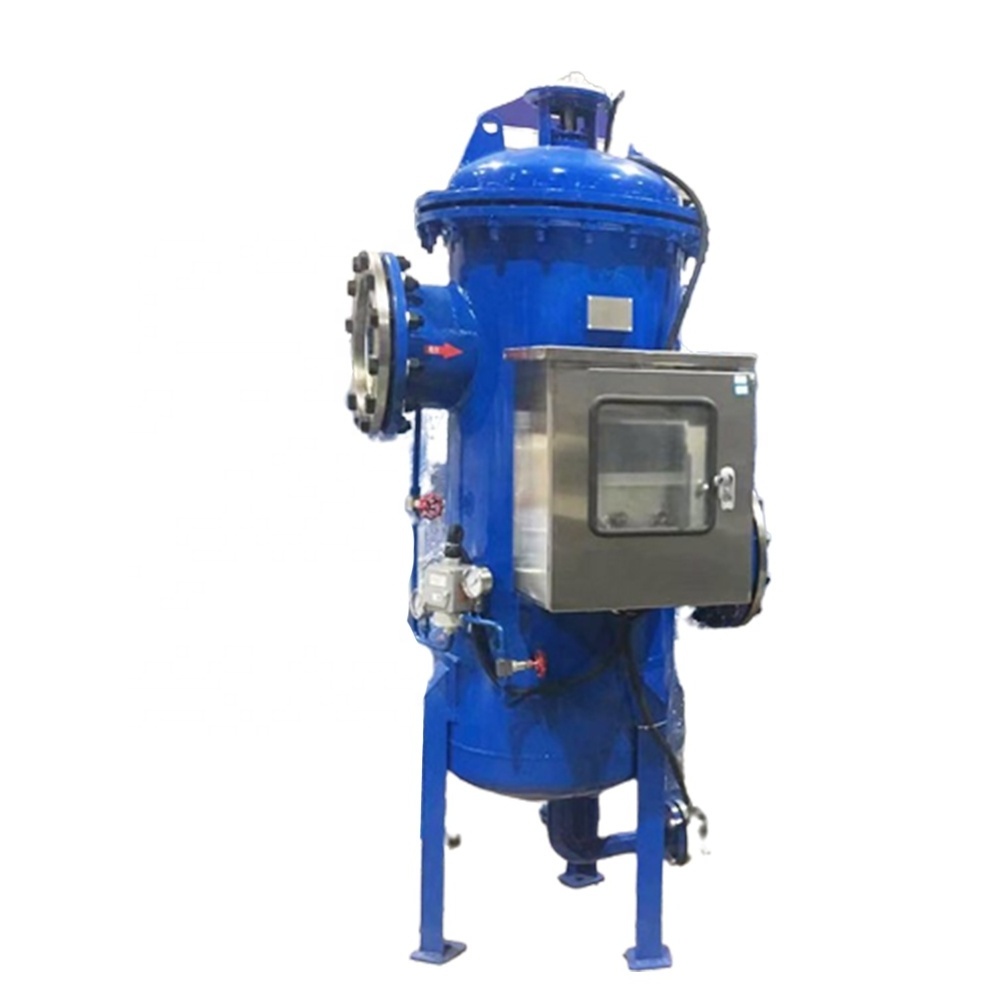

Brush Type Self Cleaning Filter is a fully automatic self-cleaning water filter, the filter is installed with a set of stainless steel brush, or sucking scanner, or brush and sucking combination. The device is driven by the gear reduction motor rotation, on the filter end cover or bottom installation of an electric sewage valve.
Working Principle
The inlet of the self-cleaning filter enters the inside of the filter cartridge, the impurities are trapped on the inner wall of the filter cartridge, and the cleaned water after filtration flows out from the water outlet. When the impurities on the inner wall of the filter cartridge accumulate, the pressure of the inlet and outlet of the self-cleaning filter When the difference reaches the preset value or reaches the cleaning time or manual prefabrication, the filter will start the self-cleaning process.
The whole self-cleaning process consists of two steps: opening the automatic drain valve on the self-cleaning filter; the motor drives the self-cleaning filter to filter In the cleaning system in the net, the impurities blocked by the filter screen are discharged from the drain valve. The system keeps flowing during cleaning, and the entire operation of the self-cleaning filter is controlled by a smart control box that is equipped with it. The control mode can be selected from differential pressure, time,manual and PLC control.
The whole self-cleaning process consists of two steps: opening the automatic drain valve on the self-cleaning filter; the motor drives the self-cleaning filter to filter In the cleaning system in the net, the impurities blocked by the filter screen are discharged from the drain valve. The system keeps flowing during cleaning, and the entire operation of the self-cleaning filter is controlled by a smart control box that is equipped with it. The control mode can be selected from differential pressure, time,manual and PLC control.
Details
Stainless Steel Scraper
Inlet&Outlet
Controller Box
|
Guidance on Model Selection
|
|
|
|
|||
|
Liquid Name
|
Solid-liquid Ratio (%)
|
Specific Gravity of Solid
|
Material State
|
|||
|
|
|
|
|
|||
|
Temperature(℃)
|
Recycle Liquid/Solid
|
Moisture Content of Cake
|
PH Value
|
|||
|
|
|
|
|
|||
|
Liquid Volatility
|
Solid Particle Size(mesh)
|
Working Time/Day
|
Throughput/Day
|
|||
|
|
|
|
|
|||
Packing And Delivery
