Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2280*1270*2100
-
Make:
-
SOAO
-
Machine Weight:
-
890 kg
-
Bucket capacity:
-
0.15, 0.15cbm
-
Product name:
-
Mini Skid Steer Loader
-
Key words:
-
electric mini skid steer loader
-
Application:
-
Building\Agriculture\Construction
-
Certification:
-
CE EURO5
-
Engine type:
-
EPA Diesel Powered
-
Engine:
-
Kubota
-
Color:
-
Customer's Requiement
-
Operating weight:
-
200KG 300KG
-
Usage:
-
Agriculture Machiney Farm Equipments
Quick Details
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
75 KW, 60 KW, 44.7 KW, 37 KW, 15.7 kw, 17.1KW, 14KW
-
Brand Name:
-
SOAO
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2280*1270*2100
-
Make:
-
SOAO
-
Machine Weight:
-
890 kg
-
Bucket capacity:
-
0.15, 0.15cbm
-
Product name:
-
Mini Skid Steer Loader
-
Key words:
-
electric mini skid steer loader
-
Application:
-
Building\Agriculture\Construction
-
Certification:
-
CE EURO5
-
Engine type:
-
EPA Diesel Powered
-
Engine:
-
Kubota
-
Color:
-
Customer's Requiement
-
Operating weight:
-
200KG 300KG
-
Usage:
-
Agriculture Machiney Farm Equipments
We have different types of loaders, because there are many types of products, the order is prepaid, and only a quantitative fee is charged. Please confirm the actual price with the staff according to the product model/load/configuration
We can Provide to all of the customers(Free):
1. Video chatting about machine details(special model)
2. User instructional video/User Manual of special model/special OEM requirements about the machine.
3. Exporting standard package
4. We have loading area,if you have other goods,send to us and packaged together with our machines
5.If you receive pictures and videos of the goods and want to send them to your homepage and website, we can help you with beautification (we have a professional design team)
|

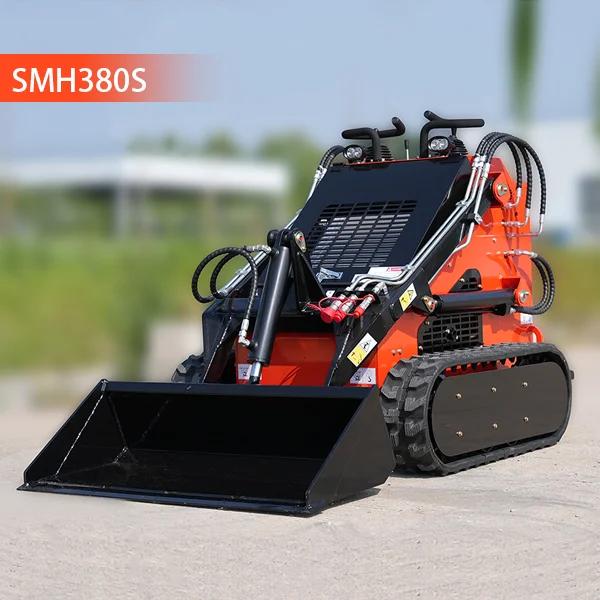

SOAO Mini Skid Steer Loader Technical Parameters
|
|
|
|
|
|
|||||
|
Model
|
|
SMH380
|
|
SMH380S
|
|
|||||
|
Working Device
|
|
Wheel Tires
|
|
Rubber Track
|
|
|||||
|
|
|
Metric
|
U.S.
|
Metric
|
U.S.
|
|||||
|
Performance
|
Rated Load
|
200 KG
|
440 lb
|
200 KG
|
440 lb
|
|||||
|
|
Bucket Capacity
|
0.15 m³
|
5.3 cubic feet (c.f.)
|
0.15 m³
|
5.3 cubic feet (c.f.)
|
|||||
|
|
Max. Lifting Force
|
375 KG
|
826 lb
|
375 KG
|
826 lb
|
|||||
|
|
Travel Speed
|
0-6 km/h
|
3.7 mille/h
|
0-6 km/h
|
3.7 mille/h
|
|||||
|
|
Hydraulic Pressure
|
17 Mpa
|
17 Mpa
|
17 Mpa
|
17 Mpa
|
|||||
|
|
Lifting Time
|
4.3 s
|
4.3 s
|
4.3 s
|
4.3 s
|
|||||
|
|
Lowering Time
|
3.3 s
|
3.3 s
|
3.3 s
|
3.3 s
|
|||||
|
|
Dumping Time
|
1.5 s
|
1.5 s
|
1.5 s
|
1.5 s
|
|||||
|
|
Gradeability
|
30 °
|
30 °
|
30 °
|
30 °
|
|||||
|
|
Operating Weight
|
890 KG
|
1962 lb
|
890 KG/950 KG
|
1962 lb
|
|||||
|
Engine
|
Brand
|
Briggs & Stratton
|
Briggs & Stratton
|
B&S / KOOP
|
B&S / KOOP
|
|||||
|
|
Model
|
3864
|
3864
|
3864 /KD2V80
|
3864 /KD2V80
|
|||||
|
|
Type
|
Gasoline
|
Gasoline
|
Gasoline / Diesel
|
Gasoline / Diesel
|
|||||
|
|
Rated Power
|
17.1KW/3600 rpm
|
23HP
|
17.1KW /14 KW
|
23HP / 20HP
|
|||||
|
|
Fuel Consumption
|
<=6.7 L/h
|
<=1.77 gallon
|
<=6.7 L/h / <=3.6L/h
|
<=1.77 gal/h /<=0.95galL/h
|
|||||
|
|
Starting Mode
|
Electric Start
|
Eletric Start
|
Electric Start
|
Electric Start
|
|||||
|
Fuel And Oil
|
Fuel Tank
|
25 L
|
6.6 gal
|
25 L
|
6.6 gal
|
|||||
|
|
Engine Oil
|
1.7 L
|
0.45 gal
|
1.7 L /3 L
|
0.45 gal / 0.79 gal
|
|||||
|
|
Hydraulic Tank
|
25 L
|
6.6 gal
|
25 L
|
6.6 gal
|
|||||
|
Dimension
|
Max. Working Height
|
2100mm
|
82.7 inch
|
2100mm
|
82.7 inch
|
|||||
|
|
Max. Pin Height
|
1800mm
|
70.9 inch
|
1800mm
|
70.9 inch
|
|||||
|
|
Max. Dumping Height
|
1480mm
|
58.3 inch
|
1480mm
|
58.3 inch
|
|||||
|
|
Max. Dumping Distance
|
430mm
|
16.9 inch
|
430mm
|
16.9 inch
|
|||||
|
|
Max. Dumping Angle
|
30°
|
30°
|
30°
|
30°
|
|||||
|
|
Rollback of Bucket on Ground
|
25°
|
25°
|
25°
|
25°
|
|||||
|
|
Length With Bucket
|
2285mm
|
90.0 inch
|
2285mm
|
90.0 inch
|
|||||
|
|
Length Without Bucket
|
1855mm
|
74.2 inch
|
1855mm
|
74.2 inch
|
|||||
|
|
Machine Width
|
1155mm
|
45.5 inch
|
1090mm
|
42.9 inch
|
|||||
|
|
Bucket Width
|
1150mm
|
45.3 inch
|
1150mm
|
45.3 inch
|
|||||
|
|
Upper Working Device Width
|
810mm
|
31.9 inch
|
810mm
|
31.9 inch
|
|||||
|
|
Overall Height (not working)
|
1270mm
|
50 inch
|
1270mm
|
50 inch
|
|||||
|
|
Departure Angle
|
16°
|
16°
|
16°
|
16°
|
|||||
|
|
Ground Clearance
|
110mm
|
4.3 inch
|
110mm
|
4.3 inch
|
|||||
|
|
Wheel Base
|
685mm
|
27.0 inch
|
760mm
|
29.9 inch
|
|||||
|
|
Forward Turning Radius
|
1300mm
|
51.2 inch
|
1300mm
|
51.2 inch
|
|||||
FAQ
1. What Certificate do you have?
SOAO workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
SOAO will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 2 years first. Details to see the SOAO warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
