Cells Layout: 108 Half Cells(6×18)
Dimensions: 1722 x 1134 x 30mm
Weight: 21.0kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 YEARS
-
Brand Name:
-
Sunpal
-
Model Number:
-

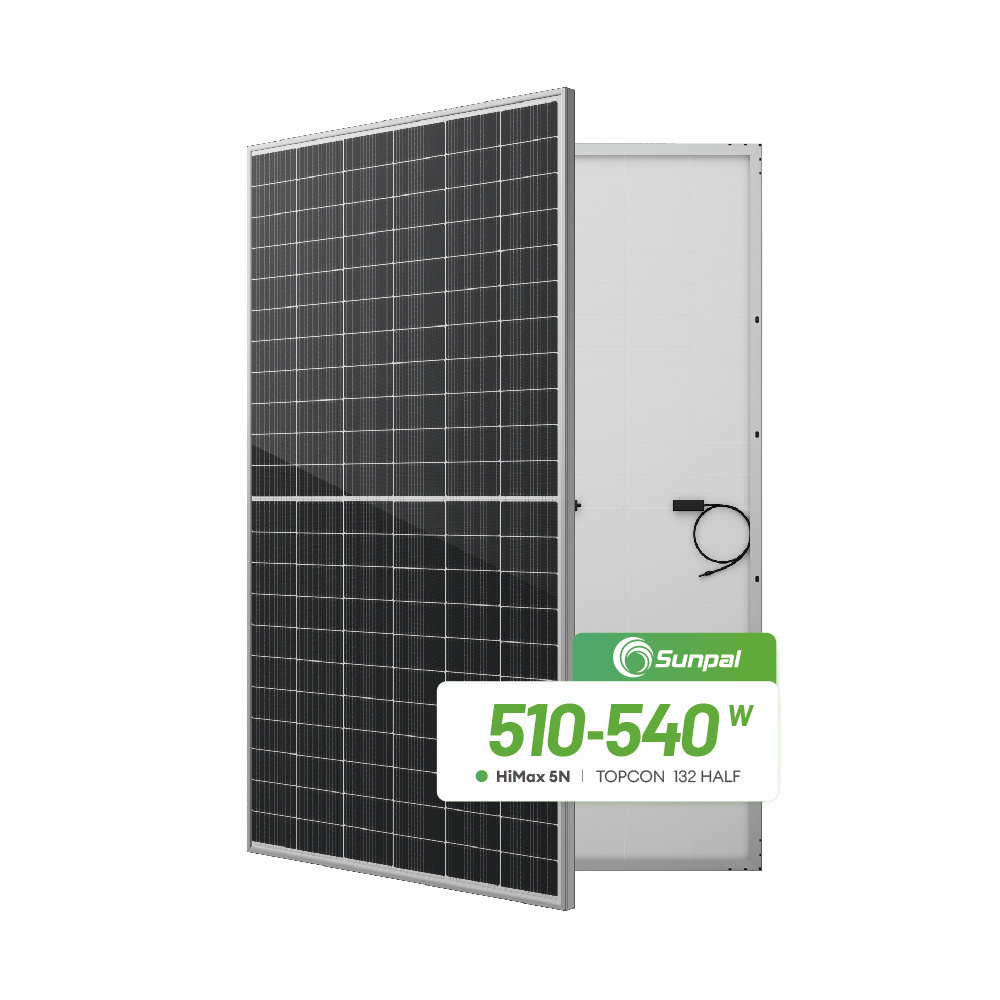

HiMAX 5N TOPCon 132 Half Cells 510-540W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2094 * 1134 * 35mm
-
Solar Cells:
-
N-type Mono TOPCon
-
No. of Cells:
-
132 (6x22)Cells
-
Dimensions:
-
2094 * 1134 * 35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized Auminium Alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Packaging:
-
31pcs/box, 558pcs/40'HQ
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, N-TYPE, TOPCON
-
Panel Efficiency:
-
21.4%
-
Warranty:
-
25 YEARS
-
Brand Name:
-
Sunpal
-
Model Number:
-
HiMAX 5N TOPCon 132 Half Cells 510-540W
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2094 * 1134 * 35mm
-
Solar Cells:
-
N-type Mono TOPCon
-
No. of Cells:
-
132 (6x22)Cells
-
Dimensions:
-
2094 * 1134 * 35mm
-
Glass:
-
2.0mm coated semi-tempered glass
-
Frame:
-
Anodized Auminium Alloy
-
Junction Box:
-
IP68 Rated, 3 Diodes
-
Cable:
-
4mm2, 300mm (+) / 300mm (-) or Customized
-
Wind/Snow Load:
-
2400Pa/5400Pa
-
Connector:
-
MC Compatible
-
Packaging:
-
31pcs/box, 558pcs/40'HQ
Solar Panel Detail
|
Module Type: SE5-66H
|
510
|
515
|
520
|
525
|
530
|
|
Maximum power (Pmax/W)
|
510
|
515
|
520
|
525
|
530
|
|
Open Circuit Voltage (Voc/V)
|
46.64
|
46.84
|
47.03
|
47.22
|
47.41
|
|
Short Circuit Current (Isc/A)
|
14.00
|
14.07
|
14.14
|
14.21
|
14.28
|
|
Voltage at Maximum power (Vmpp/V)
|
39.02
|
39.19
|
39.36
|
39.53
|
39.70
|
|
Current Maximum Power (Impp/A)
|
13.07
|
13.14
|
13.21
|
13.28
|
13.35
|
|
MODULE EFFICIENCY (%)
|
21.48
|
21.69
|
21.90
|
22.11
|
22.32
|
Cells Layout: 144 Half Cells(6×24)
Dimensions: 2279 x 1134 x 30mm
Weight: 27.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Dimensions: 2279 x 1134 x 30mm
Weight: 27.5kg
Modules per box: 36pcs
Modules per 40' container: 720pcs
Cells Layout: 156 Half Cells(6×26)
Dimensions: 2465 x 1134 x 35mm
Weight: 30.0kg
Modules per box: 31pcs
Modules per 40' container: 496pcs
Dimensions: 2465 x 1134 x 35mm
Weight: 30.0kg
Modules per box: 31pcs
Modules per 40' container: 496pcs
Certifications
Global Project Case
Residential
Thousands of houses around the globe are equipped with Sunpal solar panel systems, so they can now enjoy the clean power with a lower electricity bill and moreover, make profits from them.
Commercial
Either self-consumption or selling to the grid, commercial projects provide system owners with a new way of investment, in which module plays a key role. And Sunpal was, is, and will always be a reliable partner which you won`t regret to choose.
Smart Manufacturing
Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and
efficiency, Sunpal divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
efficiency, Sunpal divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
Quality Control
Stringent quality control is the cornerstone of Sunpal's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees . We are proud of our product quality and their reliable performance even in the most extreme conditions. Sunpal has received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
Customer Photos
Contact Us
A: What's your warranty policy?
We offer 12 years warranty for materials and processing, and 25 years warranty for extra linear power output.
B: Are you a factory or trading company?
We are a factory with more than 16 years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: Which type solar modules you can offer?
We can offer many kinds solar panels, such as P-Type PERC/N-Type HJT/N-Type TopCon/back contact/high transmittance solar panels.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
B: Are you a factory or trading company?
We are a factory with more than 16 years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: Which type solar modules you can offer?
We can offer many kinds solar panels, such as P-Type PERC/N-Type HJT/N-Type TopCon/back contact/high transmittance solar panels.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
