Quick Details
-
Lift Speed:
-
0.8/8m/min
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
26500 kg
-
Product name:
-
Supporting crane door crane bridge machine used wire rope hoist
-
Application:
-
Construction Site Lifter
-
Working Class:
-
A3
-
Motor:
-
Nanjing special motor
-
Main electrical parts:
-
Siemens or Schneider brand
-
Capacity:
-
100kg -1000kg
-
Voltage:
-
380V
-
Lifting height:
-
6m-30m(max 100m)
-
Color:
-
Customised
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kuan Yuan
-
Lift Speed:
-
0.8/8m/min
-
Marketing Type:
-
Hot Product 2024
-
Weight (KG):
-
26500 kg
-
Product name:
-
Supporting crane door crane bridge machine used wire rope hoist
-
Application:
-
Construction Site Lifter
-
Working Class:
-
A3
-
Motor:
-
Nanjing special motor
-
Main electrical parts:
-
Siemens or Schneider brand
-
Capacity:
-
100kg -1000kg
-
Voltage:
-
380V
-
Lifting height:
-
6m-30m(max 100m)
-
Color:
-
Customised

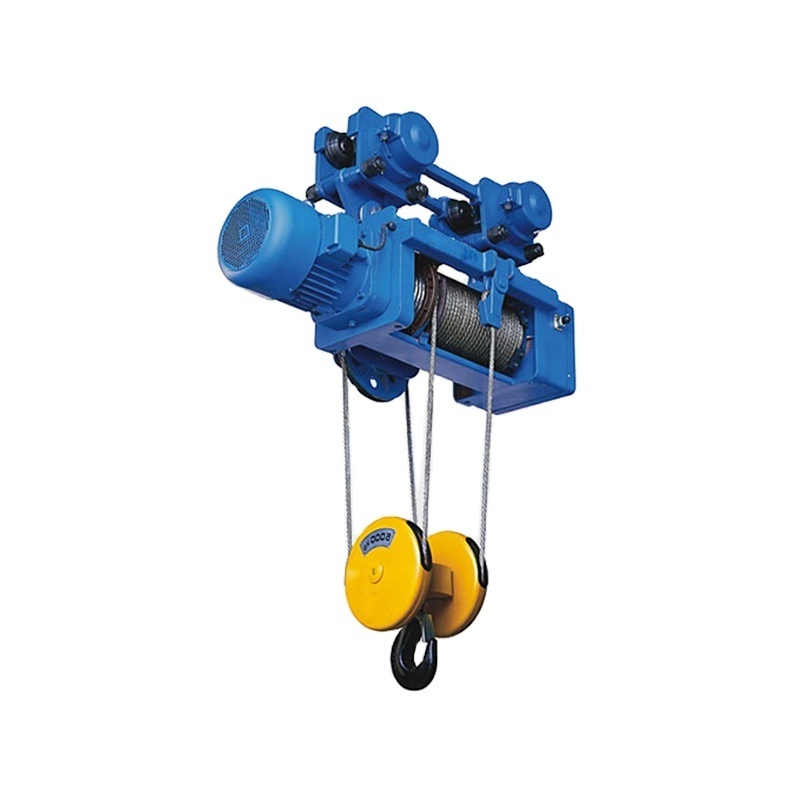

Supporting crane door crane bridge machine used
wire rope hoist
CD/MD electric hoist is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. Adjustable speed of electric hoist., electric hoist can satisfy normal application.Specifications:
1.
Design
:
International advanced tide compact and nice.
2.
Reduce:
High strength hard gear surface, inclined gear driving with low noise.
3.
Motor:
Inside fit plane brake, double winding pole changing control motor, incorporate with reducer, suit higher classification.
4.
Wire Rope:
The tensile strength is 1760N/mm2.
5.
Limit Switch:
Cam limit model operate safety.
6. Working duty: A5/M5
7. Speed: with Frequency inverter
8. Main electrical parts: Schneider
9. Motor brand: China or Germany.
Click to customize your parameters!
Technical parameters:
|
Model |
CD1 |
||||||||||||
|
Capacity |
Tons |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
20 |
|||
|
Hoisting height |
m |
3,6,9 |
6,9,12,18,24,30 |
9,12,18,24,30 |
9,12,18 |
||||||||
|
Hoisting speed |
m/min |
8 |
7 |
3.5 |
4 |
||||||||
|
Travel speed |
m/min |
20 |
20/30 |
20 |
|||||||||
|
Wire rope |
Dia.(mm) |
3.6 |
4.8 |
7.7 |
11 |
13 |
15 |
17.5 |
19.5 |
||||
|
Spec. |
6 x19 |
6x37+FC |
|||||||||||
|
Hoisting motor |
Type |
Type |
ZD112-4 |
ZD121-4 |
ZD122-4 |
ZD131-4 |
ZD132-4 |
ZD141-4 |
ZD151-4 |
ZD152-4 |
|||
|
Power |
Power(kW) |
0.4 |
0.8 |
1.5 |
3 |
4.5 |
7.5 |
13 |
18.5 |
||||
|
Rotation speed |
Rotation speed(r/min) |
1380 |
|||||||||||
|
Current |
(A) |
1.25 |
2.4 |
4.3 |
7.6 |
11 |
18 |
30 |
41.7 |
||||
|
Travel motor |
Type |
Type |
ZDY110-4 |
ZDY111-4 |
ZDY112-4 |
ZDY121-4 |
|||||||
|
Power |
Power(kW) |
0.06 |
0.2 |
0.4 |
0.8 |
0.8x2 |
|||||||
|
Rotation speed |
Rotation speed(r/min) |
1400 |
1380 |
||||||||||
|
Current |
Current(A) |
0.3 |
0.72 |
1.25 |
2.4 |
4.3 |
|||||||
Details:
CD Hoists are specially designed for higher lifts, faster hoisting & cross travel speeds & moveable on curved tracks can be manufactured accord demand.
MOTORS: We offer hoist & crane duty Vz hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.
ROPE DRUM: The rope drum is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.
ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is designed to ensure proper tensioning of the rope.
GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.
CONSTRUCTION: brake, motors, gear box & control panel are independent units and accessible easily. The complete hoist can be easily maintained by keeping it in its installed position, thus saving precious labor as well as down time and maintenance time.
Detailed Images:
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge Single girder 10 ton overhead crane sale, overhead Single girder 10 ton overhead crane sale price 20 ton 5ton, eot Single girder 10 ton overhead crane sale, door Single girder 10 ton overhead crane sale, universal gantry Single girder 10 ton overhead crane sale, rubber tyre and rail mounted container gantry Single girder 10 ton overhead crane sale, four link type portal Single girder 10 ton overhead crane sale, quayside container Single girder 10 ton overhead crane sale, Single girder 10 ton overhead crane sale, Single girder 10 ton overhead crane sale hook, mining grab Single girder 10 ton overhead crane sale, gantry Single girder 10 ton overhead crane sale, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic Single girder 10 ton overhead crane sale technical requirements.
The 2,700-plus-member factory covers over 680,000 square meters and has a total asset of 660 million CNY . The 1,200-plus equipment enable the company to independently conduct over 20 technological flows , including lathing, milling, planning and grinding. The 180-plus intermediate and senor technical staff are responsible for R&D and production of all the products. The products have passed CE SGS TUV BV and CU-TR verification, and factory passed ISO9001-2008 international certification, IS014001:1996 environmental and ISO28001-2001 quality, health and safety certification. Our company has perfect quality-control system, strict and comprehensive management system, strong production capability and advanced test measures, guaranteeing high quality, output, competitiveness and market share.
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels, grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are also warmly welcomed to our factory to make the inspections.
