Quick Details
-
Power:
-
TBD
-
Dimension(L*W*H):
-
TBD
-
Weight:
-
2000 KG
-
Warranty:
-
1 Year
-
Product name:
-
Scraper wiped film evaporator
-
Material:
-
Stainless Steel 304/316L,Titanium
-
TYPE 2:
-
Thin film
-
Processing:
-
Concentrator
-
Characteristic:
-
Energy saving,Environmental protective
-
Usage:
-
Condensed milk,Juice,tomato paste,etc.
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZONBO
-
Voltage:
-
380-440V
-
Power:
-
TBD
-
Dimension(L*W*H):
-
TBD
-
Weight:
-
2000 KG
-
Warranty:
-
1 Year
-
Product name:
-
Scraper wiped film evaporator
-
Material:
-
Stainless Steel 304/316L,Titanium
-
TYPE 2:
-
Thin film
-
Processing:
-
Concentrator
-
Characteristic:
-
Energy saving,Environmental protective
-
Usage:
-
Condensed milk,Juice,tomato paste,etc.
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
Ordinary Product
Product Overview

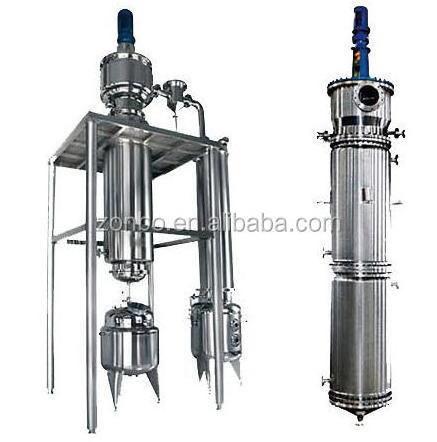

WIipe film evaporator (WFE)
The operating features of our WFEs, such as high vacuum (short path) distillation, short residence time and a highly agitated thin film of feed product on a heated surface, makes WFEs ideally suited to handle a wide range of heat sensitive, high boiling, fouling, and viscous materials.
No application is too small or too big for our capabilities. Each of our Wiped Film Evaporator is thoroughly tested and inspected prior to shipment via Factory Acceptance Testing including a vacuum rise test, internal and jacket hydrostatic pressure test, and a operational test with water to ensure the WFE is operating precisely to our standards prior to shipment.
FEATURES AT A GLANCE
Products enter above the heated zone and is evenly distributed over the unit’s inner surface by the rotor. As the product
spirals down the wall, bow waves developed by the rotor blades generate highly turbulent flow, resulting in optimum heat flux and mass transfer. Volatile components are rapidly evaporated. Vapors flow either counter-currently or co-currently through the unit, depending on the application. In both cases, vapors are ready for condensing or subsequent processing. Non-volatile components are discharged at the outlet. Continuous agitation by the bow waves minimizes fouling of the thermal wall where product or residue is concentrated most.
spirals down the wall, bow waves developed by the rotor blades generate highly turbulent flow, resulting in optimum heat flux and mass transfer. Volatile components are rapidly evaporated. Vapors flow either counter-currently or co-currently through the unit, depending on the application. In both cases, vapors are ready for condensing or subsequent processing. Non-volatile components are discharged at the outlet. Continuous agitation by the bow waves minimizes fouling of the thermal wall where product or residue is concentrated most.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
|
GBN0.3
|
GBN0.5
|
GBN0.8
|
GBN1.0
|
GBN1.5
|
GBN2.0
|
|||||
|
Heat exchanger area(m2)
|
0.3
|
0.5
|
0.8
|
1.0
|
1.5
|
2.0
|
|||||
|
Steam pressure(MPa)
|
0.3
|
|
|
|
|
|
|||||
|
Vacuum degree(MPa)
|
-0.095
|
|
|
|
|
|
|||||
|
Evaporation capacity(kg/h)
|
50
|
85
|
140
|
200
|
270
|
400
|
|||||
|
Steam consumption(kg/h)
|
56
|
95
|
150
|
220
|
280
|
430
|
|||||
|
Agitator power(KW)
|
0.55
|
0.75
|
0.75
|
1.5
|
1.5
|
3.0
|
|||||
|
Agitator speed(r/min)
|
134
|
134
|
134
|
125
|
125
|
86
|
|||||
|
Equipment height(mm)
|
2500
|
2750
|
2900
|
3100
|
3500
|
4800
|
|||||
Successful Project
Project in Thailand
Project in India
Project in Russia
Why Choose Us
Initiated in 1993,
Wenzhou Jiangbo Dairy Product Equipment Manufacturing Factory has gone through 20 manufacturing years in Diary&Beverage industry. 20 years of experience brought us a first batch of specialized frontline technical workers and core engineers, winning widely reputation and faith among domestic market. A lot of supports from our clients promoting Jiangbo to move forward, We do not just stay where we begin.
In year of 2013,
we established Zhejiang Zhongbo Mechanical Technology Co.,Ltd.In an effort to keep pace with automation technology development, talents and advanced automatic equipment were constantly introduced, laser cutting, automatic polishing, automatic welding etc .Within 10 years, we have took a big step in production technology, furthermore broadened our production scope involving to other filed.
In year of 2021
, we has established and passed ISO9001:2000 quality assurance system to improve production management and after-sale services.
Certifications
Automation Technology
Argon arc welding is a welding technology that uses argon gas as a shielding gas. It is to
pass argon protective gas around the arc welding to isolate the air outside the welding area and prevent the oxidation of the
welding area
pass argon protective gas around the arc welding to isolate the air outside the welding area and prevent the oxidation of the
welding area
Laser cutting machine
Improve stability and precision of cutting
Improve stability and precision of cutting
Polishing machine
used for equipment surface
Manufacturing Workshop
Delivery & Packaging
FAQ
Q: What is your main products?
A: we are specialized in plant equipment used for evaporation, extraction, concentration and pasteurization process.
Q: Is available overseas engineer installation?
A:Yes, There are to be 3 phases with regards to overseas installation: First, Technical Assistance by video, telephone or email.
Then, Despatch of regular spare parts from the Seller’s stock. Last, Departure of required service engineer(s).
Q:Could i get customization service?
A: Yes, please contact us for details.
Q:What is your production experience?
A:Almost 20 years in Food&Beverage
Q: What is you advantage?
A:Source Factory, competitive price, reputed guarantee, in-time after-sale services
A: we are specialized in plant equipment used for evaporation, extraction, concentration and pasteurization process.
Q: Is available overseas engineer installation?
A:Yes, There are to be 3 phases with regards to overseas installation: First, Technical Assistance by video, telephone or email.
Then, Despatch of regular spare parts from the Seller’s stock. Last, Departure of required service engineer(s).
Q:Could i get customization service?
A: Yes, please contact us for details.
Q:What is your production experience?
A:Almost 20 years in Food&Beverage
Q: What is you advantage?
A:Source Factory, competitive price, reputed guarantee, in-time after-sale services
