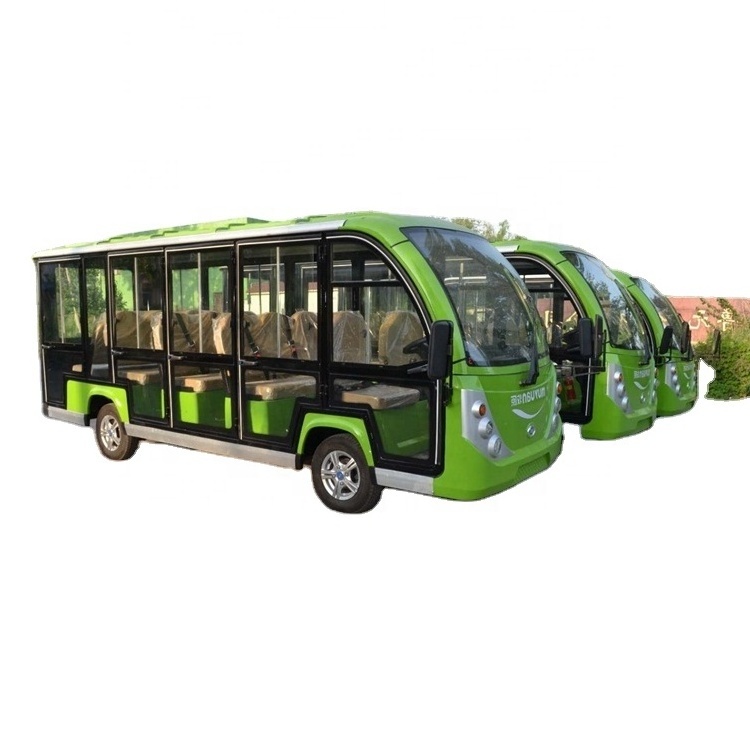

Chinese manufacturer luxury mini bus 14 passenger electric shuttle bus

Electric system

Motor controller

Full intelligent controller

Battery

6V 20 0AH/ pc , 12 pcs / 72 V ( Maintenance-free battery )

Motor

7.5 KW AC motor

Charger

Vehicle-mounted intelligent charger

Charging time

8-10 hours ( Discharge rate is 80% )

Technical specs

Input voltage

220V

L * W * H

5200 ×1450×2100mm

Brake distance

≤5m

Curb weight

1150kg

Rated passenger

14 persons

Loading capacity

150 0 kg

Max speed

30km/h

Front and rear track

1220/12 30 mm

Maximum grade

15 %

Wheelbase

2820mm

Minimum turning radius

6.5m

Minimum ground clearance

150mm

Driving mileage

100-12 0 km

Body system

Seats

The first row of seats (1+1, leather fabric + high rebound PU, angle adjuster, gray seat)

Rear three-row row seats (leather fabric + high resilience PU, gray seats)

Body

Steel frame + injection shell/ABS engineering plastic molded parts

Dashboard

LCD instrument display (including voltage, current, speed, mileage, lighting, front and rear commutation signals)

Rear view mirror

Manual exterior mirror

Lights and signals

LED combination headlights, turn signals, combination rear lights, brake lights, electric horns and reversing buzzer

Audio

Car MP3 player, professional speaker

Switches

Start switch, light and wiper combination switch, forward and backward gear switch

Door

No

Frame

Steel frame

S teering wheel

Polyurethane foam steering wheel
