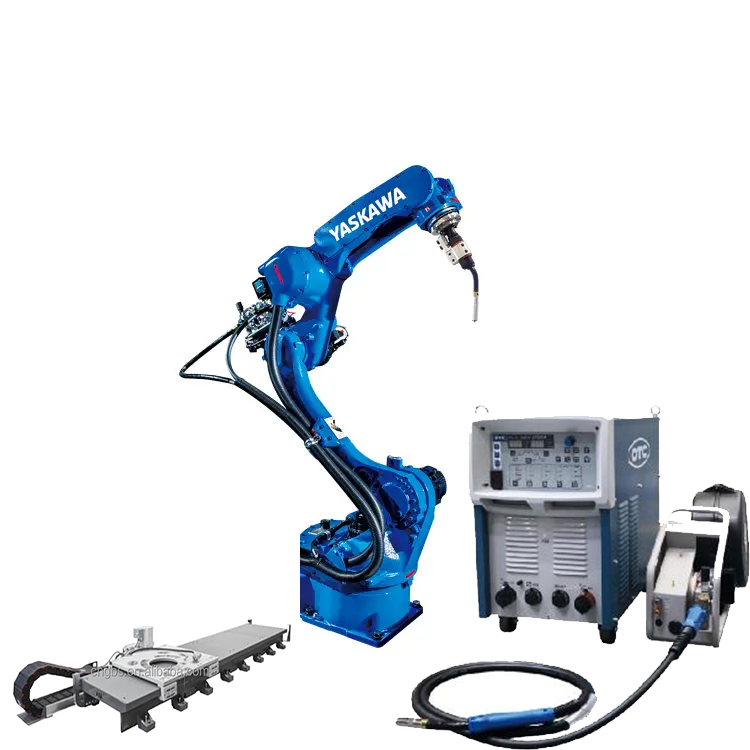

YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution
YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution

YASKAWA Industrial Robot AR 2010 With TBI Welding Torch And OTC Welders And Rails System For Mig Mag Tig Welding Robot Solution

FOB Reference Price: Get Latest Price
≥1 Sets
US $25000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Weight (KG):
260
Voltage:
chat
Current:
chat
Rated Capacity:
chat
Rated Duty Cycle:
chat
Dimensions:
2010mm(Arm Length)
Use:
welding,laser process,handling,other
Product Name:
Robot AR 2010 With TBI Welding Torch And OTC Welders
Robot Brand:
YASKAWA
Model:
AR2010
Arm length:
2010mm
Repeatability:
0.03mm
Axis:
6
Payload:
12kg
Installation Method:
Floor
Ambient temperature:
0-45°C
Application:
Welding,Handling,Laser process

Quick Details

Place of Origin:
China
Brand Name:
YASKAWA
Key Selling Points:
Robot Body
Weight (KG):
260
Voltage:
chat
Current:
chat
Rated Capacity:
chat
Rated Duty Cycle:
chat
Dimensions:
2010mm(Arm Length)
Use:
welding,laser process,handling,other
Product Name:
Robot AR 2010 With TBI Welding Torch And OTC Welders
Robot Brand:
YASKAWA
Model:
AR2010
Arm length:
2010mm
Repeatability:
0.03mm
Axis:
6
Payload:
12kg
Installation Method:
Floor
Ambient temperature:
0-45°C
Application:
Welding,Handling,Laser process
Product Review
Robot AR 2010 With TBI Welding Torch And OTC Welders
Standard accessories Welders
Robot Specifications
Products Name
Robot AR 2010 With TBI Welding Torch And OTC Welders
Technical data
Robot Arm Length
2010mm
Payload
12kg
Repeativity
0.03mm
Axis
6
Installation Method
floor,
Weight
260kg
Motion Range
S- axis rotation
-180°-+180°
L- axis rotation
-60°-+76°
U- axis rotation
-86°—+90°
R- axis wrist swing
-360°—+360°
B -axis wrist swing
-130°—+130°
T- axis wrist swing
-360°—+360°
Speed with rated payload
S-axis
2.18rad/s,125°/s
L-axis
2.01rad/s,115°/s
U-axis
2.18rad/s,125°/s
R-axis
3.18rad/s,182°/s
B-axis
3.05rad/s,175°/s
T-axis
4.63rad/s,265°/s
Operating conditions
Core Components
PLC
Temperature
0°C to 45°C（273K to 318K)
Use to
Welding and handling
