- Product Details
- {{item.text}}
Quick Details
-
Model:
-
H6
-
CPU:
-
Intel Core i3/i5/i7
-
GPU:
-
Intel UHD Graphics 620 for 8th CPU, Intel UHD Graphics for 10th CPU
-
RAM:
-
64GB Max
-
Storage:
-
1*M.2 SSD+1*SATA 2.5''
-
Display port:
-
2*HD+1*DP
-
USB:
-
4*USB 3.0 port, 2*USB 2.0 port
-
LAN:
-
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
-
OS:
-
Support Windows 10/11, Linux
-
Dimension:
-
PC size 205*125*53mm Package size 308*206*75mm
Quick Details
-
Type:
-
Embedded Computer
-
Brand Name:
-
HYSTOU
-
Place of Origin:
-
Guangdong, China
-
Model:
-
H6
-
CPU:
-
Intel Core i3/i5/i7
-
GPU:
-
Intel UHD Graphics 620 for 8th CPU, Intel UHD Graphics for 10th CPU
-
RAM:
-
64GB Max
-
Storage:
-
1*M.2 SSD+1*SATA 2.5''
-
Display port:
-
2*HD+1*DP
-
USB:
-
4*USB 3.0 port, 2*USB 2.0 port
-
LAN:
-
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
-
OS:
-
Support Windows 10/11, Linux
-
Dimension:
-
PC size 205*125*53mm Package size 308*206*75mm
Details Images

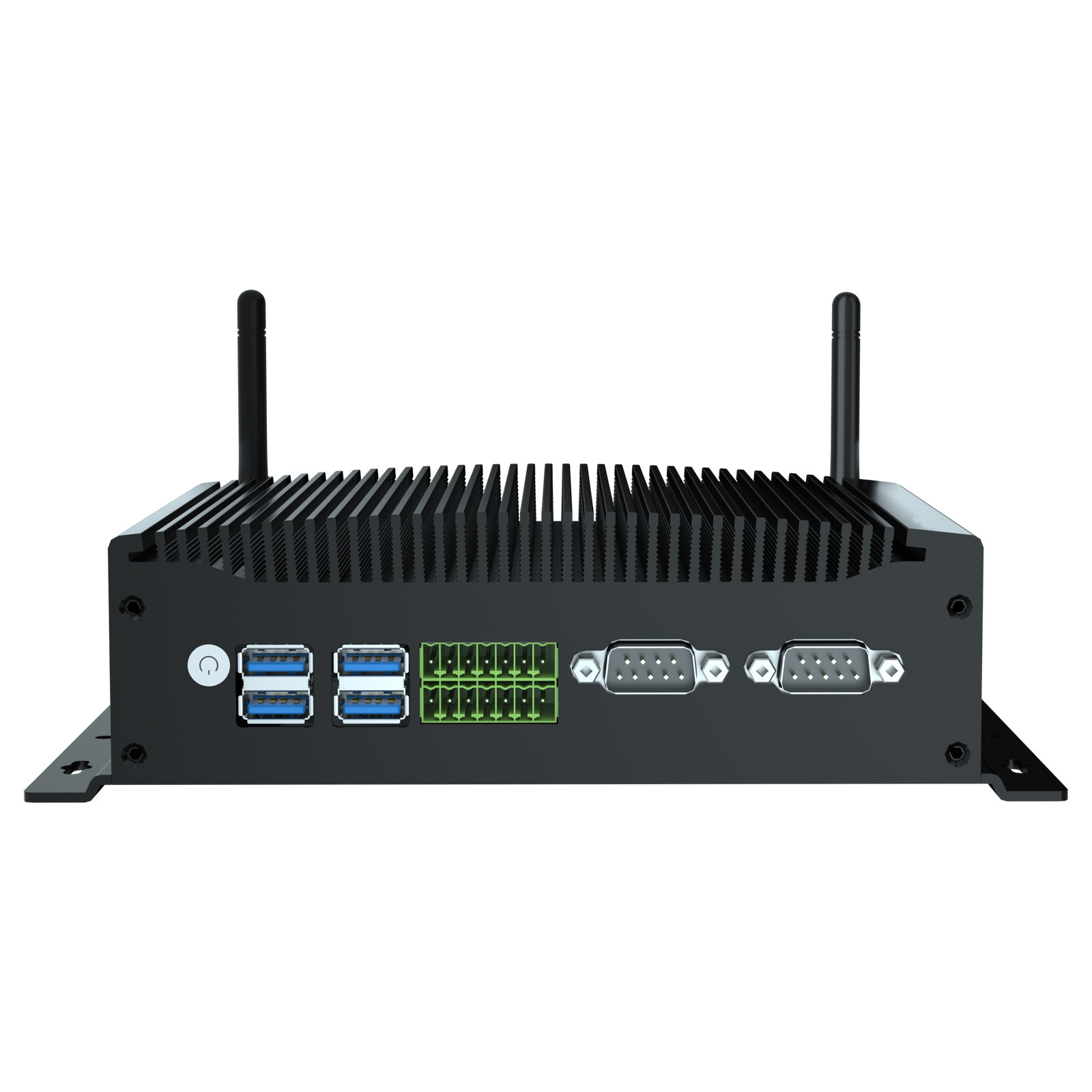

【Fanless cooling design】
Multi-channel all-round heat dissipation,heat dissipation effect more outstanding.
Fanless system without cooling fan, noiselessness and durability fit for industrial grade field, work as long as 7x24 hours.
Featuring an Intel Core processor, 64GB of RAM, and Intel UHD Graphics. Pre-installed with Windows 10 Pro (64-bit), the compact size can hide a lot of power. It can easily run Microsoft Office, One Drive, Outlook and other office software, making your work easier.
【4K Triple-Screen Display】
The mini desktop computer is equipped with 4K Intel UHD Graphics, which provides you with a first-class TV experience, with lifelike picture quality, allowing you to enjoy every frame. Can be used as a media center to enjoy TV shows.
【DDR4 RAM & Expandable 】
This new design fanless industrial pc supports
2*DDR4 SO-DIMM 260 pin
slot Max 64GB RAM.
1*M.2 2280 M KEY PCIE3.0
+
1*SATA3.0 Slot for 2.5 inch HDD/SSD
.
Let you browse the web, chat, watch live video every day, for multitasking, enough to run multiple applications and browser tabs at the same time.
Products Description
|
Processor
|
|
|
|
CPU
|
Intel Core i5-8260U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.90 GHz)
|
|
|
TDP
|
15W
|
|
|
CPU Lithography
|
14 nm
|
|
|
Memory Specifications
|
|
|
|
Max Memory Size
|
64GB
|
|
|
Memory Types
|
2*DDR4 SO-DIMM 260 pin
|
|
|
Memory Channels
|
Dual Channels
|
|
|
ECC Memory
|
Don’t support
|
|
|
Storage Specification
|
|
|
|
m.2 SSD
|
1*M.2 2280 M KEY PCIE3.0
|
|
|
SATA
|
1*SATA3.0 Slot for 2.5 inch HDD/SSD
|
|
|
mSATA
|
1*mSATA slot
|
|
|
Graphics
|
|
|
|
Processor Graphics
|
Intel UHD Graphics 620 for 8th CPU, Intel UHD Graphics for 10th CPU
|
|
|
HD
|
1*HD-MI 4096*2160@30Hz(4K) + 1*HD-MI 4096*2160@60Hz(4K)
|
|
|
DP
|
1*DP 4096*2160@60Hz(4K)
|
|
|
Power Specification
|
|
|
|
Consumption
|
50W
|
|
|
Auto Power On
|
Support Auto Power On Function
|
|
|
In & Out interfaces
|
|
|
|
USB Port
|
2*USB 2.0 port,4*USB 3.0 port
|
|
|
Audio
|
1*3.5mm MIC in & SPK out
|
|
|
Video
|
HD-MI 4096*2160@30Hz + HD-MI 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
|
|
|
Audio Cards
|
USB Audio Device
|
|
|
Lan Port
|
2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
|
|
|
Com Port
|
2*RS232 Com port,Support RS422/RS485 Com port
|
|
|
Wi-Fi
|
Inside Wifi & Blue-tooth Combo
|
|
|
Others
|
|
|
|
System
|
Support Windows 10/11, Linux
|
|
|
Case Material
|
Aluminium Alloy
|
|
|
Dimension
|
PC size 205*125*53mm
Package size 308*206*75mm |
|
|
Weight
|
Net 1.2kg; Gross 1.9kg
|
|
