Quick Details
-
Weight (KG):
-
2600 KG
-
Power (kW):
-
9kw
-
Product name:
-

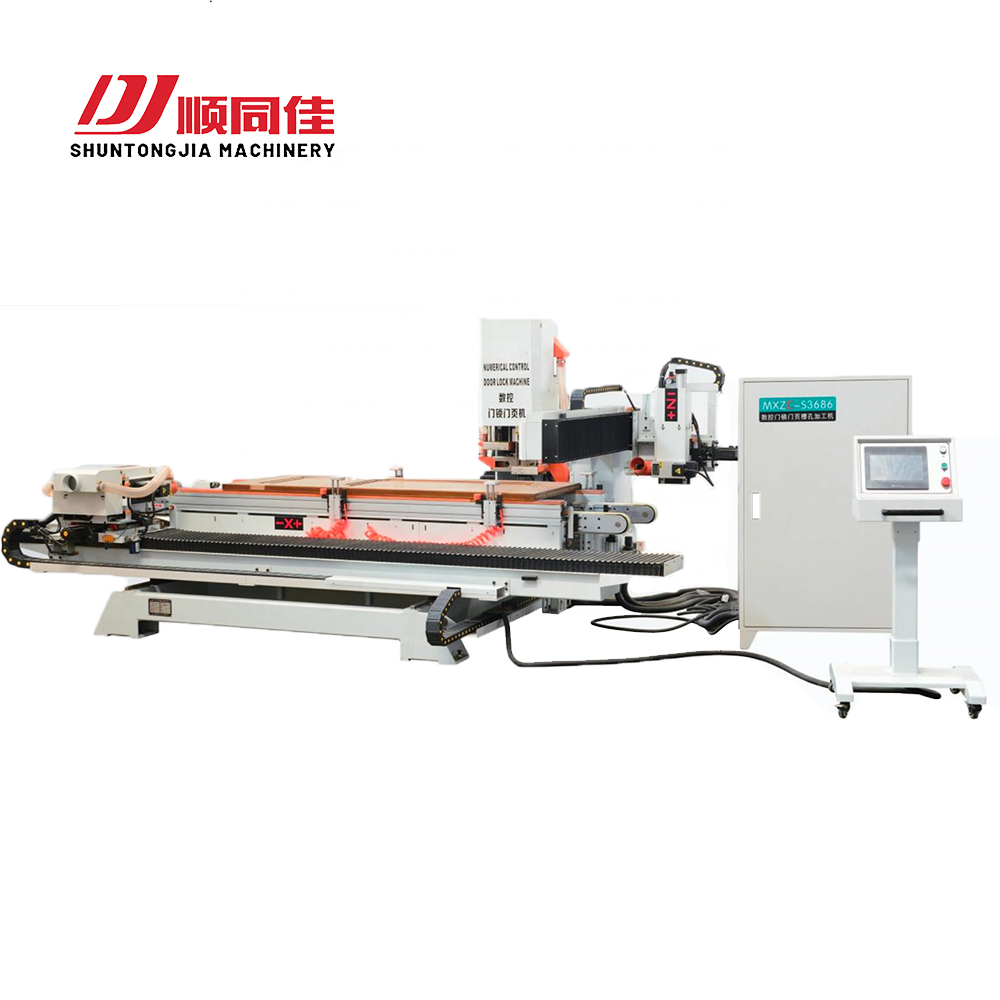

CNC door lock slot hole processing machine
-
Model:
-
MXZC-S3686
-
Processing of door leaf length:
-
1800-2600mm
-
Processing of door leaf width:
-
580-1100mm
-
Processing door leaf thickness:
-
30-65mm
-
Total power of door lock slot motor:
-
9kw 100Hz 6000r/min
-
Doorway pages total power slot motor:
-
4.5kw 100Hz 6000r/min
-
Net weight:
-
2600kg
-
Overall dimensions:
-
5148*2848*1638mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ShunTongJia
-
Machine Type:
-
Mortising Machine
-
Weight (KG):
-
2600 KG
-
Power (kW):
-
9kw
-
Product name:
-
CNC door lock slot hole processing machine
-
Model:
-
MXZC-S3686
-
Processing of door leaf length:
-
1800-2600mm
-
Processing of door leaf width:
-
580-1100mm
-
Processing door leaf thickness:
-
30-65mm
-
Total power of door lock slot motor:
-
9kw 100Hz 6000r/min
-
Doorway pages total power slot motor:
-
4.5kw 100Hz 6000r/min
-
Net weight:
-
2600kg
-
Overall dimensions:
-
5148*2848*1638mm
Specification
|
Product name
|
CNC door lock slot hole processing machine
|
|
|
|
|||
|
Model
|
MXZC-S3686
|
|
|
|
|||
|
Processing of door leaf length
|
1800-2600mm
|
|
|
|
|||
|
Processing of door leaf width
|
580-1100mm
|
|
|
|
|||
|
Processing and the thickness of the door leaf
|
30-65mm
|
|
|
|
|||
|
Total power door lock slot motor
|
9kw 100Hz 6000r/min
|
|
|
|
|||
|
Doorway pages total power slot motor
|
4.5kw 100Hz 6000r/min
|
|
|
|
|||
|
The main handle diameter cutter
|
16mm
|
|
|
|
|||
|
Angle of the knife, the handle diamet
|
12.7mm
|
|
|
|
|||
|
Vacuuming mouth
|
100*2
|
|
|
|
|||
|
Net weight
|
2600kg
|
|
|
|
|||
|
Overall diamentions
|
5148*2848*1638mm
|
|
|
|
|||
Product packaging
Before each machine is shipped, we clean it and brush with oil to lubricate it. Packing with pearl cotton and plastic film can better protect the appearance of the machine. Packing with wooden cases can ensure that the machine can safely arrive in your country.
