Quick Details
-
Brand Name:
-
HRUI
-
Model Number:
-
HR-AFGM-2444S-400
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 Port Gigabit Managed PoE Switch
-
Model:
-
HR-AFGM-2444S
-
Connector Type:
-
24x 10/100/1000Mbps RJ45 Ports
-
Bandwidth:
-
56Gbps
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
PoE Feature:
-
Output power 15.4Watts (IEEE802.3af)
-
Voltage:
-
DC48V (Certified with CE,RoHS,CQC )
-
Transmission Distance:
-
100 Meters
-
Warranty:
-
36 months, life-long maintenance
-
Certification:
-
CE / FCC/ RoHs
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
64Gbps
-
Brand Name:
-
HRUI
-
Model Number:
-
HR-AFGM-2444S-400
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
24 Port Gigabit Managed PoE Switch
-
Model:
-
HR-AFGM-2444S
-
Connector Type:
-
24x 10/100/1000Mbps RJ45 Ports
-
Bandwidth:
-
56Gbps
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
PoE Feature:
-
Output power 15.4Watts (IEEE802.3af)
-
Voltage:
-
DC48V (Certified with CE,RoHS,CQC )
-
Transmission Distance:
-
100 Meters
-
Warranty:
-
36 months, life-long maintenance
-
Certification:
-
CE / FCC/ RoHs
Products Description

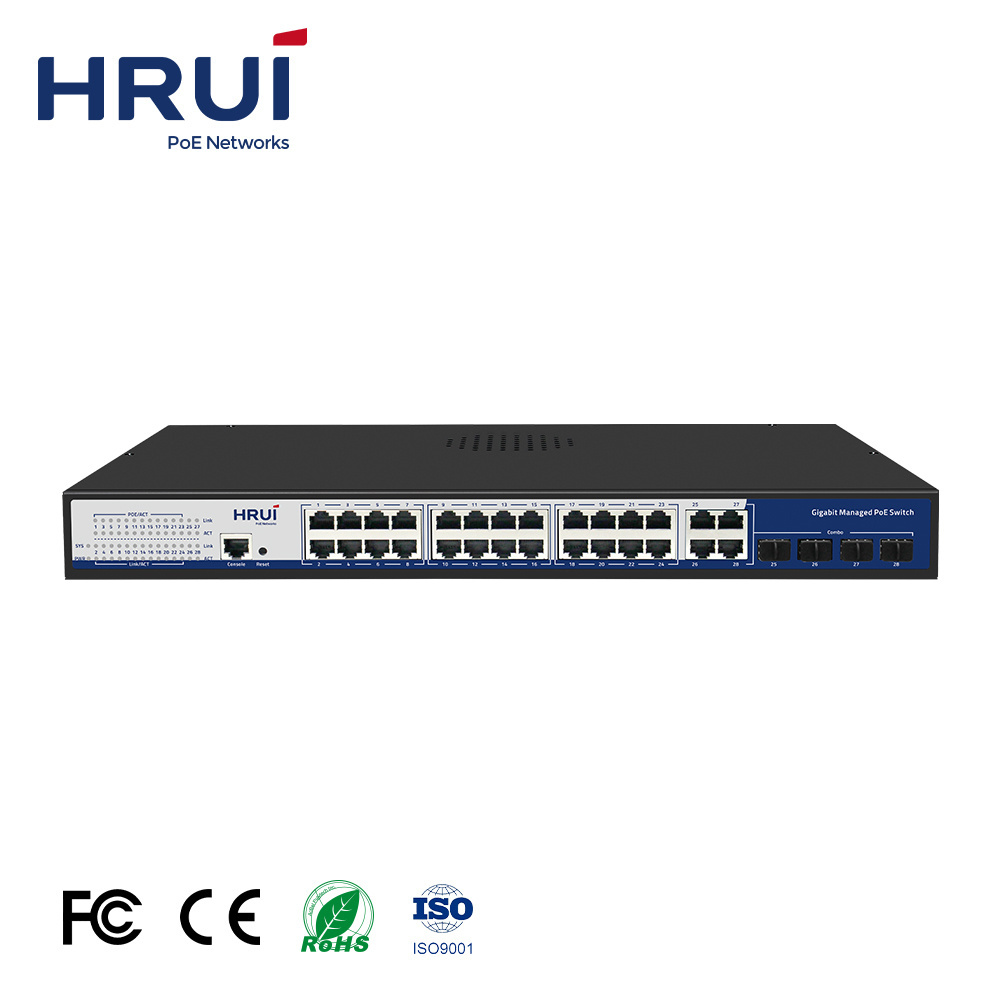

High performance and cost-effective commercial L2+ Managed PoE switch with 24* 10/100/1000Mbps PoE Ports + 4* 1000M RJ45 Ports(Combo) + 4*1000M SFP Ports (Combo) + 1 * RJ45 Console Port, complies with IEEE 802.3af/at standard, 400W PoE power budget, bandwidth is up to 56Gbps. It has powerful data processing capabilities and supports Routing, VLAN, Multicast, DHCP, Access Control, QoS, Storm Suppression and other business functions, with complete and reliable security control strategies and network protection mechanisms, stable and reliable operation, can be used as a access/aggregation layer switch, widely used in small and medium-sized enterprises high-security,high-intelligence communication network and security video surveillance system.
Main Features
Product Paramenters
|
I/O Interface
|
|
|
|
|
||||
|
Power Supply
|
Input: AC 100-240V, 50/60Hz
|
|
|
|
||||
|
Interface
|
24* 10/100/1000Mbps PoE Port
4* 1000M RJ45 Port(Combo)
4*1000M SFP Port (Combo)
1 * RJ45 Console Port
|
|
|
|
||||
|
Performance
|
|
|
|
|
||||
|
Switching Capacity
|
64Gbps
|
|
|
|
||||
|
Throughput
|
41.66Mpps
|
|
|
|
||||
|
Packet Buffer
|
4M
|
|
|
|
||||
|
Flash Memory
|
16MB
|
|
|
|
||||
|
DDR SDRAM
|
128MB
|
|
|
|
||||
|
MAC Address
|
8K
|
|
|
|
||||
|
Jumbo Frame
|
9.6Kbytes
|
|
|
|
||||
|
Transfer Mode
|
Store and forward
|
|
|
|
||||
|
MTBF
|
100000 hour
|
|
|
|
||||
|
Standard
|
|
|
|
|
||||
|
Network Protocols
|
IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i：10BASE-T Ethernet
IEEE 802.3u：100BASE-TX Fast Ethernet
IEEE 802.3ab：1000BASE-T Gigabit Ethernet
IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3az：Energy Efficient Ethernet
IEEE 802.3ad：Standard method for performing link aggregation
IEEE 802.3x：Flow control
IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q：VLAN Bridge Operation
IEEE 802.1x：Client/Server Access Control and Authentication Protocol
IEEE 802.1d：STP
IEEE 802.1s：MSTP
IEEE 802.1w：RSTP
|
|
|
|
||||
|
PoE Protocol
|
IEEE802.3af (15.4W)
IEEE802.3at (30W)
|
|
|
|
||||
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
|
|
|
||||
|
Network Medium
|
10Base-T : Cat3、4、5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
|
|
|
|
||||
|
Fiber Media
|
Multi-mode Fiber: 50/125、62.5/125、100/140um
Single-mode Fiber: 8/125、8.7/125、9/125、10/125um
|
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
Certificate
|
CE, FCC, RoHS
|
|
|
|
||||
|
Environment
|
|
|
|
|
||||
|
Working Environment
|
Working Temperature：-10~50°C
Storage Temperature：-40~85°C
Working Humidity ：10%~90%，non-condensing
Storage Temperature：5%~90%，non-condensing
Working Height：Maximum10,000 feet
Storage heigh：Maximum 10,000 feet
|
|
|
|
||||
|
Indication
|
|
|
|
|
||||
|
LED Indicators
|
PWR (power supply) ,SYS (System), 1-24 PoE&ACT (PoE), 1-24 Link&ACT (Link&Act), 25-28 Link(Link), 25-28 Act (Act)
|
|
|
|
||||
|
DIP Switch
|
Reset
|
|
|
|
||||
|
Mechanical
|
|
|
|
|
||||
|
Structure Size
|
Product Dimension (L*W*H): 440* 280*44mm
Package Dimension (L*W*H): 500*365*85mm
N.W：3.9kg
G.W：4.6kg
|
|
|
|
||||
|
Packing Info
|
Carton MEAS：520*445*385mm
Packing Qty：5 units
Packing Weight：24KG
|
|
|
|
||||
|
Power Voltage
|
Input Voltage ：AC 100-240 V
Power supply：52V7.69A
|
|
|
|
||||
|
Package List
|
Switch 1 pcs
Power cord 1 pcs
User manual 1 pc
Warranty card 1 pc
Brackets 1 pair(Selectable)
|
|
|
|
||||
