Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Shunfu
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
depends on machine type
-
Weight:
-
depends on machine type
-
Toilet paper converting machine name:
-
manual tissue toilet paper slitting and rewinding sealing machine
-
final paper product:
-
toilet tissue paper without core
-
machine type:
-
semi-automatic type machine
-
Function:
-
make the jumbo roll tissue into (1-3 layers)
-
Color:
-
Customized Color
-
Jumbo roll raw material width:
-
900-4000mm
-
Machine Speed:
-
150-300m/min
-
Raw material jumbo roll paper gram:
-
16-30 gsm
-
Embossing unit (1set):
-
Steel to rubber roll embossing
-
Keyword:
-
manual paper slitting and rewinding machine
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
150 m/min
-
Max. workable width:
-
1200MM
-
Place of Origin:
-
China
-
Brand Name:
-
Shunfu
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
depends on machine type
-
Weight:
-
depends on machine type
-
Toilet paper converting machine name:
-
manual tissue toilet paper slitting and rewinding sealing machine
-
final paper product:
-
toilet tissue paper without core
-
machine type:
-
semi-automatic type machine
-
Function:
-
make the jumbo roll tissue into (1-3 layers)
-
Color:
-
Customized Color
-
Jumbo roll raw material width:
-
900-4000mm
-
Machine Speed:
-
150-300m/min
-
Raw material jumbo roll paper gram:
-
16-30 gsm
-
Embossing unit (1set):
-
Steel to rubber roll embossing
-
Keyword:
-
manual paper slitting and rewinding machine
-
Certification:
-
CE ISO

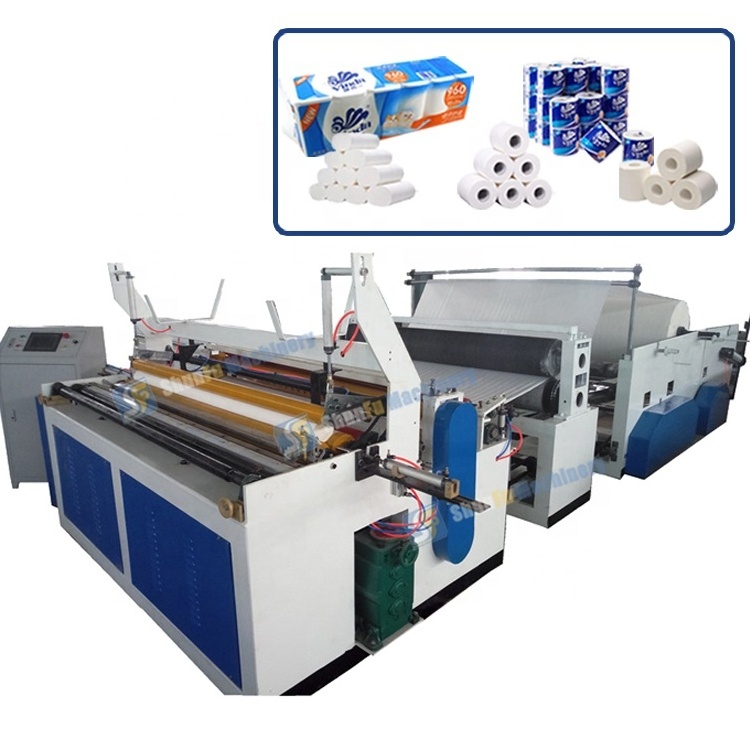

small manual tissue toilet paper roll slitting and rewinding sealing machine
-Toilet Tissue Paper Rewining Machine Introduction-
♥---T oilet tissue paper rewinding machine is used for rewinding paper,make the jumbo roll tissue paper into
two-layer,three
-layer or multi-layer small toilet paper,i
t can make toilet paper perforating,embossing,automatic glue,cuting,sealing in one machine.
♥---Toilet tissue paper rewinding machine also can make small toilet roll paper with core and without core.
♥--- There are full automatic machine type and semi-automatic machine type,you can choose one from them.
-Toilet Tissue Paper Machine Configuration Details-
|
Machine Name |
manual toilet tissue paper roll slitting and rewinding cutting machine price |
|
Machine Model |
1092type 1575type 1760type |
|
Raw Material Width |
≤1200mm ≤ 1800mm ≤2000mm |
|
Cutting paper method |
Sink cutting paper |
|
Finished Roll Diameter |
Φ90~φ150mm (Other size to be specified) |
|
Finished Roll Core Diameter |
φ32~φ50mm |
|
Raw Material Diameter |
1100mm≤ (Other size to be specified) |
|
Raw material jumbo roll paper gram |
16~30 gsm |
|
Raw Material Core Diameter |
φ76mm (Other size to be specified) |
|
Finishes paper length |
0~2000mm |
|
Perforation pitch |
3 Pieces of Anvil blades (115mm) Other size to be specified |
|
Machine Speed |
0~120m/min |
|
Programming Controller |
PLC |
|
Unwinding Unit |
2 |
|
Loading jumbo roll |
Manual |
|
Air-system |
3HP air compressor, min pressure 5kg/cm2pa |
|
Power |
5.5KW |
|
Applicable base paper |
1-3ply |
|
Embossing unit (1set) |
Steel to rubber roll |
|
Voltage |
380V 50HZ |
-Toilet Tissue Paper Rewinding Machine Feature-
♥---1. Automatic perforation (dotted line), slitting and rewinding are completed at one time
♥
---2
. can do machine type depends on customer's requirements.
♥---3
. The embossing picture is obviously clear, embossing style can be designed according to customer needs.
♥---4. Sink cutting paper
- Toilet Paper Rewinding Machine Configuration-
-Embossing Roller Pattern Choices -
Tips:For the pattern,you can choose from the followings,we also can do depends on your requirements.
-Toilet Paper Rewining Machine Packing &Loading Details-
1.Toilet Paper Rewinding Machine will be packaged according to their shapes, weight, transport distance and transport modes .
2.We can help customer to book shipping space and arrange shipping as well !
(1). Sea transportation is from qingdao seaports or other ports.
(2). The delivery time is decided by your needed machines or machine parts. But it also follows your needs.
In order to provide better service,plz provide us detailed requirement for toilet paper rewinding machine
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
| No. | Questions | Further Questions |
| 1. | What the jumbo roll tissue paper width do you use? | 900-3600mm,other width size can be customized. |
| 2. | Do you need with paper core or without paper core? | If with paper core,you want paper core machine or not? |
| 3. | Do you want semi-automatic or full automatic machine? | If full automatic type,do you need small single roll packing? |
♥Tips♥ (Jumbo roll width)
In order to confirm which type machine you will be fit for you,so need tell me tissue jumbo roll width you will use.
In normally,1575 type &1880 type machine are widely used,of course,final machine type up to your equirements.
♥Tips♥ (Semi-automatic type or full automatic type )
1.For rewinding machine type,you want semi-automatic or full automatic?
2.If you want full automatic type,for small single roll packing machine,you need or not,plz tell me.
-Related Machines-
The toilet tissue paper machine processing machine(machine from jumbo roll to final paper),in addition to toilet paper rewinding machines, there are other related machines:napkin paper machine line,handerchief paper machine line,facial tissue paper machine line.If you want to know more,PLZ contact me.
-Toliet Tissue Paper Machine Installation Cases-
There are too many toilet paper rewiding machine case to show,here just list these cases for your references.
