Quick Details
-
Voltage:
-
220V/380V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GH
-
Dimension(L*W*H):
-
1700mm*650mm*1550mm
-
Weight:
-
160 KG
-
Machinery Capacity:
-
5000 pcs 1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS 304 Stainless Steel
-
Power:
-
1150W
-
Label accuracy:
-
1mm Error
-
Labeling type:
-
flat page labeling
-
Labeing speed:
-
100 bags/minute
-
Service:
-
OEM/ODM
Quick Details
-
Application:
-
APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
-
Packaging Type:
-
box/bottle
-
Packaging Material:
-
Glass, Metal, Paper, Plastic, Wood
-
Voltage:
-
220V/380V/110V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GH
-
Dimension(L*W*H):
-
1700mm*650mm*1550mm
-
Weight:
-
160 KG
-
Machinery Capacity:
-
5000 pcs 1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS 304 Stainless Steel
-
Power:
-
1150W
-
Label accuracy:
-
1mm Error
-
Labeling type:
-
flat page labeling
-
Labeing speed:
-
100 bags/minute
-
Service:
-
OEM/ODM
Product Overview

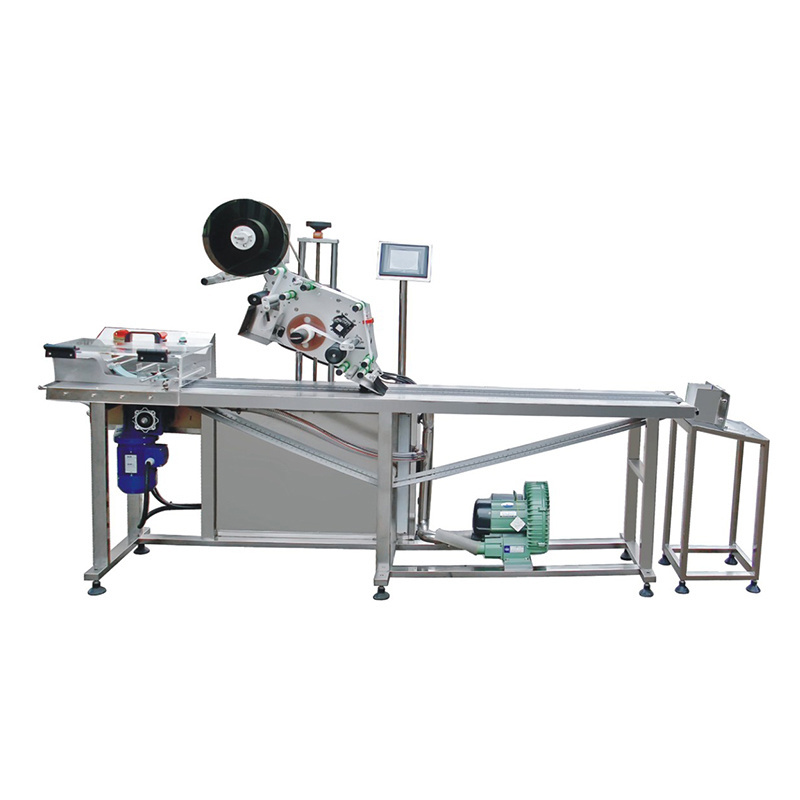

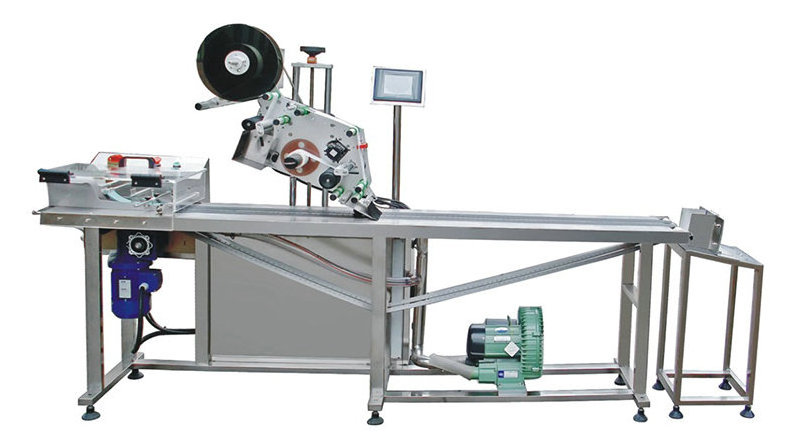

automatic self-adhesive paging labeling machine card labeling machine flat labeling machine
Automatic self-adhesive pager labeling machine designed for automatic material labeling of flat materials. It can meet the
labeling of various cards, PE bags, anti-static bags and paper-like items, and is suitable for labeling of various unformed
cartons, brochures, cards, clothing tags, etc.
labeling of various cards, PE bags, anti-static bags and paper-like items, and is suitable for labeling of various unformed
cartons, brochures, cards, clothing tags, etc.
PRODUCT SPECIFICATIONS
|
Item
|
automatic self-adhesive flat labeling machine
|
|
Power
|
850w(with step motor), 1150w(with servo motor)
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Voltage
|
220v 50hz
|
|
Labeling precision
|
±1mm
|
|
Labeling speed
|
10-100pcs/min
|
|
Inner dia./Outer dia. of label roll
|
76mm/280mm
|
|
Label size
|
length:10-250mm, width:20-150mm
|
|
Product size
|
length:40-380mm, width:40-350mm, thickness: 0.1-3mm
|
Application
