Quick Details
-
Brand Name:
-
MASCERA
-
Color:
-
Black
-
Size:
-
Customers' Requests
-
Shape:
-
Round
-
Usage:
-
Industry Usage
-
Density:
-
3.12g/cm3
-
Vickers Hardness:
-
25Gpa
-
Flexural Strength:
-
400Mpa
-
Max.Working Temperature:
-
1500℃
Quick Details
-
Material:
-
Silicon Carbide
-
Place of Origin:
-
China
-
Model Number:
-
N/A
-
Brand Name:
-
MASCERA
-
Color:
-
Black
-
Size:
-
Customers' Requests
-
Shape:
-
Round
-
Usage:
-
Industry Usage
-
Density:
-
3.12g/cm3
-
Vickers Hardness:
-
25Gpa
-
Flexural Strength:
-
400Mpa
-
Max.Working Temperature:
-
1500℃
| Tolerance for linear dimensions: | ±0.002mm at best | Straightness: | 0.02mm at best | |
| Tolerance for angular dimensions: | ±0°10' at best | Minimum hole diameter: | 0.5mm | |
| Surface roughness: | Ra0.05m at best | Minimum internal thread: | M2 | |
| Concentricity: | 0.02mm at best | Maximum external thread: | M20 | |
| Cylindricity: | 0.02mm at best | Available thread type: | Metric, UNC/UNF, BSW | |
| Flatness: | 0.02mm at best | Available surface finish: | as fired, grinding, lapping, polishing, metallization, glazed | |
| Parallelism: | 0.02mm at best |
|
Product Name
|

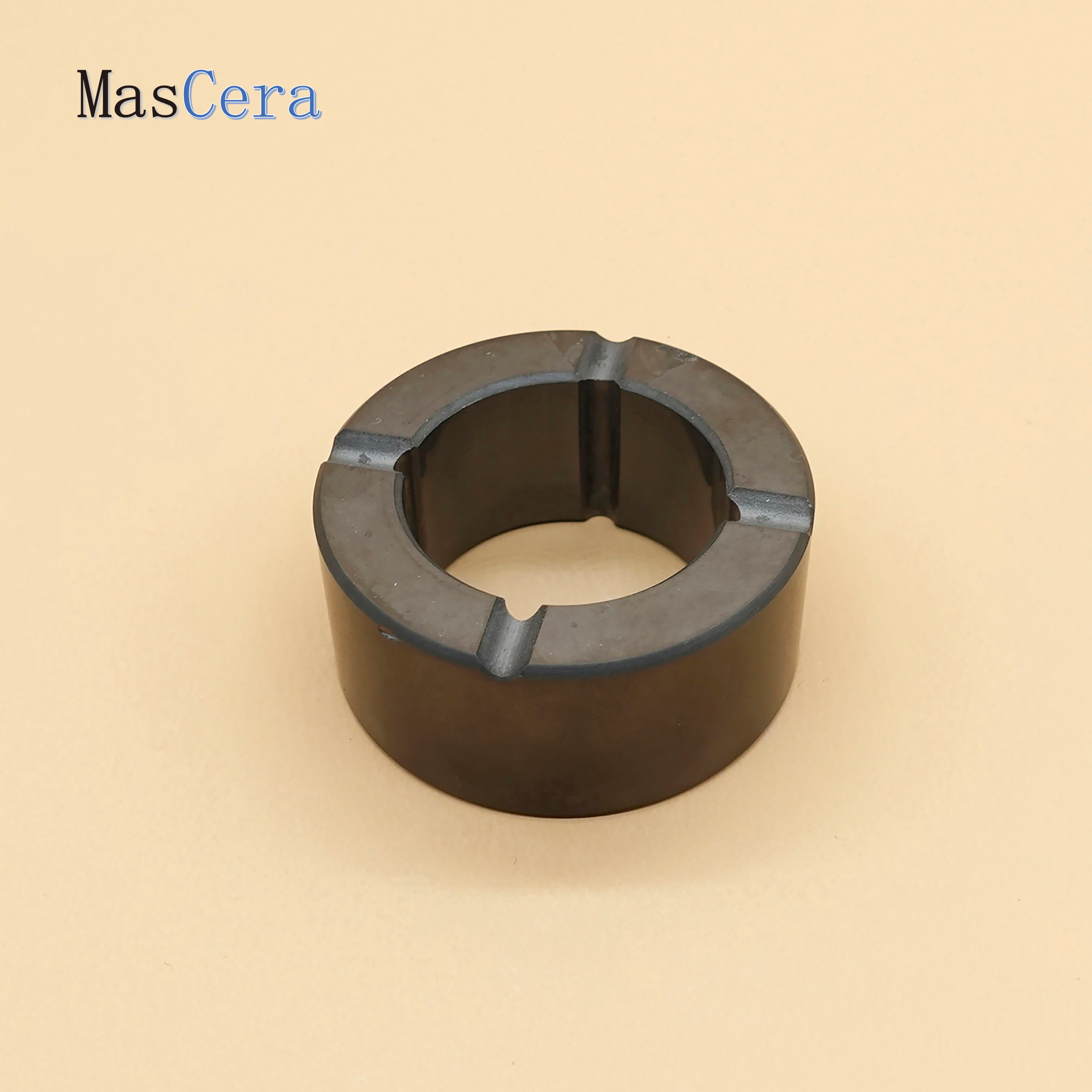

Low Weight&Ultra Wear Resistance SSiC Sintered Carbide Ceramic Bushing/Sleeve/Bearing for Pump |
|
Material
|
Silicon carbide ceramic/SiC ceramic
|
| size | Customized size available |
| Shape | Ceramic parts |
|
Color
|
Black
|
| Surface roughness | Fine grinding or polishing |
|
Product Feature
|
Wear resistant ceramic parts
|
Non-oxide ceramic, silicon carbide ceramic (SiC) is an superhard material which has moh's hardness up to 9.5. Silicon carbide ceramic not only has excellent mechanical properties at room temperature, such as high bending strength, excellent oxidation resistance, good corrosion resistance, high wear resistance and low friction coefficient, but also outstanding mechanical properties (strength, creep resistance) at high temperature, the high temperature strength can be maintained up to 1600°C, which is the best among all ceramic materials. The oxidation resistance of silicon carbide ceramic is also the best among all non-oxide ceramics.
Silicon carbide ceramic is widely used in automobile, mechanical and chemical industry, semiconductor, space technology, microelectronics, energy, papermaking and other fields, has become an ideal material for severe conditions of high temperature and pressure, corrosion and abrasion.
| Item | Unit | Technical parameters | |
| Materail | -- | SSiC | SiSiC |
| Color | -- | Black | Black |
| Density | g/cm 3 | 3.12 | 3.06 |
| Water Absorption | % | 0 | 0 |
| HRA | -- | ≥92 | ≥90 |
| Modulus of Elasticity | Gpa | 400 | 350 |
| Flexural Strength (@R.T.) | Mpa | 359 | 300 |
| Compressive Strength (@R.T.) | Mpa | ≥2200 | 2000 |
| Thermal Conductivity (@R.T.) | W/Mk | 110 | 100 |
|
Coefficient Of Thermal Expansion
(20-1000℃) |
10 -6 /℃ | 4 | 4 |
| Max. Working Temperature | ℃ | 1600 | 1300 |
