Quick Details
-
Voltage:
-
380, 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
zhenjia
-
Model Number:
-
ZJ-TRA-1
-
Dimensions(L*W*H):
-
1080*1400*1850
-
Weight:
-
320KG, 450KG
-
Platen Size:
-
40*30CM
-
Application:
-
fabric embossing
-
Working table:
-
200*300mm
-
Hydraulic cylinder:
-
1-3T Adjustable
-
Keyword:
-
embossing fabric machine
-
Upper pressure plate size:
-
200*300mm
-
Operation method:
-
Dual-head operation at same time
-
Heating mode:
-
Upper and lower heating
-
Machine dimension:
-
1400*1000*1800mm
-
Certification:
-
CE
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
single color
-
Voltage:
-
380, 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
zhenjia
-
Model Number:
-
ZJ-TRA-1
-
Dimensions(L*W*H):
-
1080*1400*1850
-
Weight:
-
320KG, 450KG
-
Platen Size:
-
40*30CM
-
Application:
-
fabric embossing
-
Working table:
-
200*300mm
-
Hydraulic cylinder:
-
1-3T Adjustable
-
Keyword:
-
embossing fabric machine
-
Upper pressure plate size:
-
200*300mm
-
Operation method:
-
Dual-head operation at same time
-
Heating mode:
-
Upper and lower heating
-
Machine dimension:
-
1400*1000*1800mm
-
Certification:
-
CE
Introduction and advantages
Product Description

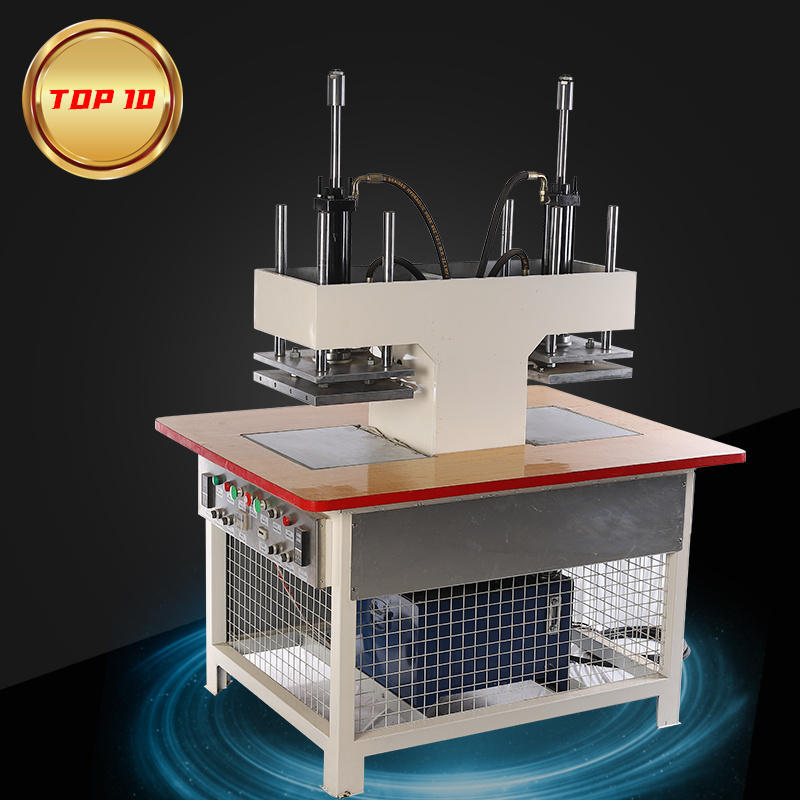

Clothes logo embossing machine
embossing samples:
Parameter
|
Model
|
ZJ-TRA3
|
|
Power
|
8KW
|
|
Voltage
|
380V
|
|
Upper pressure plate size
|
200*300mm
|
|
Working table
|
200*300mm
|
|
Heating mode
|
Upper and lower heating
|
|
Operation method
|
Dual-head operation at same time
|
|
Hydraulic cylinder
|
1-3T Adjustable
|
|
Temperature control method
|
Electronic temperature control
|
|
Temperature control range
|
0-300°C Adjustable
|
|
Dimension
|
1400*1000*1800mm
|
|
Machine weighe
|
450KG
|
Part of the details
1. With hydraulic pressure as the power, the descending speed is adjustable, and the hydraulic up/down speed is adjustable.
2. The two stations of the double station model can be operated at the same time.
3. The hydraulic stroke can be adjusted to produce embossed garments because of the lower limit.
4. The mechanical start mode has a double button switch to ensure the safety of production personnel.
5. The oil pressure is equipped with anti-rotation double guide rods to make the work more precise; in addition, the oil pressure output can be adjusted by the pressure regulating valve.
6. Independent heating function for upper and lower molds, automatic constant temperature, temperature error plus or minus 1 degree.
7. Adjustable temperature: 0-300 degrees room temperature can be adjusted arbitrarily up and down independent temperature control.
8. Frame features: The internal use of four-column structure, the hydraulic output is stable, the machine does not raise its head, and the whole machine body is painted with powder.
Our company
Foshan Zhenjia Machinery Co., Ltd.
Zhenjia Machinery Co. ,Limited has specialized in high frequency welding machine and automatic equipment technology for 19 years,we are a mainly of Research and development,Producing,sales and after- sales manufacturers.
We have high -precision molds CNC processing machine and other equipment for customers to produce high frequency mold,ultrasonic mold and blister bakelite molds superior services.
Our cooperation manufacturers have Hisense,Shenzhen DJI- Innovations,Foshan Electrical lighting Company and other well-known enterprise.
We have high -precision molds CNC processing machine and other equipment for customers to produce high frequency mold,ultrasonic mold and blister bakelite molds superior services.
Our cooperation manufacturers have Hisense,Shenzhen DJI- Innovations,Foshan Electrical lighting Company and other well-known enterprise.
Cooperative Customers and Exhibition
FAQ
Q1.Are there any machine instructions?
A1:We will use video and written instructions for the use of the machine.
Q2. Why our price is so lower?
A2: we are one factory, we seek for long time cooperation. no just one time. Keep little profit, also we are glad to do business with every customer.
Q3. How to ensure the cargo quality?
A3: The main control of the machine are using Europe, the United States and Japan imported components, with high stability, all systems are self-developed. All machines hold the CE certification issued by the European Union countries. Machinery exported to Southeast Asia, the Middle East, Europe and the United States, Nepal and other countries and regions.
Q4. The warranty of machine?
A4: All machine will be one year warranty .
Q5. It is the first time that i order this machine , How can i operation it?
A5: Don't worry , We will send you manual , operation video ,calling or E-mail to you This is a simple machine , it is very easy to operation it .
Q6. How can I have a Proforma Invoice or Quotation?
A6: PI and quotation we will send,i send the quotation for you when i quote the price,if you confirmed the order,i will send the PI for you.
Q7. Is this machine need mould ?
A7: Yes, it is. any machine all need to make the molding can work.
