Electrostatic powder coating equipment

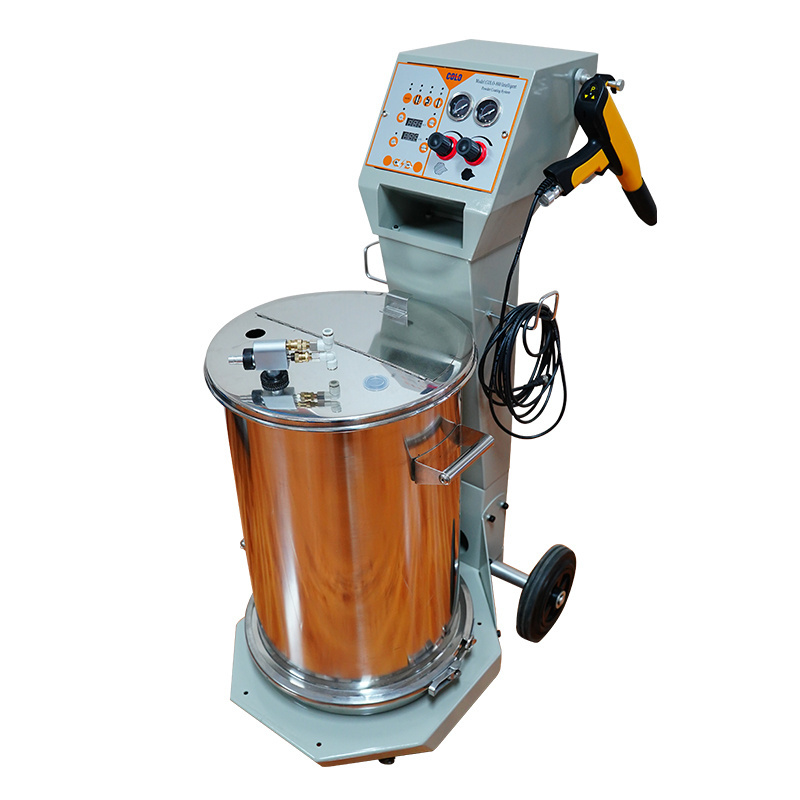

This intelligent Digital powder coating machine COLO-800D
This model use the COLO-iflex model trolley and hopper
The process of the coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces.
Character: Controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts
This machine is suitable for the coating of simple, flat workpieces
This machine is suitable for the coating workpieces with complicated shapes

Brief Introduction

The process of the powder coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces

Specification

0-100 Digital Adjustable KV
Fully Adjustable Amperage
With three setting program,for flat shape workpiece,complicated shape workpiece,recoating,easy for operation.
Fully Adjustable Air for Pump on Pressure, Dosage and Nozzle Rinsing Air.
Comes with Full Array of Nozzle Assortment.
Field Tested and Proven to operate in the toughest environments.
Comes with different array of delivery systems:
Hope Feed - 55L
Because this system is specially balanced for the maximum spray capability with
the Smoothest Finish Possible.

Techincal data:

Electrical data
Mains input voltage	100-240 VAC
Operating frequency	50-60 Hz
Input power	50W
Nominal output voltage (to the gun)	max. 12 V
Nominal output current (to the gun)	max. 1 A
	IP54
Ambient temperature range	0°C - +40°C (+32°F - +104°F)
Max. operating temperature	85°C (+185°F)
Approvals	CE
Pneumatical data
Compressed air connection	1/4" male quick release
Max. input pressure	10 bar / 145 psi
Min. input pressure (while unit in operation)	6 bar / 87 psi
Max. water vapor content of the compressed	air 1.3 g/m³
Max. oil vapor content of the compressed air	0.1 mg/m³
Packing Dimensions
Length	120CM
Width	79CM
Height	73CM
Weight	approx. 55kgs

at same time with two different  models

COLO-800T- C (cup gun )

colo-800D -H( mini hopper model )

Powder coating is a type of coating that is applied as a free-flowing, dry powder. The main difference between a conventional liquid paint and a powder coating is that the powder coating does not require a solvent to keep the binder and filler parts in a liquid suspension form. The coating is typically applied electrostatically and is then cured under heat to allow it to flow and form a "skin". The powder may be a thermoplastic or a thermoset polymer . It is usually used to create a hard finish that is tougher than conventional paint. Powder coating is mainly used for coating of metals , such as "whiteware," aluminium extrusions , and automobile and bicycle parts. Newer technologies allow other materials, such as MDF ( medium-density fibreboard ), to be powder coated using different methods.

The powder coating process involves three basic steps:

1. Part preparation or the pre-treatment
2. The powder application
3. Curing

COLO Powder Coating Systems is a top supplier of powder coating systems and powder coating equipment including automated equipment, spray booths and spare parts for itw gema , wagner , nodrson , kci famous brand in china.
