Quick Details
-
Model Number:
-
YS-T301
-
Place of Origin:
-
China guangdong
-
Brand Name:
-
Meteorite
-
Theory:
-
traffic flow monitoring radar,
-
Radar transmitting frequency:
-
80GHz
-
Speed accuracy:
-
±0.36km/h
-
Distance measurement accuracy:
-
± 0. 60m
-
Cycle period:
-
80ms
-
Power Consumption:
-
≤4W
-
Operating temperature:
-
-40℃~+70℃
Quick Details
-
Use:
-
traffic flow monitoring radar
-
Mounting Type:
-
Easy installation
-
Description:
-
Easy installation, 80GHz Traffic Flow Radar
-
Model Number:
-
YS-T301
-
Place of Origin:
-
China guangdong
-
Brand Name:
-
Meteorite
-
Theory:
-
traffic flow monitoring radar,
-
Radar transmitting frequency:
-
80GHz
-
Speed accuracy:
-
±0.36km/h
-
Distance measurement accuracy:
-
± 0. 60m
-
Cycle period:
-
80ms
-
Power Consumption:
-
≤4W
-
Operating temperature:
-
-40℃~+70℃
Product Description

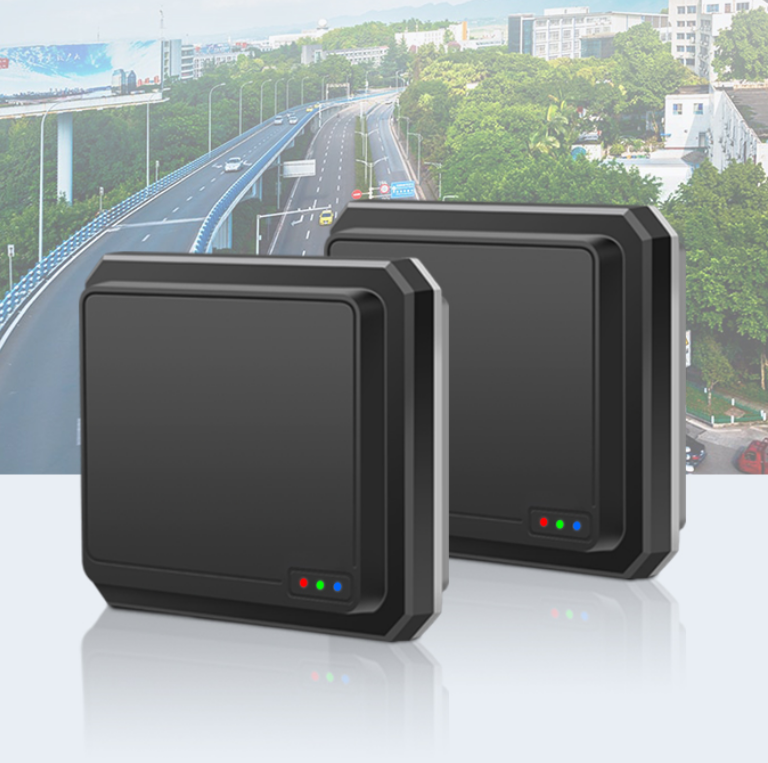

YS-T301
80GHz traffic flow radar detects the relative distance, relative speed and angle of the target by emitting dual-beam fan-shaped microwaves.
YS-T301
traffic flow radar adopts highly integrated MMIC scheme, dual beam design, compact structure, extremely low power consumption (4W), maximum detection distance up to 280m, pitch angle can be calibrated according to installation height, and can be quickly deployed to various road application scenarios.
Specification
|
Measurement Performance General Target (Non-Reflective Target)
|
|
|
||
|
Modulation mode
|
|
FMCW
|
||
|
Ranging range
|
|
1.2~280m@0° for LRR
1.2 ~ 50m @ ± 45° for MRR |
||
|
Range measurement resolution
|
Point target,
non-tracking |
1.2 m, two objects can be distinguished under the condition that the resolution is 1.5 to 2 times
|
||
|
Distance measurement accuracy
|
|
± 0. 60m
|
||
|
Angle range
|
|
± 11°@ ± 6 dB
|
||
|
Angular accuracy
|
|
0.2°@ 0°
1°@ ± 45° |
||
|
Speed range
|
|
0km/h~+ 250km/h (+ means off target,-means near target)
|
||
|
Velocity resolution
|
|
±0.43km/h
|
||
|
Speed accuracy
|
|
±0.36km/h
|
||
|
Cycle period
|
|
80ms
|
||
|
Pitch beam
|
-6dB
|
13°
|
||
|
Azimuth beam
|
-6dB
|
90° for MRR
22° for LRR |
||
|
Operating Conditions
|
|
|
||
|
Radar transmitting frequency
|
Compliance with ETSI&FCC
|
80GHz~81GHz
|
||
|
Transmission capacity
|
Average/Peak EIRP
|
29.8dBm
|
||
|
Power supply
|
|
12 VDC
|
||
|
Power Consumption
|
|
≤4W
|
||
|
Weight
|
|
650g
|
||
|
Operating temperature
|
|
-40℃~+70℃
|
||
|
Storage temperature
|
|
-40℃~+85℃
|
||
|
Level of protection
|
|
IP66
|
||
|
Interface Type
|
|
|
||
|
Interface
|
|
RJ45/RS485
|
||
Traffic Flow Radar Dimension Diagram
Traffic Flow Statistics
YS-MWR301 80GHz traffic flow radar can simultaneously detect the distance, speed and angle information of 4~6 lanes and 128 target vehicles, and the maximum detection distance of radar can reach 280 meters.
The main application scenarios are:
