Quick Details
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-65-8GT-IP67
-
Place of Origin:
-
China
-
Input voltage:
-
DC12~58V/66-110V (Non-PoE)
-
Operating temperature:
-
-40 °C~ +75°C
-
level of protection:
-
IP67
-
Bypass:
-
2 Copper bypass port
-
Jumbo Frame:
-
10K Bytes
-
Warranty:
-
5 years
-
Dimensions:
-
287X182X65.7mm (W*L*H)
-
Installation:
-
DIN-rail
-
Surge protection:
-
4KV~6KV
-
Anti-static protection:
-
8KV~15KV
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
26G
-
Brand Name:
-
KEEPLINK
-
Model Number:
-
KP-9000-65-8GT-IP67
-
Place of Origin:
-
China
-
Input voltage:
-
DC12~58V/66-110V (Non-PoE)
-
Operating temperature:
-
-40 °C~ +75°C
-
level of protection:
-
IP67
-
Bypass:
-
2 Copper bypass port
-
Jumbo Frame:
-
10K Bytes
-
Warranty:
-
5 years
-
Dimensions:
-
287X182X65.7mm (W*L*H)
-
Installation:
-
DIN-rail
-
Surge protection:
-
4KV~6KV
-
Anti-static protection:
-
8KV~15KV

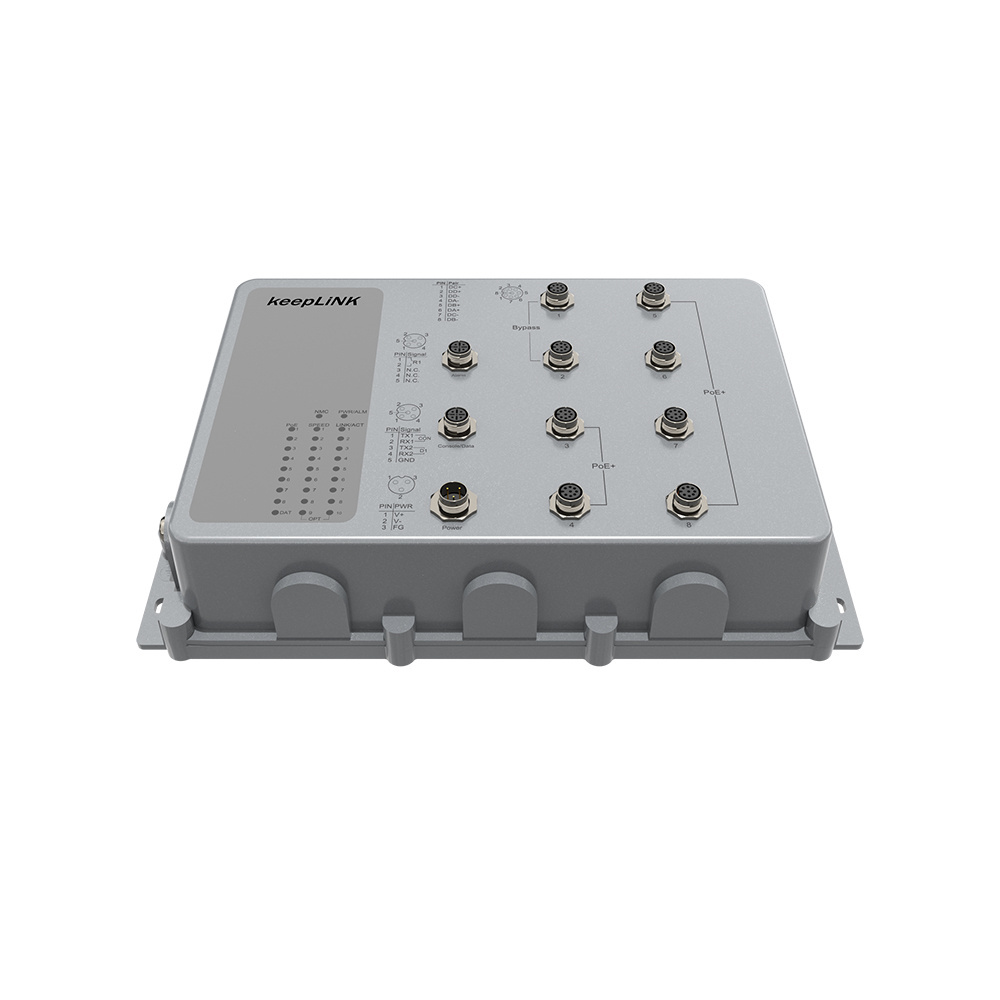

Industrial grade gigabit waterproof
8 port unmanaged switch IP67
|
Fixed Port |
|
|
Interface |
8*10/100/1000Base-T, M12 connector |
|
L2 Switching |
|
|
Switching capacity |
26Gbps |
|
Packet forwarding rate |
19.34Mpps |
|
MAC address table |
16K |
|
Forwarding delay |
<5us |
|
Buffer |
2M |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo frame |
Support 10Kbytes |
|
WatchDog |
Support |
|
Bypass |
Copper port 1~2 |
|
Electrical Specifications |
|
|
Input voltage |
DC12~58V/DC66~160V |
|
Power consumption |
Without PoE<6W |
|
Mechanical Structure |
|
|
Product size |
287X182X65.7mm( W*L*H) |
|
Weight |
1.2KG |
|
Mounting |
DIN-rail |
|
EMC & Ingress Protection |
|
|
IP level |
IP67 |
|
Surge protection of Power |
IEC 61000-4-5 Level X (6KV/6KV) (8/20us) |
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) |
|
RS |
IEC 61000-4-3 Level 3(10V/m) |
|
EFI |
IEC 61000-4-4 Level 3(1V/2V) |
|
CS |
IEC 61000-4-6 Level 3(10V/m) |
|
PFMF |
IEC 61000-4-8 Level 4(30A/m) |
|
DIP |
IEC 61000-4-11 Level 3(10V) |
|
EMI |
Class A |
|
ESD |
IEC 61000-4-2 Level 4(8K/15K) |
|
Free fall |
0.5m |
|
Environment |
|
|
Operating temperature |
-40℃~ +75℃ |
|
Storage temperature |
-40℃~ +85℃ |
|
Relative humidity |
5%~95% (Non-condensing) |
|
Accessories |
Equipment, Terminals, Instruction, Certificate, Power adapter(optional) |
