L18 Loop SS316 Inox Cable Wire Ferrule Mesh Flexible Stainless Steel Rope Net

L18 Loop SS316 Inox Cable Wire Ferrule Mesh Flexible Stainless Steel Rope Net

FOB Reference Price: Get Latest Price

≥1 Square meters

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Model Number:: Rope Ferrule Mesh

Brand Name:: Candurs

Processing Service:: OEM ODM

Material Standard:: AISI 316.EN 1.4401

Surface treatment:: Mill

Test:: EN1263.1.2014.Force Test

Certification:: CE.Material Certs

Quick Details

Material:: STAINLESS STEEL WIRE

Type:: Rope Mesh

Application:: Protecting Mesh

Place of Origin:: Guangdong, China

Model Number:: Rope Ferrule Mesh

Brand Name:: Candurs

Processing Service:: OEM ODM

Material Standard:: AISI 316.EN 1.4401

Surface treatment:: Mill

Test:: EN1263.1.2014.Force Test

Certification:: CE.Material Certs

Advantages :

Both loop ends suits the opening above 40 mm of flexible stainless steel wire rope mesh.sometimes it can be manufactured one side with loop, another side with eyelet design.

Easily install the mesh on frames.

Custom mesh for railing &balustrade infill,green wall,safety net.zoo animal enclosure.fence etc.

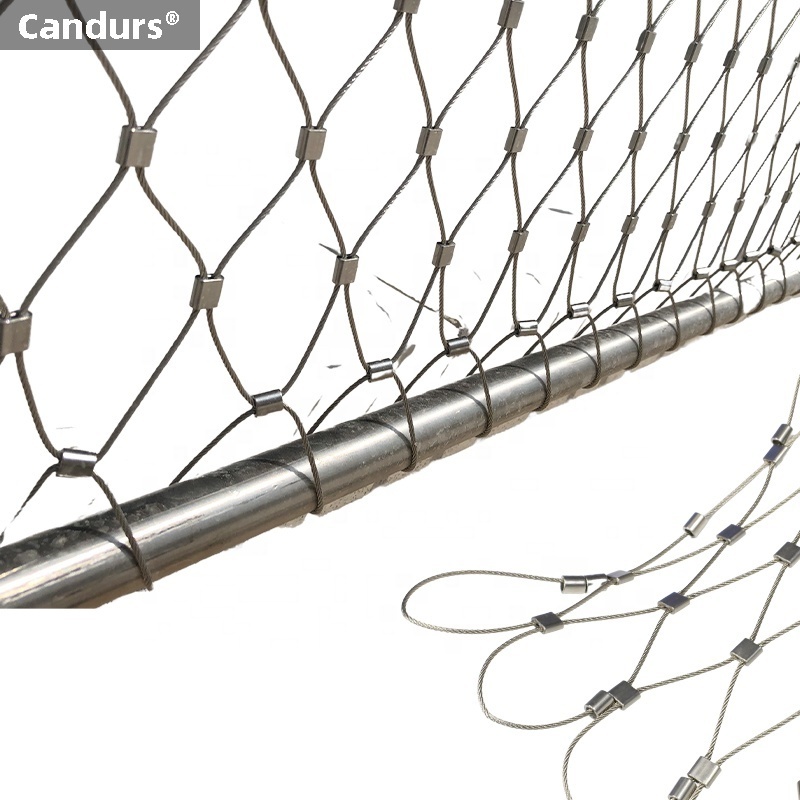

Rope Ferrule Mesh Structure

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Wire Rope

All rope ferrule mesh is using top quality 316 grade stainless steel wire rope made from SOUTH KOREA. Well-know architectural wire
rope supplier of world.
Advantages: stable, bright, tight stucture, corrsion resistant, high break loading capacity.

Wire Rope Ferrule

All rope ferrule mesh is using seamless rope ferrule, oval shape, 316L grade stainless steel. Suitable ferrule dimension design
bring safety and good visual.
Advantages: seamless, smooth surface, high break loading capacity, corrosion resistant.

Border Pattern

Border design is necessary that helps stainless steel rope ferrule mesh end design installation easy and quick. It can be
prefabricated at factory, install directly,without other works. Popular eyelet end, loop ends and other different end design etc.

Unlimited Size

Manufacturing very large wire rope mesh width and length is possible, Just consider the self weight suits installation and
transportation. Candurs is experienced in manufacturing long length. such as 150m long without connection.

What need to know for design ?

316 grade stainless steel rope mesh is high performance cost ratio.
Heavier wire rope (d) offers higher break loading capacity.
The smaller opening (OW) of mesh cost expensive.
Border solution of mesh is necessary for installation.
Exact piece size of mesh can be manufactured.
Quality of mesh affects visual effects, using life. safety. maintenance cost etc.

Possible diamond direction.

Providing SS 316 wire rope mesh rectangular& irregular shape,extreme long length,tubular framesfor railing &balustrade
infill,green wall,safety net.zoo animal enclosure.fence etc.

Mesh For Zoo Fence, UAE

Vertical diamond.Top & Bottom Sides : Loop/Eyelet ends.
Left & Right Sides : Loose ferrule
CD1540

Mesh Fence, AU

Vertical diamond.Top & Bottom Sides : Loop ends.
Left & Right Sides : Loose ferrule
CD2050

Mesh For Balustrade, UK

Vertical diamond.Top & Bottom Sides : Loop ends.
Left & Right Sides : Loose ferrule
CD1550

Mesh Handrail, UAE

Vertical diamond.Top & Bottom Sides : Loop/Eyelet ends.
Left & Right Sides : Loose ferrule
CD1540

Possible diamond direction.

item	value
Place of Origin	China
	Guangdong
Material	STAINLESS STEEL WIRE
Type	Rope Mesh
Application	Protecting Mesh
Weave Style	Plain Weave
Technique	Woven
Model Number	Rope Ferrule Mesh
Brand Name	Candurs
Processing Service	OEM ODM
Material Standard	AISI 316.EN 1.4401
Surface treatment	Mill
Application	Architectural Mesh.Railing Mesh.Balustrade Mesh
Test	EN1263.1.2014.Force Test
Certification	CE.Material Certs
