Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XMK
-
Color:
-
White/black/blue/green color/light blue
-
Power (HP):
-
4HP
-
Nominal Capacity (W):
-
8800
-
Heat exchange area:
-
28
-
Fan Diameter (mm):
-
400
-
Fan Air Volume:
-
2*4200
-
Fan Power (W):
-
2*245
-
Fan Voltage (V):
-
380
-
Packing:
-
wooden case
-
Fan Quantity (set):
-
2
Quick Details
-
Type:
-
Heat Exchanger Tube
-
Application:
-
Heater Parts
-
Weight (KG):
-
25
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XMK
-
Color:
-
White/black/blue/green color/light blue
-
Power (HP):
-
4HP
-
Nominal Capacity (W):
-
8800
-
Heat exchange area:
-
28
-
Fan Diameter (mm):
-
400
-
Fan Air Volume:
-
2*4200
-
Fan Power (W):
-
2*245
-
Fan Voltage (V):
-
380
-
Packing:
-
wooden case
-
Fan Quantity (set):
-
2

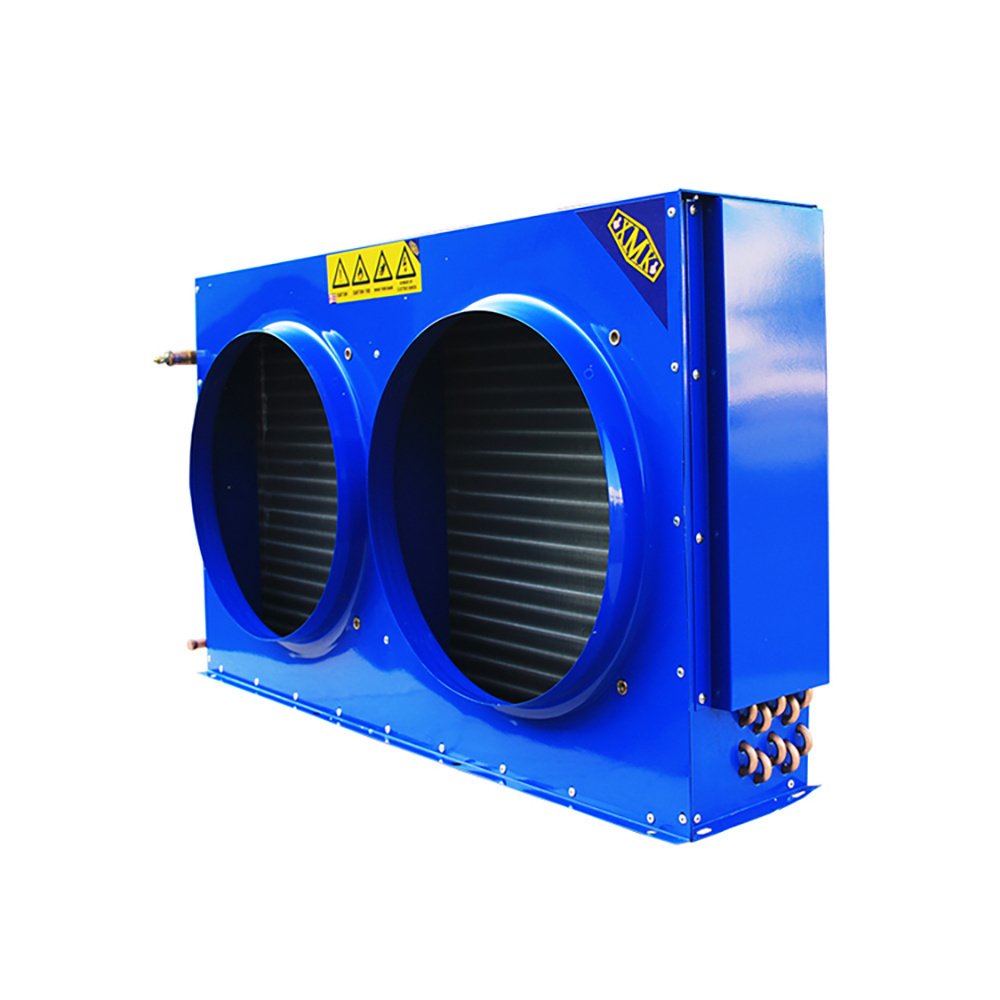

4HP XMK FNF-8.8/28 Cold Room Storage Mini Refrigerator Condenser
1. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
2. Mechanically expanded pipes with AL fins good heat transfer performance.
3. Air Cooled condenser have done 2.8 Mpa gas pressure and pollution clear before leave factory.
4. R22, R134A, R404A, R407C etc are optional.
5. Large air flow and low speed Built-in motor with low noise and nice looking.
6. It is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.
| XMK Condenser Data | ||||||||
| Model |
Power
(HP) |
Nominal Capacity
(W) |
Heat exchange area | Axial Fan | ||||
|
Quantity
(set) |
Diameter
(mm) |
Air Volume
(m³/h) |
Power
(W) |
Voltage
(V) |
||||
| FNF-1.8/9.8 | 1.5HP(S) | 1800 | 9.8 | 1 | 300 | 1460 | 115 | 220 |
| FNF-2.5/11.3 | 1.5HP(L) | 2500 | 11.3 | 1 | 350 | 2860 | 170 | 220 |
| FNF-2.8/13 | 2HP | 2800 | 13 | 1 | 350 | 2860 | 170 | 380 |
| FNF-4.4/15 | 2.5HP | 4400 | 15 | 1 | 350 | 2860 | 170 | 380 |
| FNF-5.5/18 | 3HP(S) | 5500 | 18 | 1 | 400 | 4150 | 270 | 380 |
| FNF-6.0/22 | 3HP(L) | 6000 | 22 | 1 | 400 | 4150 | 270 | 380 |
| FNF-8.8/28 | 4HP | 8800 | 28 | 1 | 400 | 4150 | 270 | 380 |
| FNF-10/42 | 5HP | 10000 | 42 | 1 | 500 | 6800 | 500 | 380 |
| FNF-12.9/49 | 6HP | 12900 | 49 | 1 | 500 | 6800 | 500 | 380 |
| FNF-7.2/24 | 3HP | 7200 | 24 | 2 | 350 | 2*2900 | 2*170 | 380 |
| FNF-8.8/28 | 4HP | 8800 | 28 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-9.0/35 | 5HP(S) | 9000 | 35 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-10.2/42 | 5HP(L) | 10200 | 42 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-15.2/50 | 6.5HP | 15200 | 50 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-19.2/60 | 7.5HP | 19200 | 60 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-21.5/66 | 8.5HP | 21500 | 66 | 2 | 400 | 2*4200 | 2*245 | 380 |
| FNF-24.2/88 | 10HP | 24200 | 88 | 2 | 500 | 2*6800 | 2*500 | 380 |
| FNF-36/120 | 15HP | 36000 | 120 | 2 | 500 | 2*6800 | 2*500 | 380 |
| FNF-24.2/88 | 10HP | 24200 | 88 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-36/130 | 15HP | 36000 | 120 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-38/140 | 15HP | 38000 | 140 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-42/150 | 20HP | 42000 | 150 | 4 | 400 | 4*4200 | 4*245 | 380 |
| FNF-50/180 | 25HP | 50000 | 180 | 4 | 500 | 4*6800 | 4*500 | 380 |
| FNF-60/210 | 30HP | 60000 | 210 | 4 | 500 | 4*6800 | 4*500 | 380 |
We have different color can choose:
