Quick Details
-
Brand Name:
-
Hongxiang
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Nylon
-
Color:
-
Black
-
Thread O.D.:
-
12mm
-
Thread Length:
-
9mm
-
Protection Level:
-
IP68(with O-ring)
-
Water inlet pressure:
-
>5 bar
-
Air Flow:
-
260ml/min
-
Accessory:
-
Silicone O-ring
Quick Details
-
Port Size:
-
M12x1.5
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
HX-BF-M12
-
Brand Name:
-
Hongxiang
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Nylon
-
Color:
-
Black
-
Thread O.D.:
-
12mm
-
Thread Length:
-
9mm
-
Protection Level:
-
IP68(with O-ring)
-
Water inlet pressure:
-
>5 bar
-
Air Flow:
-
260ml/min
-
Accessory:
-
Silicone O-ring

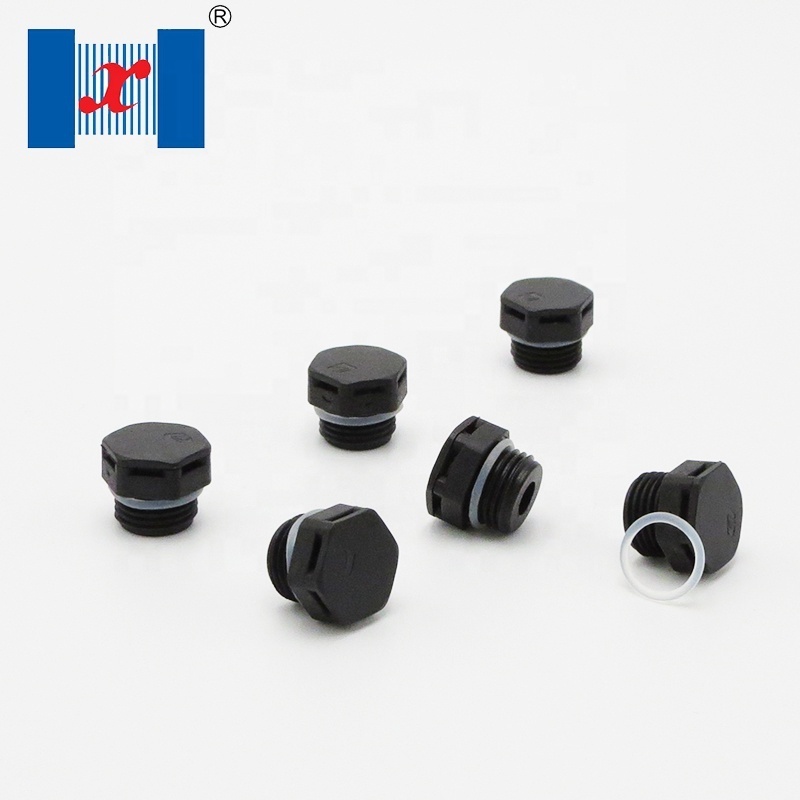

ECU or LED Lighting Breathable Waterproof Screw in Vent Plug M12x1.5
Product Description
Production Parameter
| Item | Air permeability |
Thread Diameter
(mm) |
GL
Thread Length (mm) |
Total Length
(mm) |
Spanner Size
(mm) |
Code |
| M5×0.8 | 60ML/Min | 5 | 6 | 11.6 | 11 | HX-PF-M5 |
| M6×0.75 | 60ML/Min | 6 | 6 | 11.6 | 11 | HX-PF-M6 |
| M10×1 | 182ML/Min | 10 | 9 | 17 | 17 | HX-PF-M10 |
| M12×1.5 | 260ML/Min | 12 | 9 | 17 | 17 | HX-PF-M12 |
| M16×1.5 | 748ML/Min | 16 | 9 | 22 | 22 | HX-PF-M16 |
