Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHEK
-
Voltage:
-
1 PHASE ,220V,50HZ
-
Dimension(L*W*H):
-
4.3mx4.8mx1.9m
-
Weight:
-
3500 kg
-
Marketing Type:
-
New Product
-
Product name:
-

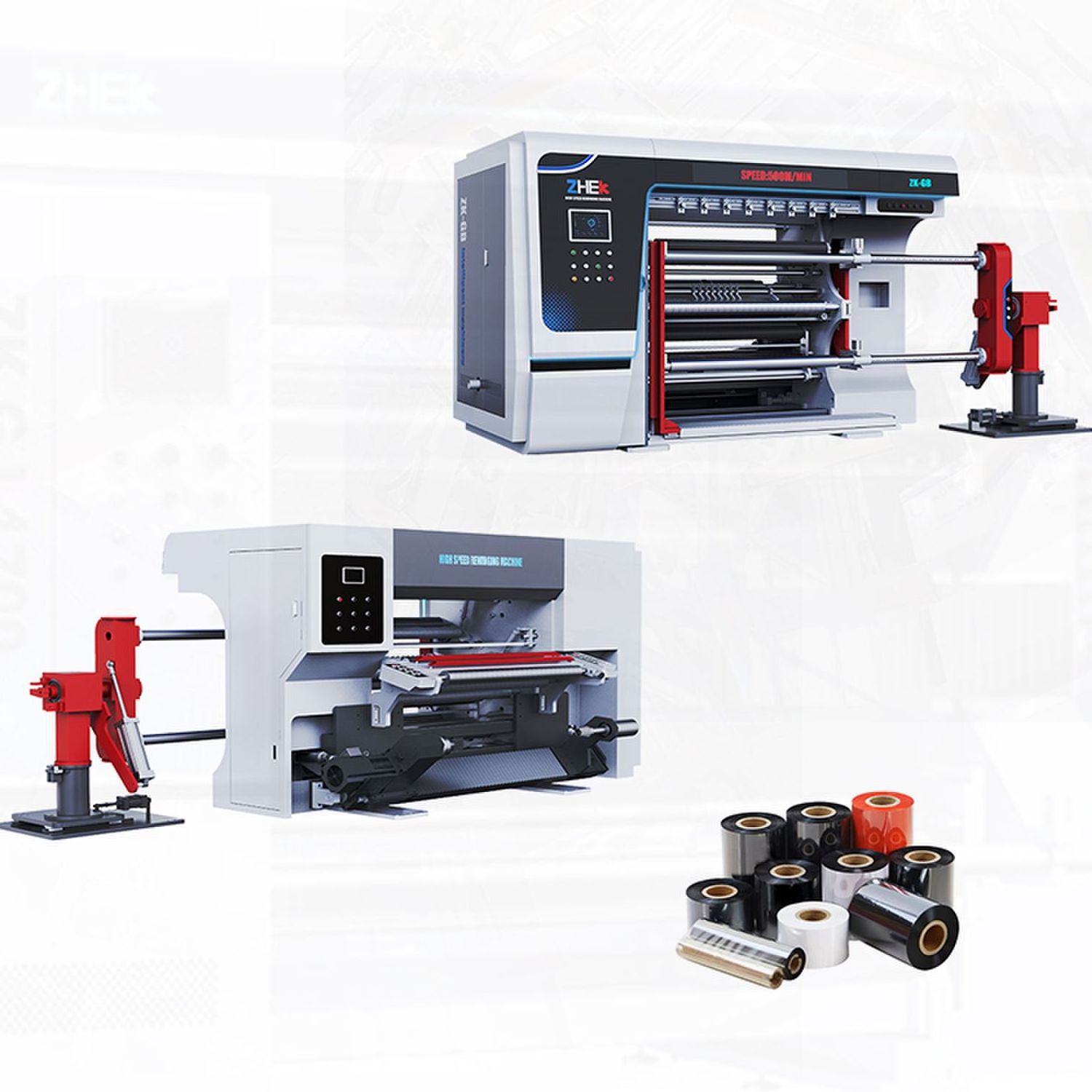

Slitter Rewinder Machine
-
Cutting materials:
-
Label.sticker.self-adhesive
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
500m/min
-
Max. workable width:
-
1600mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHEK
-
Voltage:
-
1 PHASE ,220V,50HZ
-
Dimension(L*W*H):
-
4.3mx4.8mx1.9m
-
Weight:
-
3500 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Slitter Rewinder Machine
-
Cutting materials:
-
Label.sticker.self-adhesive
Product Gategories
Products Description
The machine applies to slit cellophane, PET, OPP, CPP, PE, PS, PVC, pure aluminum and computer security labels, electronic computers, optical materials, film roll, foil roll, laminated film, all kinds of paper rolls, film and printing of various materials.,etc
Features:
1, Max. working speed 500m/min;
2, auto close-loop tension system for unwinder
3, automatic air pressure system for rewinder
4, good import brands of electric parts for webguide, motor, PLC etc.
5. Unwinder shaftless type
6, Rewinder uses pneumatic friction shafts
Technical Parameters:
Features:
1, Max. working speed 500m/min;
2, auto close-loop tension system for unwinder
3, automatic air pressure system for rewinder
4, good import brands of electric parts for webguide, motor, PLC etc.
5. Unwinder shaftless type
6, Rewinder uses pneumatic friction shafts
Technical Parameters:
|
Model
|
|
|
ZK-GB1300
|
ZK-GB1600
|
||
|
Max.Width of raw material
|
|
|
1300mm
|
1600mm
|
||
|
Max.Diameter of raw material
|
|
|
Ø800mm
|
Ø800mm
|
||
|
Max.Diameter of rewinding
|
|
|
Ø600mm
|
Ø600mm
|
||
|
Slitting Speed
|
|
|
10-500m/min
|
10-500m/min
|
||
|
Tolerance of EPC
|
|
|
≤0.1mm
|
≤0.1mm
|
||
|
Min.width of produce
|
|
|
50mm
|
50mm
|
||
|
Total power
|
|
|
20kw
|
25kw
|
||
|
overall dimension (L X W X H)
|
|
|
2.2m*4.3m*1.9m
|
2.2m*4.6m*1.9m
|
||
