Quick Details
-
Brand Name:
-
HB
-
Size:
-
As per request
-
Tolerance:
-
+-0.2mm, +-0.05mm
-
Density:
-
6.02g/cm3
-
Feature:
-
Wear Resistance/High temperature resistance
-
Keyword:
-
YSZ yttria stabilized zirconia ceramic tube with one end closed
Quick Details
-
Material:
-
Zirconia Ceramic
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
HBQ-B001
-
Brand Name:
-
HB
-
Size:
-
As per request
-
Tolerance:
-
+-0.2mm, +-0.05mm
-
Density:
-
6.02g/cm3
-
Feature:
-
Wear Resistance/High temperature resistance
-
Keyword:
-
YSZ yttria stabilized zirconia ceramic tube with one end closed
Product Show
|
Product Name
|
YSZ yttria stabilized zirconia ceramic tube with one end closed
|
|
Material
|
zirconia
|
|
Size
|
As per request
|
|
Payment Item
|
T/T,Western Union,Online payment by credit card are available
|
|
Thransport
|
Air transport: 5-10 days; Ocean shipping: About one month.
|
|
Delivery Time
|
1.stock:delivery within 3-5 days after receiving your payment.
2. OEM/ODM:The normal Lead time is 15-45 days, which depends on your quantiy. |

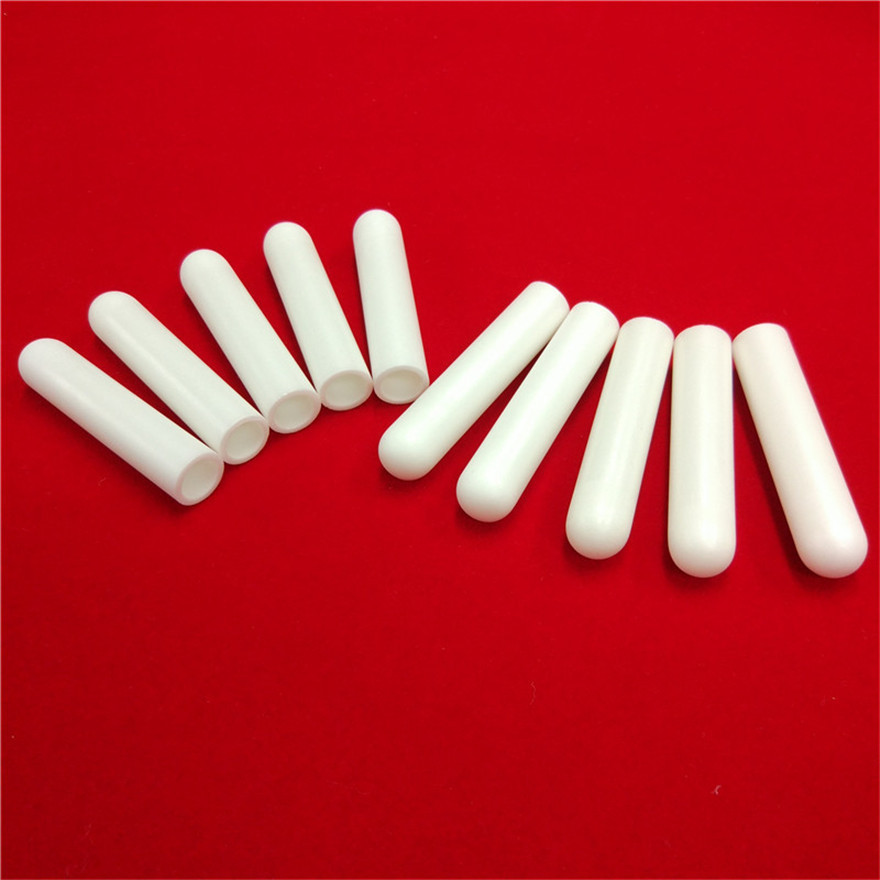

Zirconia ceramic tube
Material: 8 mol % Yttria Fully Stabilized Zirconia
Dimensions: OD13 mm; Length: 25 mm max. Wall thickness: 0.5 to 1.0 mm; one end closed
Surface: inner and radius diamondpolished Ra 0.2
Tolerance: DIN 2768-m
Yttria Stabilized Zirconia (YSZ) is the core of fuel cell and oxygen sensors.Typically these include thin walled ,open and closed
end tubes,flat plates and sheets according to customer's requirements.
Zirconia tube application:
* Oxygen sensor
* Combustion efficiency
* Excess air control
* Boiler control
* Fuel additive control
* Corrosion protection
* Combustion efficiency
* Excess air control
* Boiler control
* Fuel additive control
* Corrosion protection
Zirconi tube advantages:
- Either CIP or Dry press forming is optional, then secondary CNC fine-machining - High precision & fine polished surface finishing
- Strong mechanical strength with super high hardness
- Good insulation, anti-magnetic, static electricity-free characters
- Excellent chemical inertness and no pollution to medium
- Similar C.T.E. with steel, easy to assemble with metal shaft directly
- Anti high-temperature creeping and good thermal stability
- Self-lubricating and maintenance free under heavy working duty
- Strong mechanical strength with super high hardness
- Good insulation, anti-magnetic, static electricity-free characters
- Excellent chemical inertness and no pollution to medium
- Similar C.T.E. with steel, easy to assemble with metal shaft directly
- Anti high-temperature creeping and good thermal stability
- Self-lubricating and maintenance free under heavy working duty
Technical parameters
|
Item
|
Test Condition
|
Unit&Symbol
|
Zirconia Ceramic
|
|
The main Chemical Ingredient
|
|
|
ZrO2:95%
Y2O3:5%
|
|
Bulk Density
|
|
g/cm3
|
6
|
|
Maximum Use Temperature
|
|
|
1300℃
|
|
Water Absorption
|
|
%
|
0
|
|
ROHS Hardness
|
|
HRA
|
≥83
|
|
Compressive Strength
|
20℃
|
Kgf/cm2
|
25000
|
|
Fracture Toughness
|
|
Map.m3/2
|
6-8
|
|
Coefficient of Thermal Expansion
|
|
/℃
|
9.5*10-6
|
|
Thermal Shock Resistance
|
Tc
|
℃
|
360
|
|
Volume Resistivity
|
20
|
Ω.cm20℃
|
1012
|
Certifications
HONOR CERTIFICATES
CE & RoHs CERTIFICATES
Here are CE & RoHs certificates and test reports ,they are only for a part of products.
PATENT CERTIFICATES
We have applied for more than 20 patents, including 11 authorized patents and 3 invention patents
Our Company
Lianyungang Highborn Technology Co.,Ltd
Highborn Group is paying great attention to the product quality and technology research all the time. We have passed ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also in 2020, we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
We can offer not only qualified products, we can also supplying quality service including design, development, export and after sales. With our professional skills, advanced technology and quality material, we can design and develop new products or new applications according to the clients’ expectation. We have custom-made new products and promoted the specifications for more than 1000 clients, and we have gotten good reputation from our clients.
Packing & Delivery
FAQ
1：What products and service can you offer us?
Answer: With the development more than 20 years, now we have 6 business division and we
are supplying Quartz Glass (Tube, Rod, Plate and customized parts), optical glass and cuvette, and also various precise ceramics,porous ceramics and refractory ceramics. We have the full processing line for ceramic thick film resistors, far infrared ceramic glass heating panel, quartz tube/ceramic plate ozone generator,porous metal fiber felt and polyester fiber cotton products. For all the products, we can design and customize according to the clients’ demand.
2: Before mass order, can you offer samples? How will you charge for them?
Answer: We are willing to offer samples to lower your purchasing risk. Generally, if from inventory, we can deliver out within 3days, however if need processing, we can deliver out within 15days. For some difficult items, the delivery time will be decided by its grade of difficulty. For some low value items, we can offer free sample, however we would like you
to afford the freight cost. For customized products, we need to charge the developing cost.
3: What test report or certificate can you offer? What achievements have you made in research and development?
Answer: Till the end of 2021, we have passed many ROHS, CE, MSDS tests and also the ISO9001 authentication. We have 8 registered trademark and 25 patents. Also we won the title of China High-tech Enterprise and Jiangsu Private Science and Technology Enterprises.
4: Do you have any agent in our area? Can you export your products directly?
Answer: Till the end of 2021, we haven’t authorized any company or person as our regional agent. From 2008, we have the export qualification and professional export team, and till the end of 2021, we have exporting our products to more than 108 countries and regions, and our clients can contact us and purchase our products or service directly.
5: If the quality can not meet the requirement or any loss during the freight, how should we do?
Answer: We have strict QC test and professional QC team. We are always offering qualified products. If anything goes wrong, the quality can not meet requirement on the contract, we will reproduce the qualified products or refund the payment. We have the professional packing team and will pack the product in safe package for long distance delivery. If any loss during the freight, we hope you can assistant us to claim from the logistics company and we will arrange the replacement accordingly.
