Quick Details
-
Use:
-
seed drill with fertilizer
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Daoliangmou
-
Weight:
-
390 KG
-
Dimension(L*W*H):
-
1780*2340*1130mm
-
Marketing Type:
-
Hot Product 2021
-
Name:
-
14 row grass seed planter
-
Sowing width:
-
2100mm
-
Sowing depth:
-
400-800mm
-
Sowing rows:
-
14
-
Row spacing:
-
150mm adjust
-
Working efficiency:
-
1.8-2.9ha/h
-
Matched power:
-
25-50HP
-
Tansmission:
-
Gear and Chain
-
Seed metering device:
-
Outer grooved wheel
-
Furrow opener:
-
Double disc opener
Quick Details
-
Number of Rows:
-
12, 14
-
Type:
-
Tractor Mounted
-
Application:
-
Grass seed planting
-
Use:
-
seed drill with fertilizer
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Daoliangmou
-
Weight:
-
390 KG
-
Dimension(L*W*H):
-
1780*2340*1130mm
-
Marketing Type:
-
Hot Product 2021
-
Name:
-
14 row grass seed planter
-
Sowing width:
-
2100mm
-
Sowing depth:
-
400-800mm
-
Sowing rows:
-
14
-
Row spacing:
-
150mm adjust
-
Working efficiency:
-
1.8-2.9ha/h
-
Matched power:
-
25-50HP
-
Tansmission:
-
Gear and Chain
-
Seed metering device:
-
Outer grooved wheel
-
Furrow opener:
-
Double disc opener

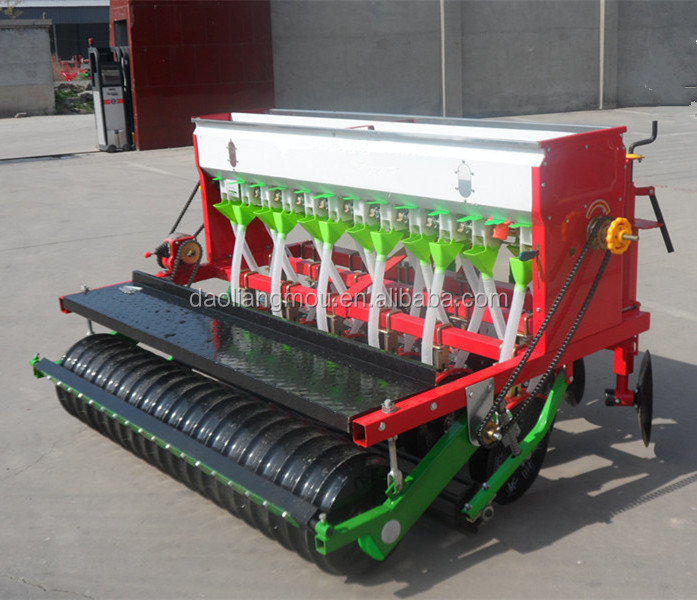

Farm tractor seed drill machine 14 row grass alfalfa seed planter
Introduction
2BMF series seeder include 2BMF-12 14, it is suitable for drilling wheat, rice, soybean, millet, sorghum, alfalfa, lucerne and various grass seeds, etc. 2BMF garin planter can fertilize while drilling. It can perform drilling, fertilizing, covering, rolling, etc. During one operation. Its seeding rate, fertilizing rate, and drilling depth all can be adjusted according different crops.
Specification
| Item | 2BMF-6 | 2BMF-9 | 2BMF-12 | 2BMF-14 | 2BMF-16 |
| Oversize(mm) | 1860×1520×1100 | 1660×1840×1140 | 1780×2030×1130 | 1880×2340×1100 | 2060×2620×1140 |
| Weight(kg) | 190 | 270 | 325 | 390 | 430 |
| Working width(mm) | 900 | 1350 | 1800 | 2100 | 2400 |
| Sowing depth(mm) | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
| Match power(Kw) | 13.2-14.7 | 14.7-18.4 | 18.4-25.7 | 25.7-36.8 | 36.8-51.5 |
| Transmission method | Chain | Chain | Chain | Chain | Chain |
| Sowing line | 6 | 9 | 12 | 14 | 16 |
| Work efficiency (hm2/h) | 0.25-0.5 | 0.4-0.8 | 0.5-1.0 | 0.6-1.2 | 0.7-1.4 |
| Seed metering device | Outer grooved wheel | ||||
| Operating speed (km/h) | 5-8 | ||||
| Row space (mm) | 150(adjust) | ||||
Advantage:
1. Adopt gravity cleaning seeds without hurting the seeds ;
2.High precision sowing, sowing stability , less thinning out;
3. Wheat, millet, sorghum,alfalfa and other seeds multi-usage sowing with fertilizer , can achieve turns the soil repression;
4. This seeder with New Tilt design hopper, when seeding amout is small collect seeds automatically to the bottom of the seed box . Save seeds, save labor and save time .
5. This seeder machine match plate cover,which c onvenient and thoroughly when cleaning off the platoon kind of plate cover .
2BMF-14 tractor mounted Fertilizer, seed drill for rice, millet, oats, wheat, alfalfa, pasuture seeds, luncern seeds....
Sowing parts : suitable sowing ferilizer and multi seeds like various beans, mini grass seeds, sesame seeds...
2BMF-16 row tractor trailed grass pasture seed drill
More seeder need, kindly check the follow and send inquiry to us :
Small tractor planter with bulk packed in plywood case, will help customer save transportation cost and more safe during transportation
1. Technical Consultation
If you have problems when using our machine, please read the instructions first.
If can’t resolve it, just call us, our engineer will provide customized technical support for you.
2. Maintenance
Considerate maintenance brings you the longer life time of the machine. We would supply you with the maintenance guide in the instruction. Keep in mind that you should do the related work before and after each work.
3. Components
Within warranty time the components is free.
Out of warranty time, the extra components are charged with reasonable price.
4. Warranty
Warranty period for this machine is
12 months
from Cargo departures on loading port.
5.What is the Delivery Time?
Within 7-15 working days after receiving clients’ payment.
6. What is the Payment Terms?
T/T, Western Union, Alibaba Trade Assurrance, Credit Card.
7. What is the Shipping methord?
Seeder will be sent to you
by sea, by air or other wayrs
, which is easy and convenient service.
2BMF-18 row grain seed drill send with bulk packing
