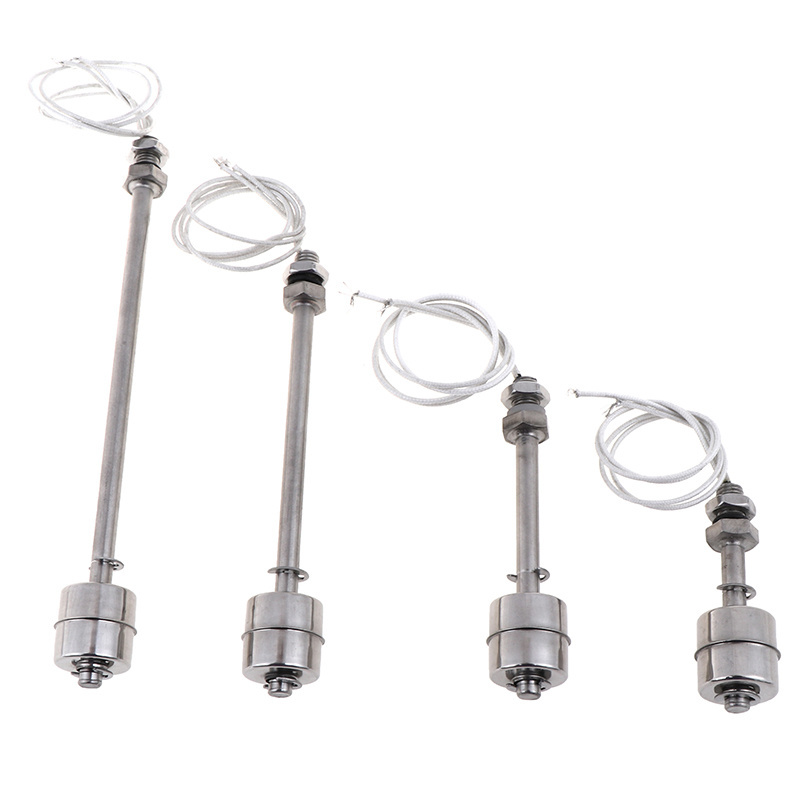

Multi-Levels Stainless Steel Float Level Switch Water Level Sensor

Multi-Levels Stainless Steel Float Level Switch Water Level Sensor

FOB Reference Price: Get Latest Price

≥10 Pieces

US $4.9

≥1000 Pieces

US $3.9

≥5000 Pieces

US $2.9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: FD-SMLS

Protection Level:: IP67

Operating Temperature:: -10~+180℃

Max. Current:: 1.5A/3.0A

Material:: Stainless Steel 304/316

Application:: Level Sensor

Operation Temperature:: -40C to 180C

Contact rating Max:: 10W/50W

Contact Form:: N.O/N.C

Wire length:: 350mm or as require

Feature:: Waterproof

MOQ:: 10pcs

Voltage:: 3-500V

Delivery Time:: 3~7 Days

Certification:: .

Quick Details

Max. Voltage:: 200VDC

Place of Origin:: Guangdong, China

Brand Name:: FuEn

Model Number:: FD-SMLS

Protection Level:: IP67

Operating Temperature:: -10~+180℃

Max. Current:: 1.5A/3.0A

Material:: Stainless Steel 304/316

Application:: Level Sensor

Operation Temperature:: -40C to 180C

Contact rating Max:: 10W/50W

Contact Form:: N.O/N.C

Wire length:: 350mm or as require

Feature:: Waterproof

MOQ:: 10pcs

Voltage:: 3-500V

Delivery Time:: 3~7 Days

Certification:: .

Click Here for Free Samples!

Product Description

Product Name	Float Switch Sensor
Material	Stainless steel 304/316
Size	Rod length :220MM , Cable length : as your requirements , Terminal /connector : as your requirements
Function	Float level switches are widely used in electronic, electrical, chemical, water treatment, drainage and other industry of level control and alarm.
Payment terms	T/T; Western Union; PayPal.Trade assurance
Package	Standard Export Package

Product performance description

1.Acid and alkali resistant materials: Stainless steel 304/316
Other material : PP,PVDF, NYLON, NBR etc..
2.Stainless steel SUS304, SUS316, max working temp.350℃, max proof pressure 60kg/cm2
3.Stainless steel switch body length can reach 120mm~400mm or as your requirements , the length can be adjusted according to your
water
tank, switch body is durability.
4.Multiple wires: electrical wire or cable wire, PVC, XLPE, PTFE materials.
5.Multiple installations, dimensions, from M8~M16, 1/8" ~ 1/2",PF/PT/BSP etc..
