Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 500mm
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Customized
-
Power:
-
7.5KW
-
Weight:
-
5000 kg
-
Working Speed:
-
0-10 meters/minutes
-
Maim Motor Power:
-
7.5 kw
-
Hydraulic cutting Power:
-
4 kw
-
Material Of Cutting:
-
CR12 with quench treatment
-
Control System:
-
PLC Control
-
Hardness:
-
HRC58-62
-
Roller Material:
-
Cr40 Steel with quenching
-
Shaft Material:
-
45# Steel Diameter 60mm shaft
-
Tolerance:
-
+-1.5mm
Quick Details
-
Production Capacity:
-
0-10 meters/minutes
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman Machinery
-
Voltage:
-
Customized
-
Power:
-
7.5KW
-
Weight:
-
5000 kg
-
Working Speed:
-
0-10 meters/minutes
-
Maim Motor Power:
-
7.5 kw
-
Hydraulic cutting Power:
-
4 kw
-
Material Of Cutting:
-
CR12 with quench treatment
-
Control System:
-
PLC Control
-
Hardness:
-
HRC58-62
-
Roller Material:
-
Cr40 Steel with quenching
-
Shaft Material:
-
45# Steel Diameter 60mm shaft
-
Tolerance:
-
+-1.5mm
Product Description

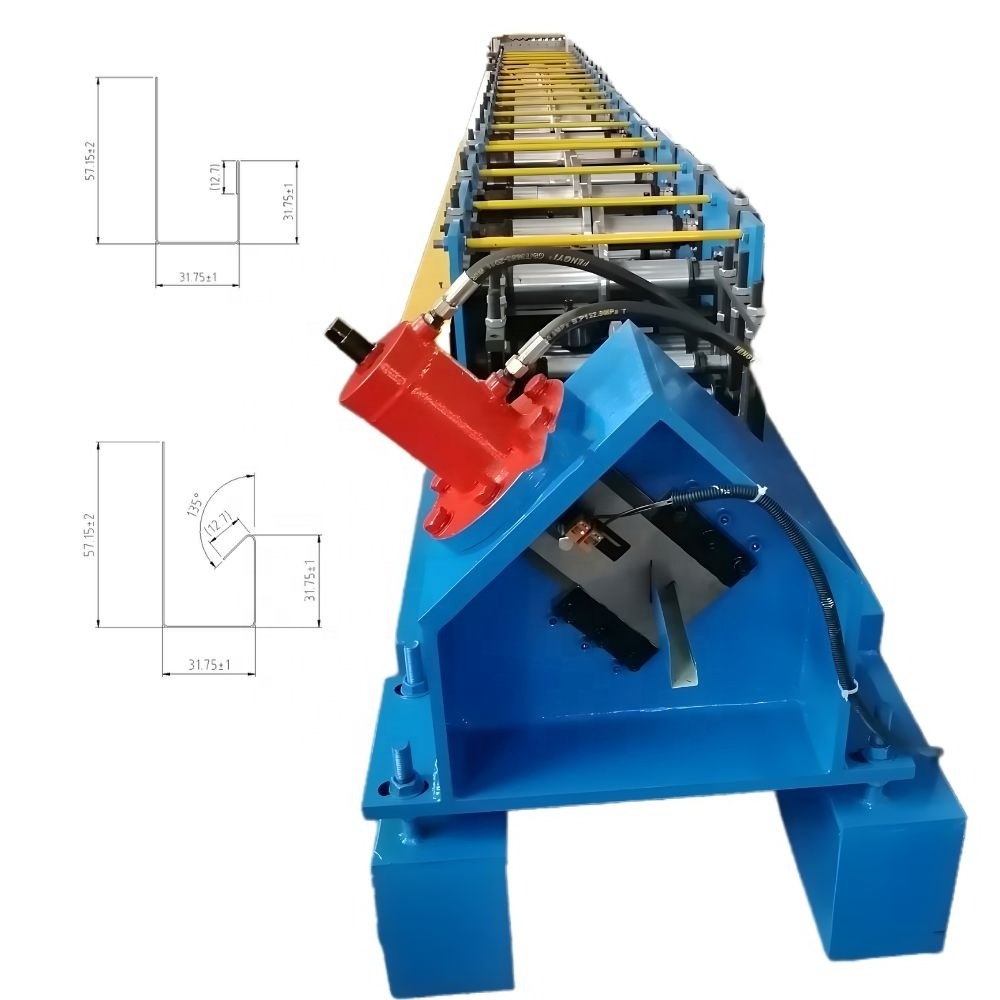

J Trim is used to cap raw panel edges where run-off is not a problem. Most commonly, j trim metal is used to cap the top edges of skirting, the top and sides of doors, the bottom and sides of windows, and in many cases the top of windows for aesthetics and continuity.
Technical Data:
|
|
Items
|
Specifications
|
|
Material of coil
|
Material Thickness
|
0.4 mm-1.2 mm galvanized steel
|
|
De-coiler
|
Weight
|
3 ton manual
|
|
Forming system
|
Rolling Speed
|
10-12m/min
|
|
|
Roller Stations
|
About 9 stations forming
|
|
|
Roller Material
|
Cr40 Steel with quenching
|
|
|
Shaft Material
|
45# Steel Diameter 60mm shaft
|
|
|
Maim Motor Power
|
5.5 kw
|
|
|
Hydraulic cutting Power
|
4 kw
|
|
Cutting
system |
Material Of Cutting
|
CR12 with quench treatment
|
|
|
Hardness
|
HRC58-62
|
|
|
Tolerance
|
+-1.5mm
|
|
Electrical control system
|
Electric Source
|
220V, 60HZ,3 phase
|
|
|
Control System
|
PLC Control
|
|
|
Weight
|
About 3 tons
|
|
|
Way Of Drive
|
1 inch single chain
|
|
|
Size of machine
|
Length 5500mm* Width 600mm* Height 800m
|
Machine List:
|
3 ton passive de-coiler
|
1 set
|
|
Main roll forming machine
|
1 set
|
|
Cutting device
|
2 sets
|
|
PLC Control box
|
1 unit
|
|
Hydraulic station
|
1 unit
|
|
Out table
|
1 unit
|
|
Safety cover
|
1 unit
|
Product Display
3 Tons Passive Decoiler
Main Roll Forming Machine
Working Speed: 0-10 Meters/Minutes
Control Box
* Power supplier: 220V, 60 Hz, 3Phase (adjusted with therequestment)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)
* length & quantity measurement automatically;
* length & quantity controlled by PLC
* Length inaccuracy can be amended easily.
* Control panel: Button-type switch and touch screen
* Unit of length: millimeter (switched on the control panel)
Output Table
It adopts welded steel and supported roller to transmit the products,which is used to
collect the finished products.
collect the finished products.
Application
