Quick Details
-
Voltage:
-
380V
-
Power:
-
60KW
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
4000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product:
-
pvd vacuum coating machine
-
business type:
-
manufacturer
-
Dimension(Diam*High):
-
1250*1500mm,1600*1800MM ,1800mm*1800mm
-
structure:
-
vertical,single doors
-
control system:
-
manual automatic all-in-one
-
operating system:
-
PLC touching screen
-
coating film:
-
TiN,TIC,ZrN,CrN,Nickle,Cr,Cu,ect
-
color:
-
all kinds of color
Quick Details
-
Machine Type:
-
pvd vacuum coating machine, Coating Equipment
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUICHENG
-
Voltage:
-
380V
-
Power:
-
60KW
-
Dimension(L*W*H):
-
customized
-
Weight (KG):
-
4000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product:
-
pvd vacuum coating machine
-
business type:
-
manufacturer
-
Dimension(Diam*High):
-
1250*1500mm,1600*1800MM ,1800mm*1800mm
-
structure:
-
vertical,single doors
-
control system:
-
manual automatic all-in-one
-
operating system:
-
PLC touching screen
-
coating film:
-
TiN,TIC,ZrN,CrN,Nickle,Cr,Cu,ect
-
color:
-
all kinds of color
Ceramic gold pvd vacuum coating machine/Porcelain tile titanium nitride gold coating machine/ceramic tile pvd coating equipment
| DETAILED DESCRIPTION |
This is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate , great ionization rate, big ion energy,easy operation, low cost, large productive capacity, etc.It's the more advanced technology to replace traditional electroplating way.
The machine is mainly design for sanitary ware/bathroom fitting parts. It’s equipped with several big size electrical arc evaporation sources and magnetron sputtering coating system, to deposit high performance metal decorative film on brass, zinc alloy, stainless steel, plastic and other metal parts surface. It can get all types of metal color series on substrate. The coating film includes TiN, Zr,T iCN, ZrCN, CrN, CrCN, brass, bronze, chrome etc. Color series includes AF, SN, BN, VF, BV, G, BX, TB, AF, SN, 96CB, CB, TXB, VS, S, BS, BRZ, BGD, PGD and so on. It can get different colors by adjusting coating technics. It is largely used in the sanitary ware/ Kitchen ware field.
| FEATURES |
It has the reliable work, good repeatability and consistency., fast deposition rate, high adhesion, fine film, etc. The coating film is dense and hardness with low friction coefficient, to keep the smoothness of original workpiece surface, good flexibility, hard to break and fall.
The equipment makes full automation of the coating technology come true. It uses the vacuum coating technique to coat on the surface of the base material. It has the features of low cost, high qualification rate, green environmental protection etc.
| APPLICATION |
It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper , and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film ( TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al 2 O 3 and other decorative films etc.) and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.
This machine is extensively used in the fields of decorative coating for stainless steel, ceramic tile/cups, computer, mobile phone, watch& jewelry, sanitary, home appliance, hotel products etc.
| TECHNICAL DATA |
| Mode | LH-1215 | LH-1618 | LH-2121 |
| Dimension | D1250*H1500mm | D1600*H1800mm | D2100*H2100m |
|
Coating mode and
main confirguration |
Twelve arc targets | Eighteen arc targets | Twenty two arc targets |
| Power source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||
|
Vacuum chamber
structure |
Vertical side opening door, pump system postposition, double water cooling | ||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer’s special technique requirement. | ||

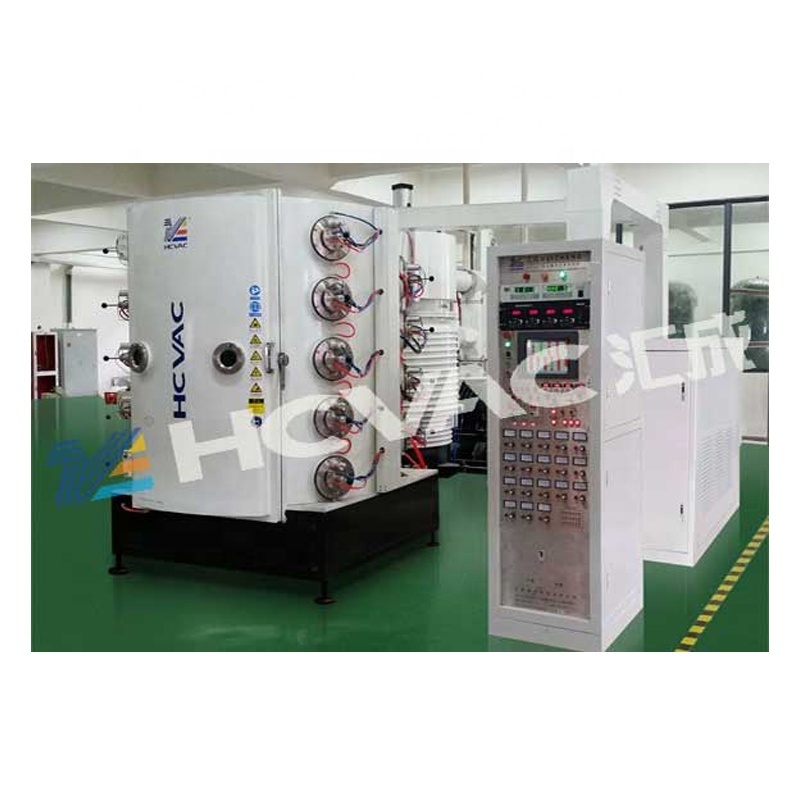

| MACHINE PHOTOS |
| SAMPLE PHOTOS |
|
Metal:
Ceramic:
Mosaic:
