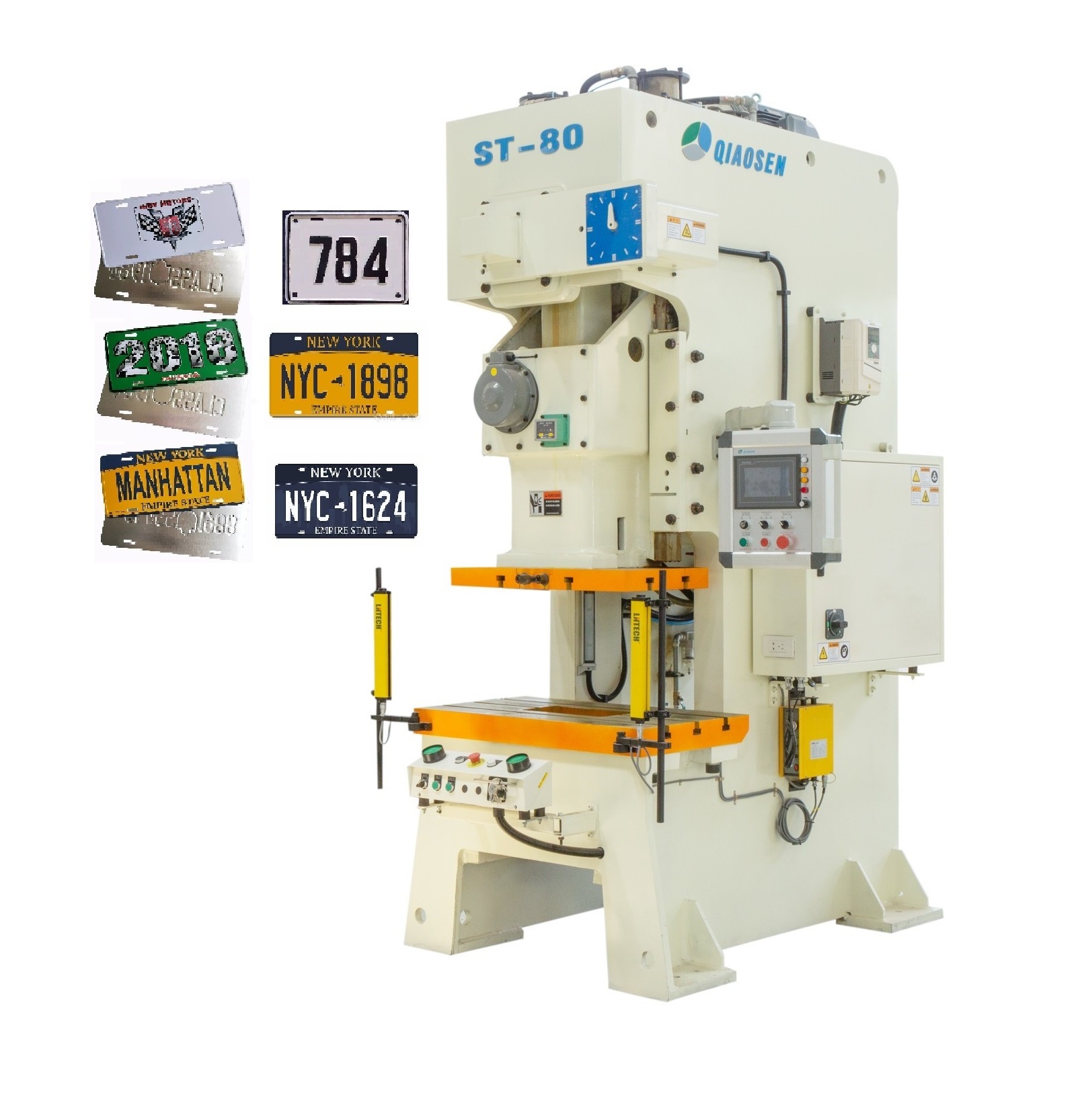

C Type metal hardware licence number plate making machinery car number plate punching machines

C Type metal hardware licence number plate making machinery car number plate punching machines

FOB Reference Price: Get Latest Price

≥1 Pieces

US $24900

≥3 Pieces

US $23900

≥10 Pieces

US $21000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 1800*1180*2980mm

Motor Power (kW):: 7.5*4kW*P

Model Number:: ST-80V

Weight (T):: 6.5

Marketing Type:: Hot Product 2022

Machine name:: Metal punching machine

Punching capacity:: 80ton for Pneumatic Press

Slider strokes per minute:: 35-80 SPM for Automatic Power Press

Maximum mode height:: 340 mm for metal punching machine

Up platform area:: 770*420*70mm for Stamping Press

Down platform area:: 1000*550*90mm for steel sheet punching machine

Material:: 42CrMo used for Crankshaft, ZQSn10-1 used for Copper sets

Slider guide position stucture:: 2 corner 6 guide structure

Color:: Customer Request

After Warranty Service:: Video technical support, Online support, Spare parts

Quick Details

Slide Stroke (mm):: 150mm

Place of Origin:: Guangdong, China

Brand Name:: QIAOSEN

Voltage:: 380V

Dimension(L*W*H):: 1800*1180*2980mm

Motor Power (kW):: 7.5*4kW*P

Model Number:: ST-80V

Weight (T):: 6.5

Marketing Type:: Hot Product 2022

Machine name:: Metal punching machine

Punching capacity:: 80ton for Pneumatic Press

Slider strokes per minute:: 35-80 SPM for Automatic Power Press

Maximum mode height:: 340 mm for metal punching machine

Up platform area:: 770*420*70mm for Stamping Press

Down platform area:: 1000*550*90mm for steel sheet punching machine

Material:: 42CrMo used for Crankshaft, ZQSn10-1 used for Copper sets

Slider guide position stucture:: 2 corner 6 guide structure

Color:: Customer Request

After Warranty Service:: Video technical support, Online support, Spare parts

Product Specifications

NO	Item	Unit	ST-80V	ST-80H
1	Punching capacity	ton	80
2	Ability occurrence point	mm	4	2
3	Slider strokes per minute	SPM	35-80	80-120
4	Long slider length	mm	150	70
5	Maximum mode height	mm	340	380
6	Slider adjustment amount	mm	80
7	Up platform area	mm	*77042070*
8	Down platform area	mm	*100055090*
9	Slider center to machine distance	mm	280
10	Platform to floor distance	mm	830
11	Shank hole	mm	ᶲ50
12	Main motor power	*kwp**	*7.54**
13	Air presure	kg/cm^2	6
14	Punch accuracy grade		JIS 1
15	*Punch dimension（LWH）*	mm	*180011802980*
16	Punch weight	ton	6.5
17	Die cushion capacity（optional）	ton	3.6
18	Stroke（optional）	mm	70
19	Active area（optional）	mm	*450310**

Product Overview

Car number plate making machine ,Precision punching machine ,Pneumatic press machine

●The high-strength fuselage structure has small deformation and high precision.

● OMPI pneumatic dry clutch brake.

● The slider adopts 2corner and 6sided guides.

● The slider guide adopts"high-frequency quenchi ng" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve service life.

●Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel. ●The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass. ●Highly sensitive hydraulic overload protection device protects the press and die service life. ●Optional mat (air cushion).
