Quick Details
-
Product name:
-
Electric telescopic mast
-
Height:
-
Customizable
-
Material:
-
Aluminum alloy
-
Application:
-
Emergency Lighting
-
Low tempertaure storage:
-
-55°
-
Color:
-
Customizable
-
Humidity:
-
less than 90%(temperature 25°)
-
Security:
-
Self-locking at any height; would not fall at any time
-
Wind Speed:
-
19m/s
-
Accessories:
-
Ground Anchor
Quick Details
-
Brand Name:
-
OKAF
-
Model Number:
-
OK-QD03-20SJ
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Electric telescopic mast
-
Height:
-
Customizable
-
Material:
-
Aluminum alloy
-
Application:
-
Emergency Lighting
-
Low tempertaure storage:
-
-55°
-
Color:
-
Customizable
-
Humidity:
-
less than 90%(temperature 25°)
-
Security:
-
Self-locking at any height; would not fall at any time
-
Wind Speed:
-
19m/s
-
Accessories:
-
Ground Anchor
Product Description

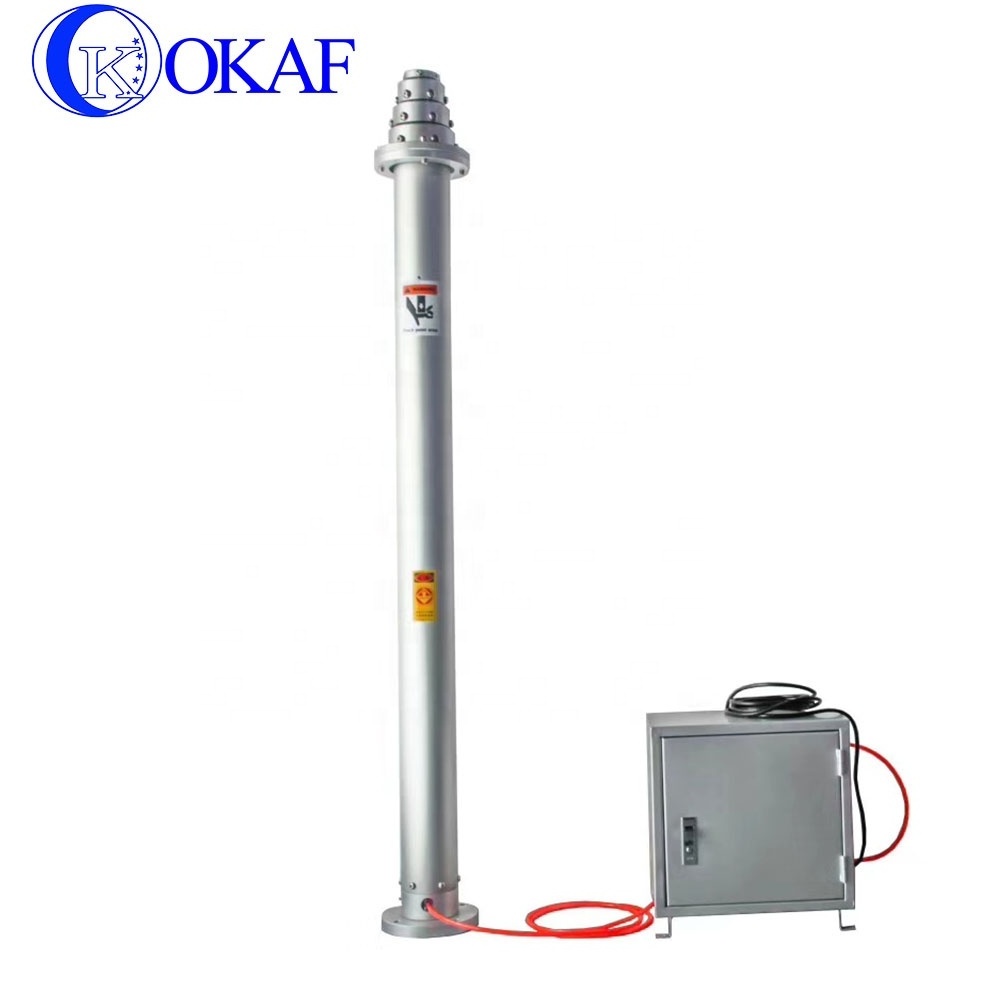

Customized 3-20 M heavy duty pneumatic telescopic tower motorized telescoping pole antenna mast
Product description：
This pneumatic telescopic mast is, the carrier of equipment which need high working height,
suitable for car, ship and ground. It can mount antenna, lighting, lightning, cameras, and other mobile
equipment, and quickly raise them to a working height safetly, and then retract to closed height.
Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the
advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance,
stable and so on. It could meet different areas, different occasions on the height and load
requirements, in addition, it is also widely used in golf, large football night lighting, etc.
Working principle:
The solution uses pneumatic hand spike theory. It can be used RS485 to control lifter. Its good self
locking performance achieving reliable, self-locking in any position improves the safety of reliability.
Advantage of Okaf Pneumatic Telescopic Mast:
1. Wide range application. Suitable for vehicle, vessel and ground systems.
2. Fast lifting. Within 1 minute to raise the telecommunication antennas, led lights,mobile surveillance PTZ Cameras and Lightning protection rod.
3. Portable. The telescopic mast is lightweight, with the wheels, you can take it easily.
4. Stable and safety. The mast is high strength, it can work during the 8 degree wind. With the tripod, it can stand well on the ground.
5. Long life span. The aluminum mast is anti corrosive which can long last many years.
6. Customized available. The height, payload and function can be customized according to your requirement.
7. Offer solutions. Our professional technician team help to provide best solution according to the needs.
This pneumatic telescopic mast is, the carrier of equipment which need high working height,
suitable for car, ship and ground. It can mount antenna, lighting, lightning, cameras, and other mobile
equipment, and quickly raise them to a working height safetly, and then retract to closed height.
Our company's pneumatic telescopic mast lifter is made of high-strength aluminum alloy, with the
advantage of corrosion-resistant, light weight, large load, low noise, fast lift, small shock resistance,
stable and so on. It could meet different areas, different occasions on the height and load
requirements, in addition, it is also widely used in golf, large football night lighting, etc.
Working principle:
The solution uses pneumatic hand spike theory. It can be used RS485 to control lifter. Its good self
locking performance achieving reliable, self-locking in any position improves the safety of reliability.
Advantage of Okaf Pneumatic Telescopic Mast:
1. Wide range application. Suitable for vehicle, vessel and ground systems.
2. Fast lifting. Within 1 minute to raise the telecommunication antennas, led lights,mobile surveillance PTZ Cameras and Lightning protection rod.
3. Portable. The telescopic mast is lightweight, with the wheels, you can take it easily.
4. Stable and safety. The mast is high strength, it can work during the 8 degree wind. With the tripod, it can stand well on the ground.
5. Long life span. The aluminum mast is anti corrosive which can long last many years.
6. Customized available. The height, payload and function can be customized according to your requirement.
7. Offer solutions. Our professional technician team help to provide best solution according to the needs.
Specification
|
Items
|
Test condition
|
|
|
Anti-wind capability |
Level 8 wind: work normally; level 12 wind: can not be destroyed (working condition, nailed into the ground, 3-4 guy wires, pull
angle: 30-40 degrees, the guy wire is tight)。GJB74A-1998 3.13.13 |
|
|
Low tempertaure storage
|
-55°
|
|
|
Low tempertaure working
|
-40°
|
|
|
high temperature storage
|
70°
|
|
|
high-temperature working
|
55°
|
|
|
Humidity
|
less than 90%（temperature 25°）
|
|
|
Exposed to the rain
|
Strength 6mm/min, the time of duration is 1 hour
|
|
|
Antiseptic
|
Refer to GJB150.11A-2009 Standard test
|
|
|
Dust-proof
|
Refer to GJB150.12.1986 Standard test
|
|
|
Solar radiation
|
Refer to GJB150.7.1986 Standard test
|
|
|
Mould
|
Refer to GJB150.2.1986 the second chapter standard inspection. Mildew-growing level: level 1
|
|
|
|
|
|
|
Operating
|
air pump; foot pump; controller box
|
|
|
Level of rotation speed
|
6r/min
|
|
|
Vertical of rotation speed
|
66Km/h
|
|
|
Control way
|
RS485，Pelco-D/P agreement,remote control
|
|
|
Material
|
aluminium alloy
|
|
|
weight capacity
|
10 KG
|
|
|
Voltage
|
DC12V-15A
|
|
|
Security
|
Self-locking at any height; would not fall at any time
|
|
|
Safety
|
Self-locking at any height
|
|
About fixed method：
1. Bottom flange.
The hole positions of the bottom and top flanges can be customized.
Hug hoop:
Technical data
|
pneumatic
telescopic mast |
Extended Height
|
Retracted Height
|
sections
|
Operation mode
|
Max top payload
|
|
OK-QD05G-1
|
5
|
1.7
|
4
|
air pump/foot pump/control box
|
40kg
|
|
OK-QD05G-2
|
5
|
1.5
|
5
|
air pump/foot pump/control box
|
50kg
|
|
OK-QD05G-3
|
5
|
1.6
|
5
|
air pump/foot pump/control box
|
60kg
|
|
OK-QD05G-4
|
5.3
|
1.5
|
5
|
air pump/foot pump/control box
|
150kg
|
|
OK-QD06G-1
|
6
|
2.0
|
4
|
air pump/foot pump/control box
|
50kg
|
|
OK-QD06G-2
|
6
|
1.65
|
5
|
air pump/foot pump/control box
|
80kg
|
|
OK-QD06G-3
|
6
|
1.65
|
5
|
air pump/foot pump/control box
|
120kg
|
|
OK-QD65G
|
6.5
|
2.2
|
4
|
air pump/foot pump/control box
|
300kg
|
|
OK-QD07G-1
|
7
|
1.7
|
6
|
air pump/foot pump/control box
|
30kg
|
|
OK-QD07G-2
|
7
|
1.75
|
6
|
air pump/foot pump/control box
|
75kg
|
|
OK-QD08G-1
|
8
|
2.0
|
6
|
air pump/foot pump/control box
|
60kg
|
|
OK-QD08G-2
|
8
|
1.95
|
6
|
air pump/foot pump/control box
|
100kg
|
|
OK-QD09G-1
|
9
|
1.95
|
6
|
air pump/foot pump/control box
|
20kg
|
|
OK-QD09G-2
|
9
|
2.4
|
6
|
air pump/foot pump/control box
|
40kg
|
|
OK-QD09G-3
|
9
|
2.0
|
7
|
air pump/foot pump/control box
|
100kg
|
|
OK-QD100G-1
|
10
|
2.31
|
6
|
air pump/foot pump/control box
|
30kg
|
|
OK-QD100G-2
|
10
|
2.0
|
7
|
air pump/foot pump/control box
|
80kg
|
|
OK-QD100G-3
|
10
|
3.0
|
5
|
air pump/foot pump/control box
|
100kg
|
|
OK-QD100G-4
|
10
|
1.8
|
9
|
air pump/foot pump/control box
|
20kg
|
|
OK-QD100G-5
|
10
|
3.0
|
5
|
air pump/foot pump/control box
|
200kg
|
|
OK-QD120G-1
|
12
|
2.7
|
6
|
air pump/foot pump/control box
|
10kg
|
|
OK-QD120G-2
|
12
|
2.4
|
7
|
air pump/foot pump/control box
|
40kg
|
|
OK-QD120G-3
|
12
|
2.6
|
6
|
air pump/foot pump/control box
|
70kg
|
|
OK-QD120G-4
|
12
|
2.8
|
6
|
air pump/foot pump/control box
|
120kg
|
|
OK-QD120G-5
|
12
|
3.0
|
6
|
air pump/foot pump/control box
|
300kg
|
