Quick Details
-
Brand Name:
-
XC
-
Model Number:
-
XC-9
-
Product Name:
-

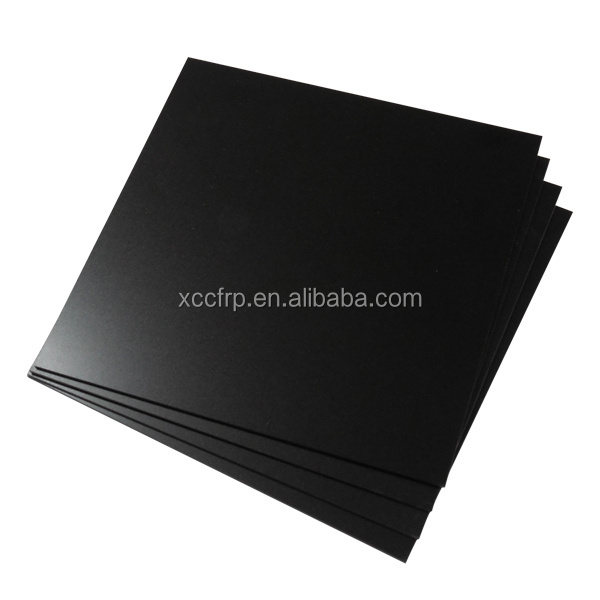

OEM G10 fr4 Black Fiberglass
-
Thickness:
-
0.2-100mm
-
Color:
-
Light green ,black ,yellow ,blue ect
-
Heat resistance:
-
180 degree
Quick Details
-
Application:
-
rc hobby,copters
-
Technique:
-
High Temperature
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XC
-
Model Number:
-
XC-9
-
Product Name:
-
OEM G10 fr4 Black Fiberglass
-
Thickness:
-
0.2-100mm
-
Color:
-
Light green ,black ,yellow ,blue ect
-
Heat resistance:
-
180 degree
DESCRIPTION
Application:
1. Motors and electrical equipment insulation parts,
2. Fpc reinforcement plate, Carbon film board,
3. RC hobby parts, UAV Film frame
4. Electrical insulation, Insulating structural parts in electrical & mechanical equipment, such as generators, motors, transformers,
terminal boards, PC boards, washers
5. Others.
Advantages:
*High mechanical & electrical strength
*Excellent rigidity & dimensional stability
*Insulation, Good dielectric properties Easy to machine
*Tighter thickness tolerance Smooth and clean surface.
*Low water absorption
*Flame resistance
* High-Temperature resistance
*Flatness, Smooth surface
*Reinforced
Specification:
| Item | Unit | Value |
| Flexural strength | MPa | >350 |
| Surface resistivity (C-96/20/65) | MΩ | >105 |
| Volume resistivity(C-96/20/65) | MΩ·m | >104 |
| Heat resistance 220°C 20mm | — | No bubble |
| Flammability UL94 (1.6mm) | Class | V-0 |
| Solvent resistance | — | No change |
| Density | g/cm3 | 1.85-1.95 |
| Size | mm | 500*1000,600*1000,1020*1220,1220*1250 |
| Note: Colors white, yellow, black, light green are available | ||
