- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Warehouse
-
Model Number:
-
H6-2
-
Product Name:
-
40W LED Weatherproof Batten Light
-
Power:
-
40W
-
IP Rate:
-
IP69K
-
Material:
-
PC
-
Size:
-
1200*D78.2MM
-
CCT:
-
2700 - 6500K
-
Power Factor:
-
PF>0.95
-
Installation:
-
Suspended/Ceiling mounted
-
Options:
-
Emergency/Sensor
-
Usage:
-
Farm, Food processing locations, Cold storage, Packing Lot, Garage
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Warranty(Year):
-
3-Year
-
Type:
-
led tri proof light
-
Application:
-
Warehouse
-
Model Number:
-
H6-2
-
Product Name:
-
40W LED Weatherproof Batten Light
-
Power:
-
40W
-
IP Rate:
-
IP69K
-
Material:
-
PC
-
Size:
-
1200*D78.2MM
-
CCT:
-
2700 - 6500K
-
Power Factor:
-
PF>0.95
-
Installation:
-
Suspended/Ceiling mounted
-
Options:
-
Emergency/Sensor
-
Usage:
-
Farm, Food processing locations, Cold storage, Packing Lot, Garage

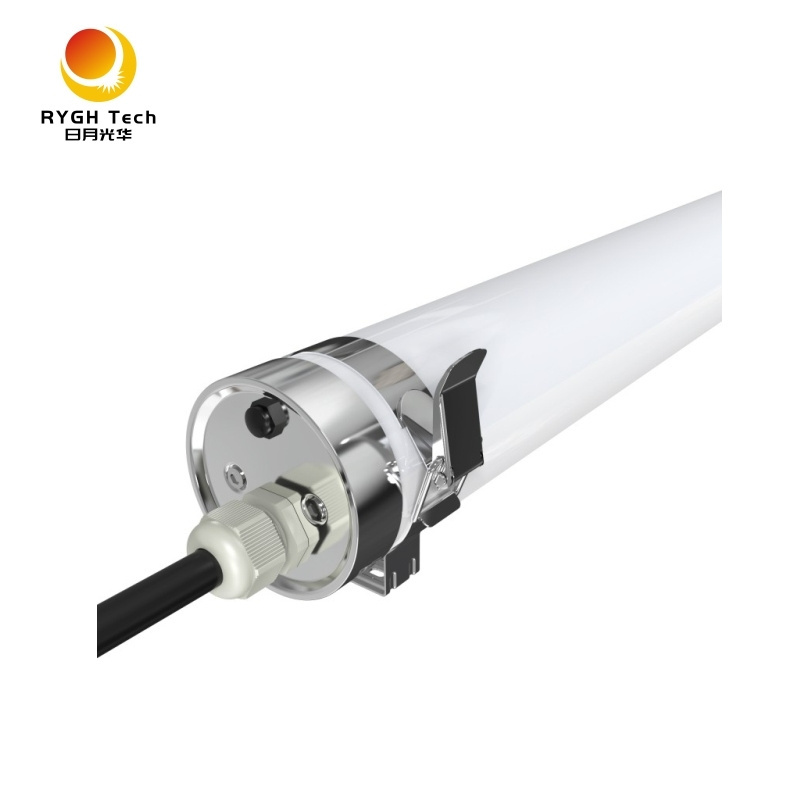

Product Description
Meat Food Processing Plant 5FT PMMA PC Cover IK69K 60W Tri-proof LED Weatherproof Light Fittings
Model number:
H6-2
Power: 20W, 40W, 60W
Features:
• IP69K
• IK10
• System efficiency up to 130lm/W & 150lm/W option
• High CRI >80
• UGR<19 option
• Linkable options with quick connection
• Environmentally friendly, no mercury, No UV, No IR
• Wide beam angle 120°
• Energy Efficiency Grade: A+
• Quick Start instant 100% luminous flux
• Flicker Free driver/Flicker driver optional
• 3 Year Warranty on complete fixture. (LED's, Driver, & Housing)
• Certificate: CE, RoHs Certified
• Surface Mount or Suspended
Application:
Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting.
Caution:
1, Please read the user manual before installation.
2, Please install, connect and test the lamp according to local regulations, lamp should always be installed or replaced by professional person.
3, Make sure the power is switched off before installation.
4, Please check whether the lamps are broken or not before shipping, broken items can not be used any more.
5, Please keep the lamps and accessories away from kids to avoid hurt by mistakes.
6, To protect your eyes, please do not stare at luminous surface for a long time.
7, Please don’t cover anything on lamp, and keep lamps away from fire or high temperature objects.
8, Incorrect installation or using, RYGH keep the right to refuse after-sales service for those dis-assembled or repaired items.
9, Switching the power off and cool down the lamp before cleaning.
10, The lamp is only suitable for weak acid environment.
Please don’t install the product in the following places:
1, There is a large places of chemical corrosive substance, such as chemical plant and stockyard, etc.
2, Too low temperature conditions, large scale temperature variation, which would easily lead to broken or damage. The suitable working temperature is -20 to 50 degree Celsius.
|
Model No.
|
H6-2-600
|
H6-2-1200
|
H6-2-1500
|
||
|
Length
|
600mm
|
1200mm
|
1500mm
|
||
|
Power Factor
|
>0.9
|
>0.9
|
>0.9
|
||
|
Chip
|
2835 0.2W
|
2835 0.2W
|
2835 0.2W
|
||
|
Input
|
AC 110-265V
|
AC 110-265V
|
AC 110-265V
|
||
|
Power
|
20W
|
40W
|
60W
|
||
|
Protection Index
|
IP65
|
IP65
|
IP65
|
||
|
Lumen
|
2600LM
|
5200LM
|
7800LM
|
||
|
CCT
|
2700-6500K
|
2700-6500K
|
2700-6500K
|
||
|
CRI
|
80/90/95
|
80/90/95
|
80/90/95
|
||
|
Cable length
|
0.5m
|
0.5m
|
0.5m
|
||
|
Warranty
|
3 years
|
3 years
|
3 years
|
||
|
Application
|
Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom,
swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, elevated, overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting |
|
|
||
Specification
|
item
|
value
|
|
Color Temperature(CCT)
|
6000K (Daylight Alert) 2700-6500K optional
|
|
Input Voltage(V)
|
AC 85-265V
|
|
Lamp Luminous Efficiency(lm/w)
|
130
|
|
Warranty(Year)
|
3-Year
|
|
Color Rendering Index(Ra)
|
80
|
|
Support Dimmer
|
Optional
|
|
Lighting solutions service
|
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, auto CAD layout
|
|
Lifespan (hours)
|
50000
|
|
Working Time (hours)
|
50000
|
|
Type
|
led tri proof light
|
|
Certification
|
CE, RoHs
|
|
Model Number
|
H6-2
|
|
Application
|
Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom,
swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, overpass, elevated, airport server, Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting. |
|
Product Name
|
Led Vapor Tight Led Lights
|
|
IP Rate
|
IP65/IP66
|
|
Power
|
20W/40W/60W
|
|
Usage
|
food processing and poultry lighting
|
|
Material
|
ABS+PC
|
|
Length
|
2/4/5 feet
|
|
Beam angle
|
120 Degree
|
|
Installation
|
Suspended/Ceiling mounted
|
|
CCT
|
2700 - 6500K
|
|
Power Factor
|
PF>0.95
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
LED Vapor proof light material
LED Vapor proof light material
LED Vapor proof light material
LED Vapor proof light in production
LED Vapor proof light in production
LED Vapor proof light in production
Emergency led vapor proof lighting
Emergency led vapor proof lighting
finished product led vapor proof lighting
LED Vapor proof light delivery
LED Vapor proof light delivery
LED Vapor proof light delivery
LED Vapor proof light application
Layer and Breeder Lighting, Broiler and Pullet Lighting, Swine Lighting, Dairy Barn Lighting
LED Vapor proof light application
Food processing and poultry lighting industry, Food & Beverage as well as the vehicle industry, factory, stadium, washroom, swimming pool, dressing room, supermarket, restaurant, school, subway, tunnel, kitchen, canteen, pedestrian passage, corridor, elevated, overpass, elevated, airport server
