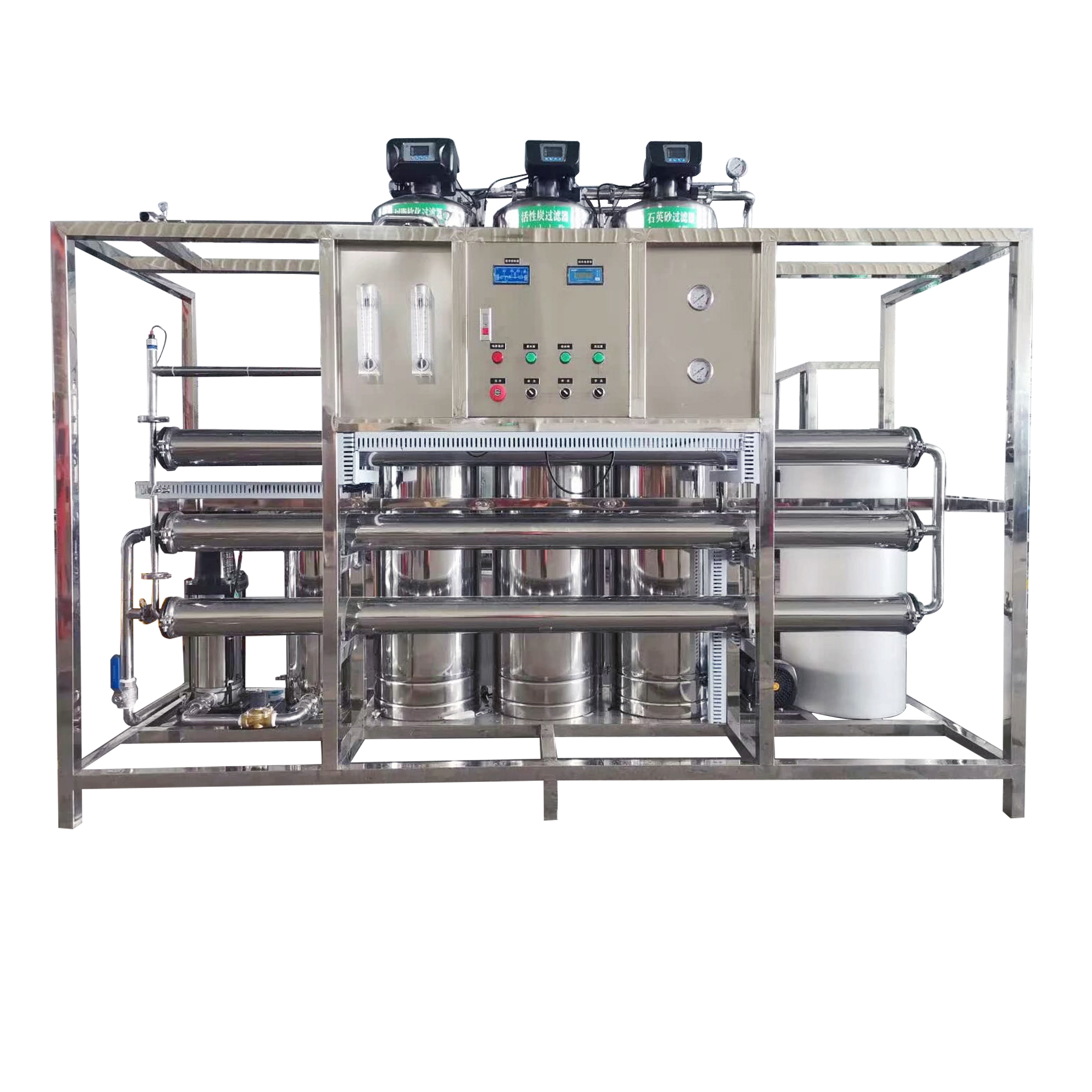

Desalination Salt Water to Drinking Ro Water Treatment Plant Serial Reverse Osmosis Machine

Bottle/Sachet  water

City/Spring water

Brackish Bore hole water

Sea water

Saline/TDS(Mg/L, PPM)

2-10

20-1000

2000-20000

20000-40000

Domestic cooking, washing,drinking

YES

Yes/No

No

No

irrigation, industry,

YES

Yes

No

No

Ro Material

SUS-304

SUS-316

SUS-316/2507

Can it use our system?

Yes, our system can make seawater and brackish (from underground bore hole, river ect.) water i nto fresh drinking pure water .Besides, our system can also make city wate r water into pure bottled or sachet drinking water . In addition, our system can also make pure water into ultra-pure water for special industry using or medical ect.

1.TDS ≤1000Mg/L

2.Fl ≤1.0Mg/L

3.PH=6.5-8.5

4.Total bacterial count≤100Ml

5.SO4≤250Mg/L

6.As≤0.01Mg/L

7.Pb≤0.01Mg/L

ect...

Reverse Osmosis Technology is to purify TDS from your source water with action of pressure difference of semi permeable membranes, which is effectively to remove asbestos, taste, colour, odor, chemicals, radium, particulates, turbidity and total dissolved solid(TDS) ect. Ro system is widely used to offer human drinking water consumption, pure water for power stations, electronic industries and medical treatment ect. It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacterial from the feed water.

1.Your source water details(Is it city water or bore well water,river/lake water....?)
2.What's the capacity for the RO system you need? (Such as successful experience of 500lph, 1000lph to 180000lph)
3.What will you use treated water for? (industrial/commercial/agricultural/domestic human consumption?)

1.Can run and produce water continuously, highly automatically.
2.No need chemical to regeneration, easy operation and maintain.
3.Automatic switch on when lack of raw water, and switch off when no water or full of pure water.
4.RO membrane auto wash and reduce the pollution speed.
5.Low-pressure switch protects high-pressure pump from damage cause by water supply stops.
6.Production water conductivity meter and PH monitors water quality online continuously.

1.Electricity supply: can be 110v-480v, 50hz or 60hz,1 or 3 phases    Total power: Can be customized

2.Pre-treatment: Raw water pump, multi-media filter, carbon filter, Resin filter or Iron removal and security filters

3.Main Core Part: High pressure pump, Ro system,

4.More Optional Parts: Uv sterilizer or Ozone Generator

5.Membranes Protect system: CIP washing system, anti-scale dosing system

Raw water tank

Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system.

Customer provide for themselves, because big size will result in expensive freight.

We can provide CNP pumps or Grundfos pumps, SUS-304/316/2507

China best brand, FRP/SUS-304/SUS-316

China best brand, FRP/SUS-304/SUS-316

Filter housing will use China best brand, can be U-PVC, FRP, SUS-304/316 material

We can provide CNP pumps or Grundfos pumps, SUS-304/316/2507

.Membrane element will use China best brand,SUS304/316/FRP material

Optional Part.

10

Pure Purified Water Tank(buyer offer)

Store Pure Water

Customer provide for themselves to save shipping cost, Suggest SUS-304/316

11

Pure Water Supply Pump

Offering Water to the house

Suggest SUS-304/316 material
