Quick Details
-
Brand Name:
-
JIALONG
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
7*2*1.5 m
-
Product name:
-
semi automatic rotary slotter corrugated carton box making machine
-
Name:
-
die cutter machine for carton boxes
-
Keyword:
-
die cutter machine for carton boxes
-
Way of transmission:
-
chain feeding
-
Painting color:
-
As requirement
-
Rotary cutter diameter:
-
400 mm,530 mm
-
Working speed:
-
0-70 pieces/min
-
Over the paper tickness:
-
500 mm,600 mm,800 mm
-
Communication:
-
English/ Turkish/ Russian/ Spanish/German etc
-
Color:
-
Customer's Requirements
Quick Details
-
Voltage:
-
220 V/380 V
-
Power:
-
30 kw
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIALONG
-
Weight:
-
4500 KG
-
Dimension(L*W*H):
-
7*2*1.5 m
-
Product name:
-
semi automatic rotary slotter corrugated carton box making machine
-
Name:
-
die cutter machine for carton boxes
-
Keyword:
-
die cutter machine for carton boxes
-
Way of transmission:
-
chain feeding
-
Painting color:
-
As requirement
-
Rotary cutter diameter:
-
400 mm,530 mm
-
Working speed:
-
0-70 pieces/min
-
Over the paper tickness:
-
500 mm,600 mm,800 mm
-
Communication:
-
English/ Turkish/ Russian/ Spanish/German etc
-
Color:
-
Customer's Requirements

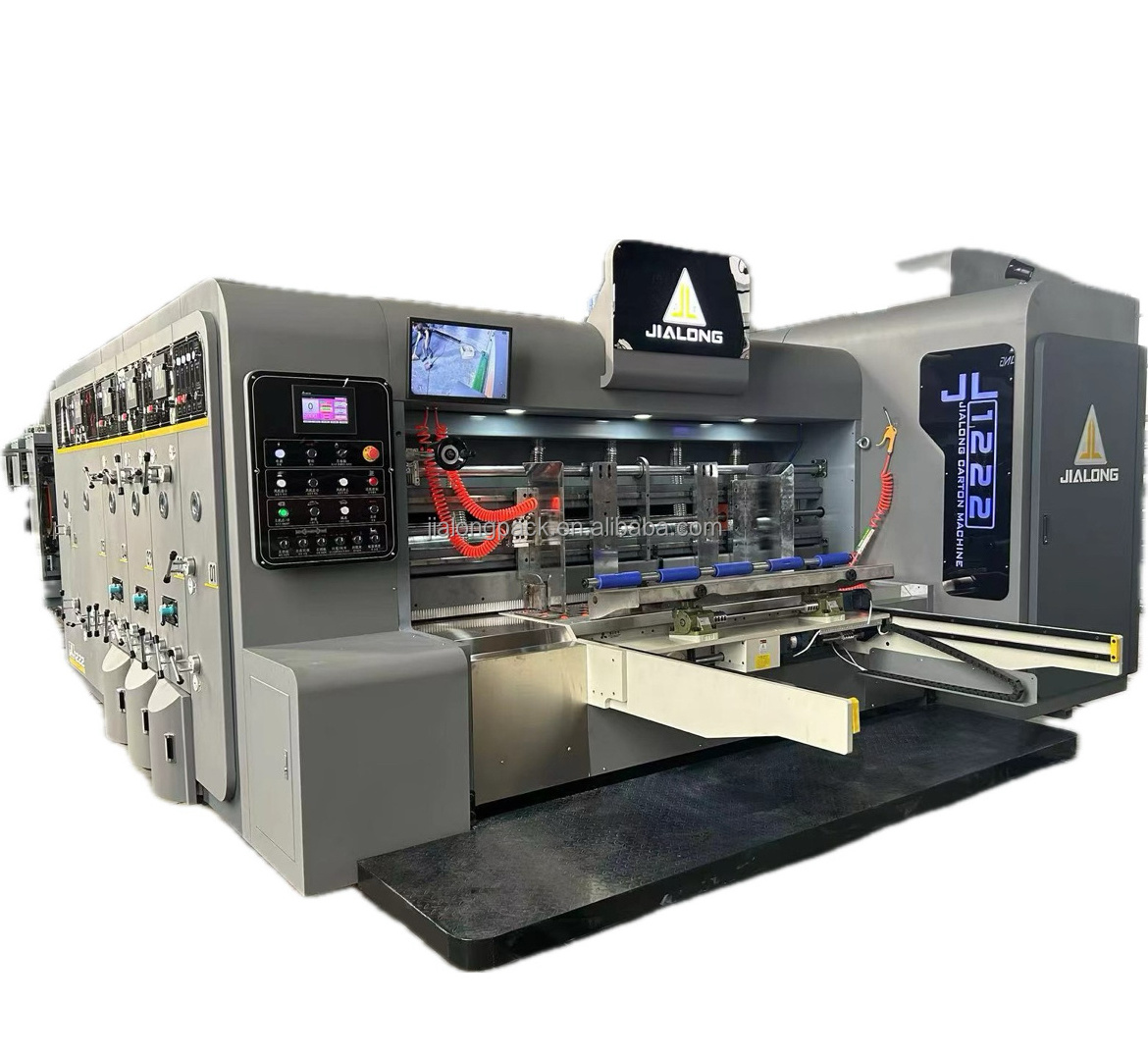

Corrugated Cardboard Printer Rotary Slotter rotary die cutter Machine Corrugated Box printing Slotting Die Cutting Machine
Feeding department:
1. adopt sun feeder,wind absorbing auxiliary paperboard feeding,can make the cardboard feed adoringly. The volume of the wind can
be adjusted accord the camber of the paperboard.
Start protecting device of the main motor, when the machine platform not been locked, the main motor can not running.
2. Continuous and skip cardboard feeding, counting device is install.
3. Double rubber roller for feeding, the rubber roller have slot for prevent the overlarge pressure.
be adjusted accord the camber of the paperboard.
Start protecting device of the main motor, when the machine platform not been locked, the main motor can not running.
2. Continuous and skip cardboard feeding, counting device is install.
3. Double rubber roller for feeding, the rubber roller have slot for prevent the overlarge pressure.
Printing department:
1. The printing roller adopt without gap roller, surface is treated by lapping finish,after balance correct and hard chrome plating,smooth is operation.
2. Quickly change printing plate device, foot switch for electric control the printing roller's clockwise and anticlockwise
running.
3. The feed roller,press roller, rubber roller and anilox roller space adjustment all adopt self-locking structure.
4. The phase of the printing roller adopt PLC and electric 360°adjust,accord the error to input ter with double knives slotting,
the height of the carton adopt PLC and electric input data adjustment(PLC with touch screen adjustment as an option)
2. Quickly change printing plate device, foot switch for electric control the printing roller's clockwise and anticlockwise
running.
3. The feed roller,press roller, rubber roller and anilox roller space adjustment all adopt self-locking structure.
4. The phase of the printing roller adopt PLC and electric 360°adjust,accord the error to input ter with double knives slotting,
the height of the carton adopt PLC and electric input data adjustment(PLC with touch screen adjustment as an option)
Slotting department:
1.The phase of the slotting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data,can be adjusted while
the machine running or stop. (PLC with touch screen adjustment as an option)
2.The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment.
3. Creasing space and knife roller space adjustment adopt self-locking structure.
4. The carton height adjustment have a anticollision device for the slotting knives, will not destroy the machine.
the machine running or stop. (PLC with touch screen adjustment as an option)
2.The slotting knives and the creasing wheels horizontal moving adopt electric synchronous adjustment.
3. Creasing space and knife roller space adjustment adopt self-locking structure.
4. The carton height adjustment have a anticollision device for the slotting knives, will not destroy the machine.
Die-cutting department:
1. The rubber roller adopt mechanical control the position move left and right the movement distance is 40mm.
2. The phase of the die-cutting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data, can be adjusted
while the machine running or stop(PLC with touch screen adjustment as an option)
3. The horizontal direction moving of the printing roller adopt PLC and electric adjustment, input the adjust data accord the
error, adjustment distance is 10mm(PLC with touch screen adjustment as an option)
4. The space adjustment between rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust,
decrease the rubber wear, increase the rubber life.
5. The space adjustment between the feed roller adopt self-locking structure.
2. The phase of the die-cutting unit adopt PLC and electric 360°adjust, accord the error to input the adjust data, can be adjusted
while the machine running or stop(PLC with touch screen adjustment as an option)
3. The horizontal direction moving of the printing roller adopt PLC and electric adjustment, input the adjust data accord the
error, adjustment distance is 10mm(PLC with touch screen adjustment as an option)
4. The space adjustment between rubber roller and die roller adopt self-locking structure, with cylinder big scope quickly adjust,
decrease the rubber wear, increase the rubber life.
5. The space adjustment between the feed roller adopt self-locking structure.
