Quick Details
-
Brand Name:
-
DLX
-
Power (kW):
-
2.2
-
Weight (KG):
-
220
-
Marketing Type:
-
Hot Sale Product 2021
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Bending diameter range:
-
10-26mm steel pipe (wall thickness less than 2mm)
-
Bending angle range:
-
5 degrees - 180 degrees
-
Spindle speed:
-
20 rpm
-
Motor power:
-
2.2KW
-
Rated voltage:
-
three-phase AC 380V 520HZ
-
Machine weight:
-
180KG
-
Machine size:
-
800mm*650mm*900mm
-
Product:
-
YWG-25 CNC Tube Bending Machine
-
Used for:
-
stainless steel pipe bending machine, iron and aluminium pipe
Quick Details
-
Max. Bending Angle (Deg):
-
180
-
Bending Precision (Deg):
-
1°
-
Place of Origin:
-
China
-
Brand Name:
-
DLX
-
Power (kW):
-
2.2
-
Weight (KG):
-
220
-
Marketing Type:
-
Hot Sale Product 2021
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Bending diameter range:
-
10-26mm steel pipe (wall thickness less than 2mm)
-
Bending angle range:
-
5 degrees - 180 degrees
-
Spindle speed:
-
20 rpm
-
Motor power:
-
2.2KW
-
Rated voltage:
-
three-phase AC 380V 520HZ
-
Machine weight:
-
180KG
-
Machine size:
-
800mm*650mm*900mm
-
Product:
-
YWG-25 CNC Tube Bending Machine
-
Used for:
-
stainless steel pipe bending machine, iron and aluminium pipe

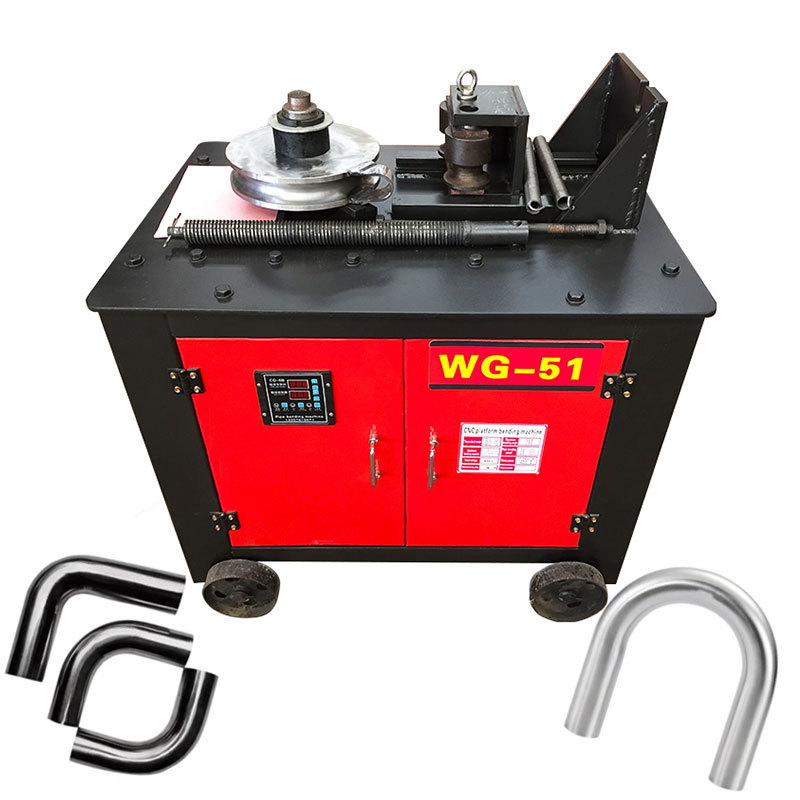

WG 26/38/51/76 Hydraulic Automatic CNC SS Square Steel Pipe And Tube Bending Machines Pipe Bender
WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials,for example round or square mild carbon steel tube,201 or 304 stainless steel tube,rectangular steel tube,alumimum tube,cooper tube or other special shaped steel tube etc. And this machine always bend tubes into different angles from 5 to 180 degrees.
This model is our latest technical achievements of the research and development.Having the following characteristics:
1.Use Micro CNC computer panel control the bending angles and batches.
2.Gear drive is durable and maintenance is convenient,only add the grease oil into the gear box.
3.Thin tube and thick tube could work well by this machine.
4.Foot switch add CNC operation,let the tube processing so easy and convenient.
| Electric Small Semi-Automatic CNC Pipe Bending Machine Technical Parameter | |||||
| Model | WG-26 | WG-38 | WG-51 | WG-76 | WG-76Heavy |
| Engine Type | Electric Type | ||||
| Bending diameter | ≤26mm | ≤38mm | ≤51mm | ≤76mm | ≤76mm |
| Thickness Scope | ≤2mm | ≤3mm | ≤3mm | ≤3mm | ≤5mm |
| High bending speed | 10-20r/min | 10-20r/min | 4-6r/min | 3-5r/min | 3-5r/min |
| Bending Angles Quantity | 9 | 9 | 9 | 9 | 9 |
| Max bending angle | 180° | 180° | 180° | 180° | 180° |
| Min bending angle | 5° | 5° | 5° | 5° | 5° |
| Motor Power | 2.2kw | 3kw | 3kw | 4kw | 5.5kw |
| Power supply | 380V,50Hz,3Phase Alternating Current Or Customized | ||||
| Foot switch voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
| Dimensions(mm) | 800*650*900 | 900*800*1000 | 950*850*1000 | 1000*900*1100 | 1100*900*1100mm |
| Weight | 180KG | 260kg | 320kg | 350kg | 400kg |
|
Hydraulic CNC Pipe Bending Machine Technical Parameter |
||||||
|
Model |
YWG-38 | YWG-51 | YWG -76 | YWG -100 | YWG -114 | YWG -150 |
| Engine type | Hydraulic | |||||
| Bending diameter | ≤38mm | ≤51mm | ≤76mm | ≤100mm | ≤114mm | ≤133mm |
| Thickness scope | ≤3mm | ≤4mm | ≤5mm | ≤3mm | ≤5mm | ≤5mm |
| motor power | 3KW | 4KW | 5.5KW | 7.5KW | 9KW | 11KW |
| power supply | 380V 50HZ three phase or customized | |||||
| dimensions | 1200*700*1100 | 1300*900*1100 | 1800*900*1350 | 2000*1000*1350 | 2200*1100*1400 | 2400*1200*1400 |
| weight | 360KG | 480kg | 900kg | 1200kg | 1500kg | 2200kg |
Packing a nd Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
