Quick Details
-
Material:
-
Silicone, Silicon Conductive
-
Rated Voltage:
-
220V
-
Tensile Strength:
-
10.4Mpa
-
Color:
-
Customized
-
Thermal conductivity:
-
1.5~5.0W/m.K.
-
Breakdown Voltage:
-
Over 6 KV/mm
-
Size:
-
Customized
-
Continous use Temp:
-
-40~200 Degree
-
Thickness:
-
0.25mm-20mm(Support customization)
-
Flame Rating:
-
UL94V0
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LaimeiSi
-
Model Number:
-
LMS-TC
-
Material:
-
Silicone, Silicon Conductive
-
Rated Voltage:
-
220V
-
Tensile Strength:
-
10.4Mpa
-
Color:
-
Customized
-
Thermal conductivity:
-
1.5~5.0W/m.K.
-
Breakdown Voltage:
-
Over 6 KV/mm
-
Size:
-
Customized
-
Continous use Temp:
-
-40~200 Degree
-
Thickness:
-
0.25mm-20mm(Support customization)
-
Flame Rating:
-
UL94V0
Products Description

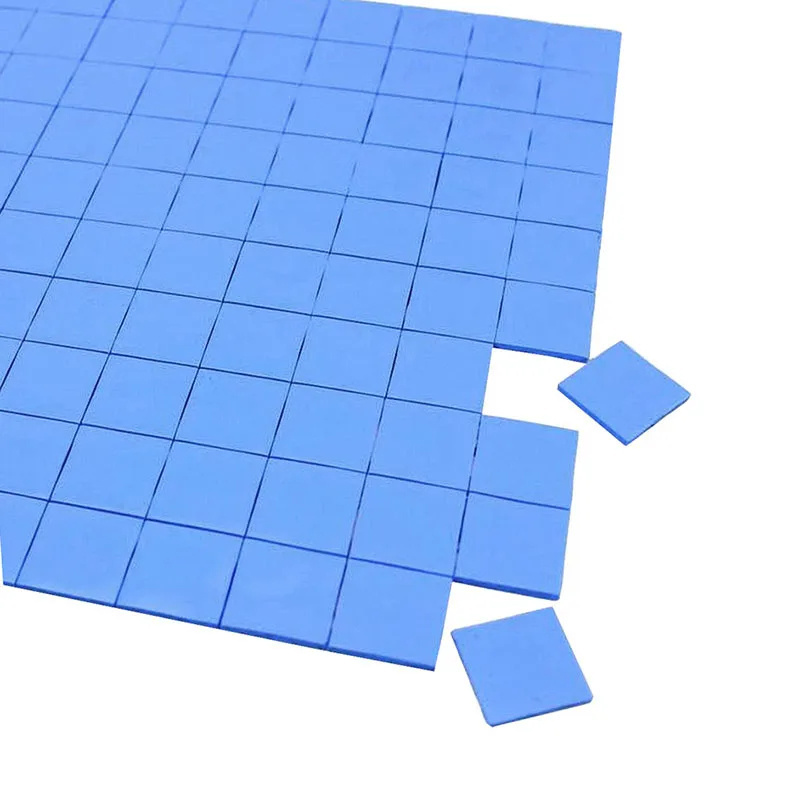

Thermal conductive silicone sheet has excellent thermal conductivity and electrical insulation performance, which can meet the thermal insulation requirements of most electronic products. Itis a thermal conductiveinterface material that fills the air gap between the heating device and the heat sink or metal base.
◆ Thickness: 0.25-20mm.
Other special thicknesses can be customized according to customer requirements.
◆ Sheet specifications: 200mm * 400mm, 300mm * 300mm
◆ Sheet specifications: 200mm * 400mm, 300mm * 300mm
can be cut and stamped according to customer needs.
◆ Roll specification: 300mm * 50m.
◆ Roll specification: 300mm * 50m.
|
Product Name
|
Thermal pad
|
|
|
||
|
Test items
|
LMS-TC test value
|
Unit
|
Test method
|
||
|
Color
|
White or Customized
|
|
Visual
|
||
|
Thickness
|
0.3-20.0
|
mm
|
ASTM D374
|
||
|
Density
|
2.3±3.5
|
g/cm3
|
ASTM D792
|
||
|
Main ingredients
|
Silicone
|
|
|
||
|
Hardness
|
25-40
|
Shore C
|
ASTM D2240
|
||
|
|
25-40
|
|
|
||
|
Tensile Strength
|
>0.5
|
Mpe
|
ASTM D412
|
||
|
Volume Resistivity
|
>1.8*1011
|
Ω.cm
|
ASTM D257
|
||
|
Continous Use Temp
|
-60~+200
|
℃
|
EN344
|
||
|
Flame Rating
|
V0
|
|
UL-94
|
||
|
Thermal conductivity
|
1.5~13
|
W/m.k
|
ASTM 5470
|
||
