Quick Details
-
Voltage:
-
380V-480V (TBD)
-
Power:
-
53 Kw
-
Dimension(L*W*H):
-
5.7*2.6*3.3 m
-
Weight (KG):
-
6000
-
Marketing Type:
-
Hot Product 2023
-
Evaporation Capacity(kg/h):
-
120-200
-
Product Type:
-
Hot Air Circulating Dryer
-
Function:
-
Drying+Dehumidity
-
Usage:
-
80% moisture content reduced to less than 20%
-
Name:
-
Drying chamber
-
After-sales Service Provided:
-
Online support, Video technical support, Field service
-
Controller:
-
SCM+PLC+Touch Screen
-
Dryig process:
-
Continuous Automatic Drying
-
Temperature range:
-
60-75℃
-
MOQ:
-
1set
Quick Details
-
Type:
-
Heat pump dryer
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
Teconway
-
Voltage:
-
380V-480V (TBD)
-
Power:
-
53 Kw
-
Dimension(L*W*H):
-
5.7*2.6*3.3 m
-
Weight (KG):
-
6000
-
Marketing Type:
-
Hot Product 2023
-
Evaporation Capacity(kg/h):
-
120-200
-
Product Type:
-
Hot Air Circulating Dryer
-
Function:
-
Drying+Dehumidity
-
Usage:
-
80% moisture content reduced to less than 20%
-
Name:
-
Drying chamber
-
After-sales Service Provided:
-
Online support, Video technical support, Field service
-
Controller:
-
SCM+PLC+Touch Screen
-
Dryig process:
-
Continuous Automatic Drying
-
Temperature range:
-
60-75℃
-
MOQ:
-
1set
Heat Pump Drying Machine
* Low energy solution for sludge reduction.
* Service for Volkswagen and Daimler plants in China.
* Heat energy recycling / Solid content reach 90% after drying /Full engineering technical support
* Service for Volkswagen and Daimler plants in China.
* Heat energy recycling / Solid content reach 90% after drying /Full engineering technical support
Products Description
Principle of air source heat pump drying machine
When the heat pump dryer is running，the air is circulated in the closed space composed of the drying chamber and the heat pump unit. The hot air passes through the materials to take away the water, and passes through the heat pump evaporator. The low temperature refrigerant in the evaporator absorbs heat, so that the air temperature is reduced and the water is condensed and drained. The saturated air after dehumidifying is then passed through the condenser of the heat pump, where the high heat refrigerant heats the air. And, the dry hot air blows into the drying chamber again to dry the materials. During this process, the heat pump system will be running automatically by the SCM according to the set temperature.
Working Process of the mesh belt drying machine
The
mesh belt drying machine
is usually equipped with a slitter, shredder or paver at the feed port of the drying chamber, and 2-3 layers of mesh belts are equipped in the drying chamber. Materials after shredding fall onto the mesh belt and transferred by the belts from top to bottom layer by layer. The hot air entering the drying chamber passes through the mesh belts and the materials from bottom to top, takes away the water, and return into the heat pump unit for dehumidification and heating from the upper return air outlet of the drying chamber, and then back to the drying chamber.
The

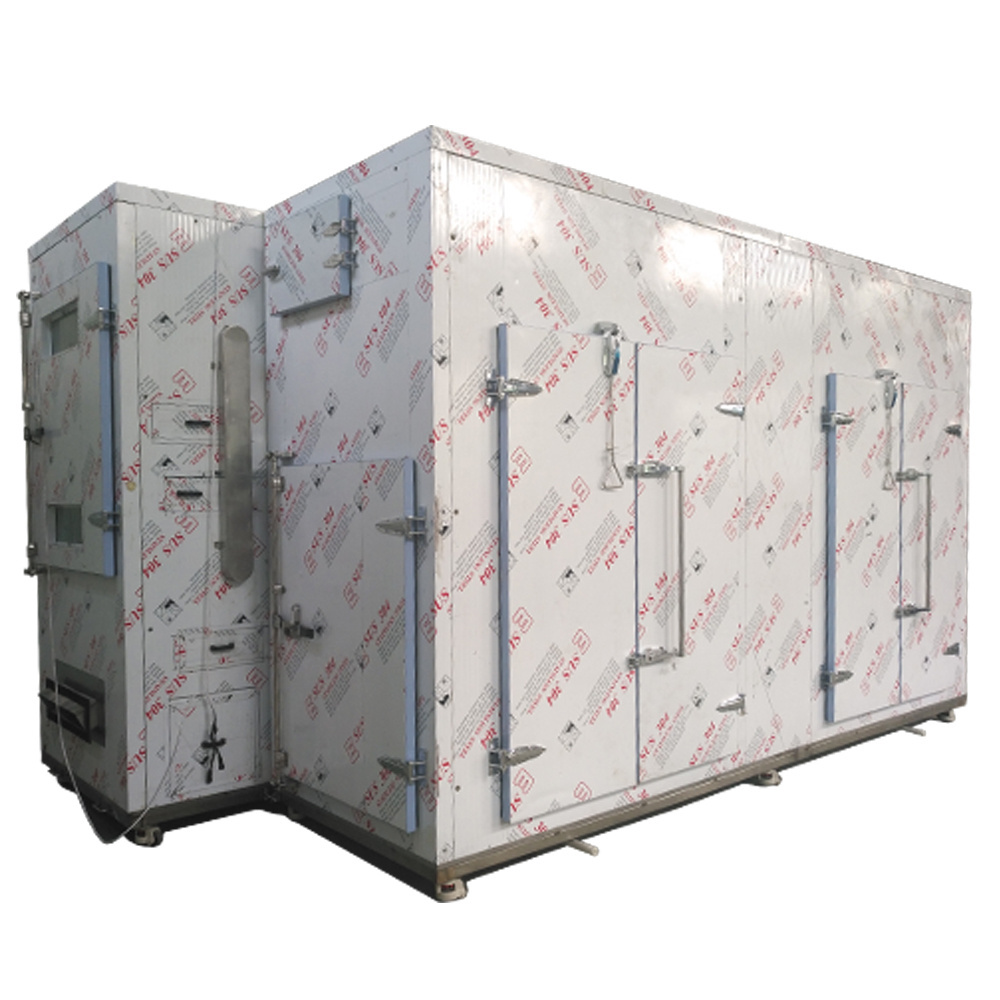

box drying machine,
or
drying chamber
for short, is provided with the door to facilitate the entry and exit of the material boxes or racks. The boxes and racks are designed and manufactured according to the material characteristics and drying amount. While the machine running, the dry and hot air passes through the boxes or racks from bottom to top to dry the materials.
Details Images
Corrosion resistant heat exchanger
S
tructure
specially designed and applied nano coating on the surface to improve the corrosion resistance
Well-known brand heat pump parts and electrical parts
Copeland / Danfoss compressor
Saginomiya / Danfoss EEV
Saginomiya / Danfoss EEV
Siemens / Schneider electrical components
Reasonable position of compressors and fans
The compressors and inlet air fans are installed outside the air duct to isolate the high temperature and humidity environment, improve reliability and prolong service life
Large access doors
Easy for maintenance and repairment
Condensate water recycling and cooling technology
Fully utilizing the low temperature characteristics of the condensed water, sufficiently cools the return air, improves the dehumidification efficiency.
Sludge dust automatic collection conveyor
A belt chain conveyor is designed and equipped at the bottom of the drying chamber for collecting and transporting the falling sludge dust automatically.
A stainless-steel scraper conveyor is as an alternative improvement scheme.
Centralized lubricating
The mesh belt bearings and sludge slitter bearings can be centrally lubricated by the system for easy operation and avoid omitting.
Centralized lubricating
The stirring structures and slitting roller grooves could be customized for various of sludge.
The Optional intelligent fault-tolerant sludge slitter is specially designed and manufactured for sludge with more hard impurities
The Optional intelligent fault-tolerant sludge slitter is specially designed and manufactured for sludge with more hard impurities
Customer Photos
Why Choose Us
Production Line
Certifications
Packing&Shipping
FAQ
Q1: Are you trading company or manufacture?
A1: We are professional manufacturer with 20+ years experiences.
Q2: Where is your factory located?
A2: Dezhou City of Shandong Province, which is very close to Beijing,Tianjin,Qingdao.
Q3: Do you provide OEM service?
A3: Yes. Any required logos is available.
Q4: How about the production capacity of your company?
A4: Our factory covers area over 8,000M2 and produces machines 100 sets per year.
Q5: How could we trust you and your company? This is first time transaction?
A5: Our company has long term professional experience. We cooperate over 1000 customers in China and overseas. We export nearly 40 countries all over the world. Welcome to our company and visit our plant production condition any time.
Q6: Do you offer oversea service?
A6: We provide full engineering design support to service customer overseas. Also, we will provide you manuals, photos and/or videos to help you to operate and maintain the machine.
Q7: How long is your warranty?
A7: One year after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q8: What about your delivery time?
A8: Normally within 45 days against down payment.
Q9: What about the package of your export product?
A9: We use anticorrosion wooden case with foam inside.
Q10: What kind of transportation do you offer?
A10: Customers decide freight mode, Air, Land & Sea
