Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
iStartek
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

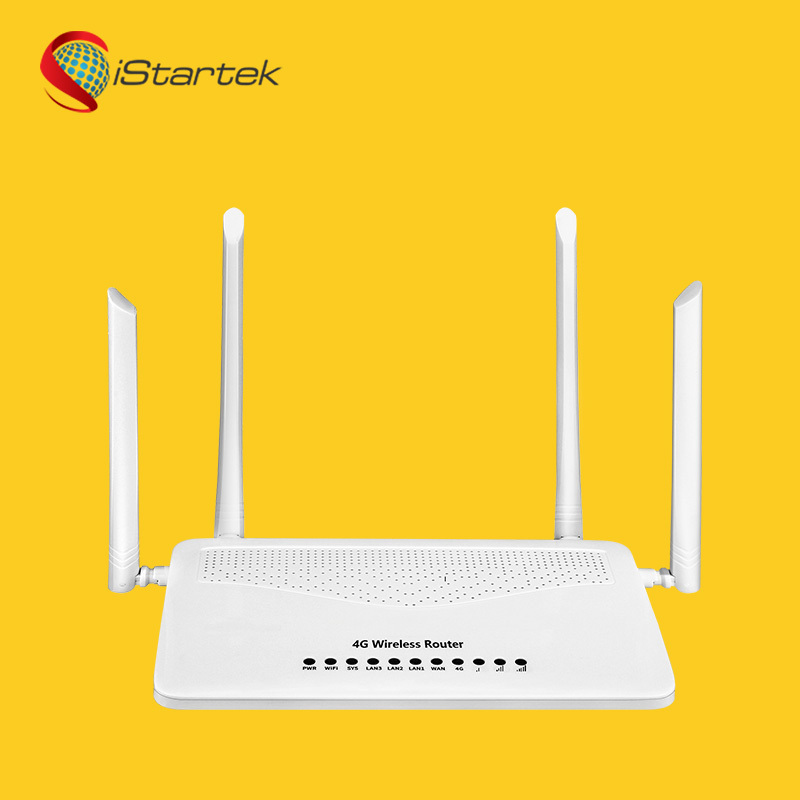

broadband wifi hotspot sim 4g lte cpe router
-
Usage:
-
For Outdoor and Home
-
Form Factor:
-
CPE
-
LTE Chipset:
-
MDM9x07
-
Power Voltage:
-
9V/12 V 1.0A-2.0A
-
RAM:
-
512Mb DDR2
-
Wireless communication Speed:
-
2.4Ghz 2T2R MIMO max300Mbps
-
Operating Temperature:
-
-10°C to +65°C;
-
Power Consumption:
-
Typical power consumption <7W
-
Warranty:
-
1 Years
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
iStartek
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
broadband wifi hotspot sim 4g lte cpe router
-
Usage:
-
For Outdoor and Home
-
Form Factor:
-
CPE
-
LTE Chipset:
-
MDM9x07
-
Power Voltage:
-
9V/12 V 1.0A-2.0A
-
RAM:
-
512Mb DDR2
-
Wireless communication Speed:
-
2.4Ghz 2T2R MIMO max300Mbps
-
Operating Temperature:
-
-10°C to +65°C;
-
Power Consumption:
-
Typical power consumption <7W
-
Warranty:
-
1 Years
Free Sample Factory outdoor indoor routeur dual 3g wireless band broadband wifi hotspot sim 4g lte cpe router
Click us: Cheapest Wireless Router From Factory
|
3G/4G Signal To Lan Insert relevant SIM card, then you can transmit the 3G/4G signal to Lan |
|
3G/4G Signal to WIFI Signal Insert relevant SIM card, then you can transmit 3G/4G signal to wifi signal |
|||
|
Hardware Watch Dog Design Support Support anticrash functions. Protect equipment work stable and reliable |
Compatible With Power Bank Charging
Equipped with a micro USB interface, which does not need a voltage convert line and can be charged directly with power bank |
||||
|
4 High Gain Antennas Inbuild dual 3G/4G antennas+duel 2.4G antennas), to keep strong signal receiving |
Strong Heat Dissipation Add UART port, GPIO port, and micro USB port, multi-interface to meet your different needs |
|||||
|
Industry Grade PCB Board Used brand chipset and PCB design, with overcurrent protection more stable and safe |
Support 32Max Terminal Customers In 300mbps wifi mode, you can connect up to 32 users or terminals at the same time |
What Benefits You Can Get from Choosing Our Products?
1.
Sell 4G Wireless Router hardware and Sim Cards at the same time, with traffic recharge profit.
2. Have CE, FCC, ISO9001 quality certificate with 100% strict quality control to reduce after-sales cost.
3.
Meet
most
main market requirement.
4. OEM and ODM service available for projects.
Application:
| Mobile Phone and Computer Game | Free Broadband In the Countryside | Surfing the internet in Shops | Provide the Network to Camera |
| Outdoor Tourism | Webcast | Online Movie | Office Network |
Specification:
| Device Model | MC118 4G Wireless Router | |
| CPU | MTK RT7628, MIPS CPU, Basic frequency: 580Mhz | |
| LTE Chipset | USE 9X07 | |
| RAM | 512Mb DDR2 | |
| Flash | 64Mb SPI Flash | |
| Wireless communication Speed | 2.4Ghz 2T2R MIMO max300Mbps | |
|
Optional Version
CAT4 |
TD5
MDM9607, CAT4 (Aisa, Euro, Au, LA, AF, Middle East, Ocean) |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28
TDD-LTE: B38/39/40/41 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 CDMA&EVDO: BC0 GSM: 850/900/1800/1900 |
|
TE5
MDM9207, CAT4 (Asia, Africa, Euro, AU) |
LTE FDD: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/39/40/41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900 |
|
| ML7820+ XCI_SU |
FDD-LTE B1/3/5/8
TDD-LTE B34/38/39/40/41 TDS B34/39 +WCDMA B1/8 |
|
| ML7820+ CeI_SU |
FDD B1/3/5/8
TDD B38/39/40/41 TDS B34/39 WCDMA B1/8 GSM 900/1800 |
|
|
Optional Version
CAT6 |
Coming Soon | |
| Note: Customization of 3G.4G frequencies are available. | ||
|
Data service
CAT4 |
TDD-LTE | 3GPP R9 CAT4 DL: 112.5Mbps, upload speed: 12.5Mbps |
| FDD-LTE | 3GPP R9 CAT4 DL: 150Mbps, upload speed: 50Mbps | |
| WCDMA | DL: 21Mbps, upload speed: 5.76Mbps | |
| TD-SCDMA | DL: 2.8Mbps, upload speed: 2.2Mbps | |
| EDGE | Class12, DL: 236.8kbps, upload speed:118kbps | |
| GPRS | Class10, DL: 85.6kbps, upload speed: 85.6kbps | |
| GSM | CSD:9.6kbps | |
| Transmit power |
TD-LTE/FDD-LTE: +23 ±2dBm(Power class 3)
TD-SCDMA:24dBm +1dB/-3dB (power class 2) WCDMA: +24 +1/-3dBm(Power class 2) GSM B5/8: +33 ±2dBm(Power class 4) GSM B2/3: +30 ±2dBm(Power class 1) |
|
| Interface Type | micro USB DC IN power port *1(5-12V adaptive) | |
| 5.5*2.1mm DC IN port port *1(5-12V adaptive) | ||
| RESET button *1 | ||
| LAN*4 (WAN/LAN0adaptive)10/100Mbpsadaptive | ||
| Indicator | PWR WiFi SYS LAN3 LAN2 LAN1 WAN/LAN0 4G/3G 30% 60% 100% | |
| Antennas | Dual external high gain 4G/3G omnidirectional antenna | |
| Dual external high gain 2.4G omnidirectional antenna | ||
| Device Color | White | |
| Device Size | 19.5*12.2*2.6 (not including antennas) | |
| Power Consumption | Typical power consumption <7W | |
| Protocol Standard | IEEE 802.11b/g/n | |
| Operating Frequency | 2.4G | |
| Default Gateway | 192.168.10.1 | |
| Default SSID | 4G-CPE-**** | |
| Default Password | 12345678 | |
| Working Mode | 3G/4G Wireless router mode | |
| Standard router mode | ||
| Wireless AP+Wireless client bridging mode | ||
| Wireless AP+Client mode | ||
| Working Temperature | —10℃ to 40℃ | |
| Storage Temperature | —40℃ to 70℃ | |
| Operating Humidity | 40% to 90% RH No condensation | |
| Storage Humidity | 10% to 95% RH No condensation | |
1. Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
2. Do you accept PCBA orders only?
Of course, as an OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
3. Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
4. Do you....?
Maybe, why don't contact us now! Inquiring us to see if we can, or if we do, to see if we can surprise you!
