- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Herda
-
Model Number:
-
H358D
-
Dimensions:
-
290*60*40mm
-
Frequency Range:
-
VHF: 136-174MHz; UHF: 400-470MHz
Quick Details
-
Talk Range:
-
Up to 30km
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16 Channels
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Herda
-
Model Number:
-
H358D
-
Dimensions:
-
290*60*40mm
-
Frequency Range:
-
VHF: 136-174MHz; UHF: 400-470MHz
Products Description
*
We offer a one-year warranty on all items, and our experienced team is always ready to help you.
The walkie-talkie is small yet rugged, designed to be durable and reliable in any situation.
Its improved design ensures a wider communication range and better audio quality.
The high-capacity 3800mAh battery allows for up to 20 hours of talk time on a single charge.
The device features a large, user-friendly knob for quick channel and volume adjustments, even with gloves on.
Main Functions:
5W High Power Output, adjustable (Programming software needed)
Extra Customizable Function Button
Channel Scan
CTCSS/DCS (Support non-standard codes for DCS)
High and Low Power Mode (Needs programming)
Companding
Busy Channel Lockout (BCL)
DTMF
Send Code/Set
VOX
Scrambler
Time-out-timer (TOT) function
Battery Save Mode
Read/Write Frequency Encryption
Voice Notification
Product Paramenters
|
General
|
|
|
|
Frequency Range
|
VHF: 136-174MHz
UHF: 400-470MHz
|
|
|
Channel Capacity
|
16 Channels
|
|
|
Channel Spacing
|
25KHz, 12.5KHz
|
|
|
Operating Voltage
|
DC 7.4V ±15%
|
|
|
Battery
|
3800mAh
|
|
|
Battery Life
|
Up to 20 Hours (5/5/90 Duty Cycle, High TX Power)
|
|
|
Frequency Stability
|
±2.5ppm
|
|
|
Antenna Impedance
|
50Ω
|
|
|
Dimension (L*W*H)
|
285 mm × 60 mm × 35 mm (11.22 in × 2.36 in × 1.38 in)
|
|
|
Weight
|
About 300g (10.58oz)
|
|
|
Transmitter
|
|
|
|
RF Power Output
|
5 Watts, 12 Watts
|
|
|
Modulation Mode
|
F3E
|
|
|
Frequency Stability
|
±2.5ppm
|
|
|
Adjacent Channel Power
|
Wide Band: ≤-65dBc
Narrow Band: ≤-55dBc |
|
|
Modulation Distortion
|
≤5%
|
|
|
Modulation Limitation
|
≤5KHz (25KHz)
≤2.5KHz (12.5KHz) |
|
|
Spurious Emission
|
≤-36dBm
|
|
|
Receiver
|
|
|
|
Sensitivity
|
<0.16μV (12dB SINAD)
|
|
|
Adjacent Channel Selectivity
|
≥60 dB
|
|
|
Intermodulation
|
≤60 dB
|
|
|
Spurious Response
|
≤70 dB
|
|
|
Signal-to-noise Ratio (SNR)
|
≥45 dB
|
|
|
Rated Audio Power Output
|
≥0.5W±10%
|
|
|
Rated Audio Receiving Distortion
|
≤5%
|
|

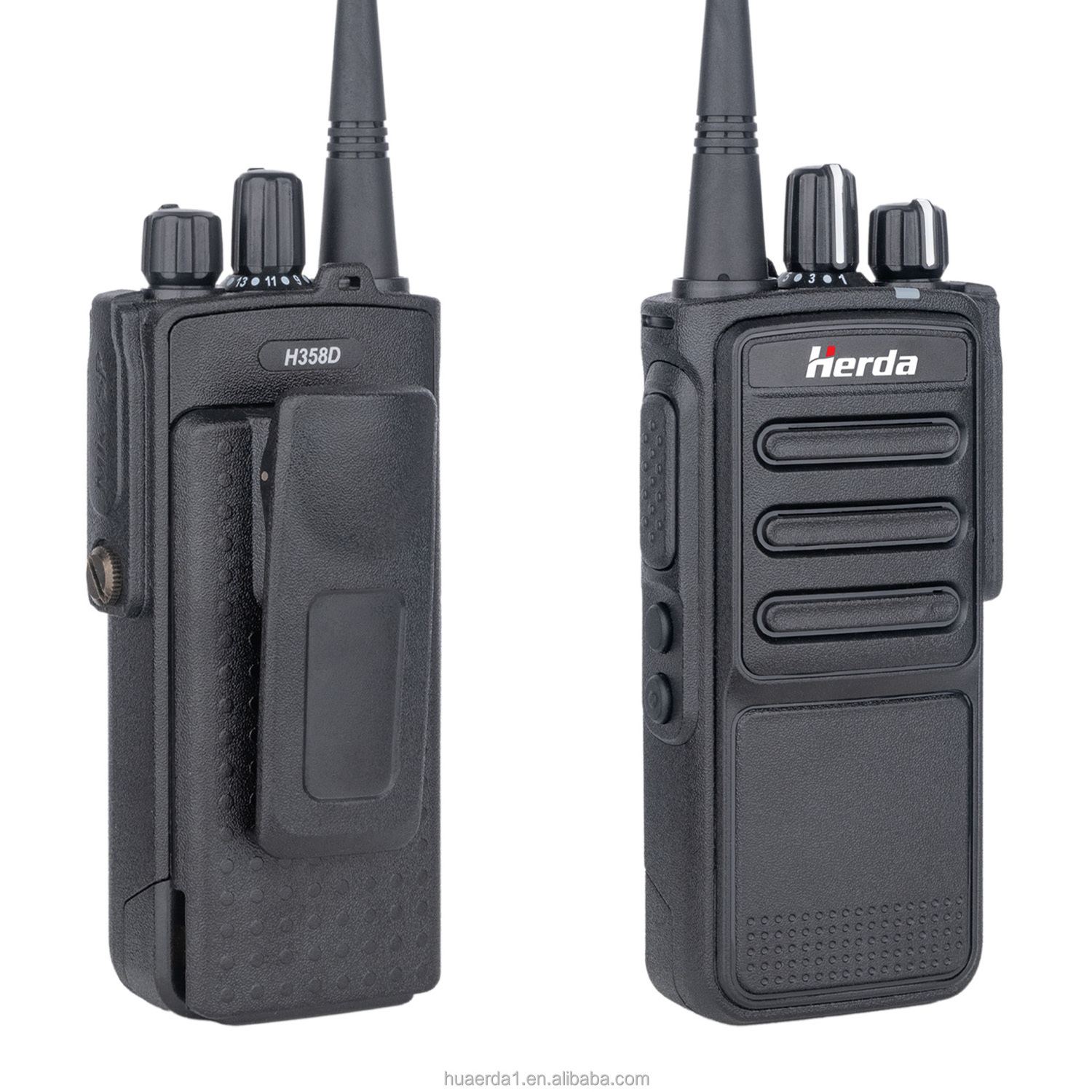

Details Images
Product packaging
FAQ
What Determines the Price of Products?
The cost of your order is influenced by its size. Simply put, the more you order, the better the price you'll receive. This is thanks to our efficient bulk purchasing and production methods.
What Is the Warranty Period of Products?
We're proud to offer a one-year warranty on all our products. Should any non-human-related issues arise within this time, we'll happily provide free repairs or replacements.
Can I Customize the Product Logo and Packaging?
Absolutely! We can personalize logos and packaging to suit your needs. Just note that there's a Minimum Order Quantity (MOQ) for custom orders. Feel free to send us your branding details for a customized solution.
What Is the Manufacturing Time?
While manufacturing times can vary, we generally aim to have your order ready and shipped within 7 working days.
What Payment Methods Are Supported?
We're flexible when it comes to payment. You can choose from options like T/T, L/C, or Paypal, and we accept multiple currencies including CNY and USD. Payment is kindly requested before we ship your order.
