Product Name:
-

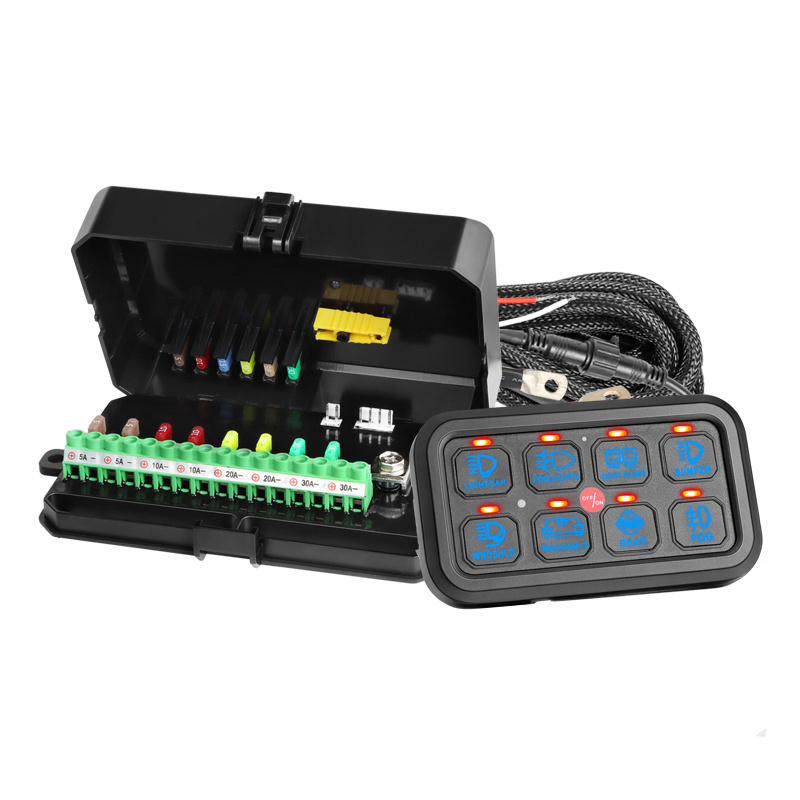

8 gang led switch panel
-
Panel Size:
-
4.5inch (L) x 2.5inch (W) x 0.5inch (H)
-
Control Box Size:
-
7.4inch (L) x 4.3inch (W) x 1.3inch (H)
-
Label:
-
50PCS
-
Backlit Color:
-
Blue
-
Backlit Brightness:
-
Manual adjustable
-
Brightness Options:
-
5 Different options
-
Light Mode:
-
Toggle, Momentary, Pulsed
-
Max. Current:
-
60 Amps
-
Power Handling:
-
720W at 12V, 1440W at 24V
Quick Details
-
OE NO.:
-
NO
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM ODM
-
Model Number:
-
0105-SP-8B
-
Car Make:
-
All
-
Product Name:
-
8 gang led switch panel
-
Panel Size:
-
4.5inch (L) x 2.5inch (W) x 0.5inch (H)
-
Control Box Size:
-
7.4inch (L) x 4.3inch (W) x 1.3inch (H)
-
Label:
-
50PCS
-
Backlit Color:
-
Blue
-
Backlit Brightness:
-
Manual adjustable
-
Brightness Options:
-
5 Different options
-
Light Mode:
-
Toggle, Momentary, Pulsed
-
Max. Current:
-
60 Amps
-
Power Handling:
-
720W at 12V, 1440W at 24V
Products Description
Why switch panel power system?
This switch panel power distributon system makes installing aftermarket led lights or electronic car devices or camping devices so much easier! It offers perfect solution to clean up all wiring harness mess through a single panel and compact size circuit control box. This switch panel system allows you to connect and control eight car auxiliary LED light bars or LED fog driving lights or other electronic devices once a time.
What's In the Box:
(1) Switch panel
(2) Switch panel mount brackets
Switch panel extension wire
Switch panel harness
(1) Control box
(1) Control box mount bracket
Control box power harnesses
(1) 60 Amps circuit breaker
(6) Back up auto fuses
50 Switch labels
Mount hardware and zip ties
Installation sheet
|
Switch Panel Specifications
|
|
|
|
Panel Size
|
4.5 x 2.5 x 0.5 inch
|
|
|
Material
|
ABS button and aluminum frame
|
|
|
Switch Quantity
|
8 Buttons
|
|
|
Control Box Size
|
7.4 x 4.3 x 1.3 inch
|
|
|
Maximum Input
|
12 ~ 24 volt
|
|
|
Current Draw
|
60 Amps max.
|
|
|
Output Power
|
720W ~ 1440W
|
|
Toggle, Momentary, Pulsed
There are 8 switches of the panel, each button can be programmed into three lighting modes, including Toggle for common sense led light on and off, Momentary mode mostly used for horn honk, Pulsed mode for led lights having a strobe flashing effect for warning or emergency. Known well as
offroad lighting switchboard, this
8 gang switch panel kit for vehicle is a must-have today!
Blue Backlit
There are FIVE different levels of the backlight brightness of this 8 gang switch panel power system which could be set up via the smaller size white cable given in the package. End users could wire the white cable to, for instance, the parking light, when the switch panel is powered on with ignition you pull the parking light switch to adjust the brightness. Pull it five times and you will get five different backlit brightness. Turn off the ignition until you get the brightness you need. And next time when you turn the ignition back on, you will get the brightness of your last setting.
User Selectable Switch Legends
By default, there is a sheet of 50 stickers. 45 of them are printing with labels and icons, 5 of them are black and blank. Users could select the needed legends during installation, and stick the blank stickers on it if you are not going to use all 8 switches for the beginning, so the blank circuit will not shine too much and being distrupted during night or daytime driving.
12-24 Volt Fitment
T
his complete package of power control system fits for all 12 or 24 volt vehicles, pickup, truck, powersports, utv, boat, marines,suv, etc. Available with flexible or fix mount brackets. For most of the cases, users can mount the it overhead the rear view mirror or overhead liner, onto the dashboard, nearby the steering wheel, or take the place of the factory ashtray, or in the car trunk bed, etc.
FAQ
Question: Is the switch button waterproof?
Answer: Yes, it is.
Question: How long is the wiring from the switch panel to the control box?
Answer: The extension power harness is 106 inch in length, or say 8 in feet.
Question: Can I get a more longer or extra wiring?
Answer: Yes, please send your demands to our sales rep..
Question: Where to connect the small red cable?
Answer: ACC or say ignition power, so it will not drain off your battery power. This cable is used to supply backlit power for the switch panel pad.
Question: Is there a momentary option for such as horn?
Answer: Yes. Momentary Mode programmed by switch panel operation.
Question: Can I dim the bright led backlight?
Answer: Yes, the backlight brightness is manual adjustable by connecting the white cable.
Question: How many amps can you run per switch?
Answer: 2 Rated at 5 amps, 2 at 10A, 2 at 20A, 2 at 30A.
Question: Can I switch the fuse of 30amps to the position of 5 amps circuit?
Answer: This is not recommended.
Question: How do you connect to the connectors numbered 1-8?
Answer: The control box itself has the connection pieces already made on it, just slide your wire in and squash the connection pieces.
Question: Can I get more sticker or legend options?
Answer: Yes please get in touch with our sales rep.
Question: Can I buy for my own car used?
Answer: No. We do not sell for personal private use.
Question: How soon could you send the order out when I paid?
Answer: 48-72 Hours for in stock switch panels at our Australia warehouse.
Question: Is your price with or without shipping cost?
Answer: Free shipping cost.
