Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Single Pulse Energy:
-
300J
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1080NM
-
Focal Spot Diameter:
-
0.2 ~ 2.0 mm
-
Dimensions:
-
900x500x800MM
-
Weight (KG):
-
75 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Handheld Laser Welding Machine
-
Application:
-
Metal Welding Products
-
Laser type:
-
Continuous Fiber Laser
-
Application material:
-
Metal Stainless Steel Aluminum
-
Advantage:
-
Welding Precision
Quick Details
-
Max. Output Power:
-
2000W
-
Use:
-
Matel Welding
-
Laser Source Brand:
-
BWT
-
Place of Origin:
-
Jiangsu, China
-
Single Pulse Energy:
-
300J
-
Pulse Width:
-
0.5~10ms
-
Wavelength:
-
1080NM
-
Focal Spot Diameter:
-
0.2 ~ 2.0 mm
-
Dimensions:
-
900x500x800MM
-
Weight (KG):
-
75 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Handheld Laser Welding Machine
-
Application:
-
Metal Welding Products
-
Laser type:
-
Continuous Fiber Laser
-
Application material:
-
Metal Stainless Steel Aluminum
-
Advantage:
-
Welding Precision
Product Description

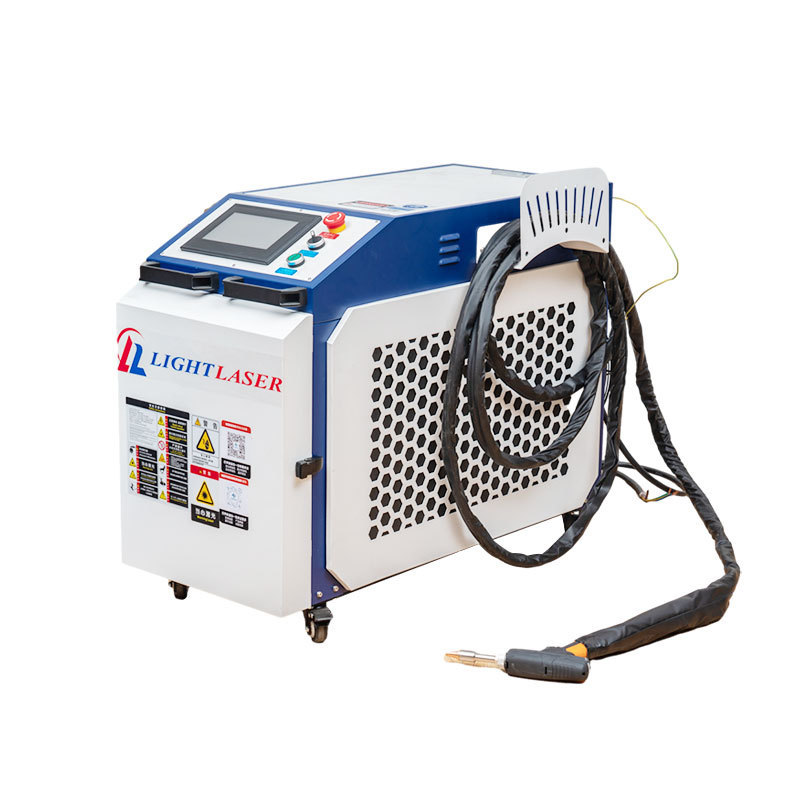

Mini Handheld Laser Welding Machine For Metal 2000W Laser Welders For Sale
|
Performance Index Parameters |
Remarks | |
| Laser | 1000W/2000W fiber laser | BWT |
| LASER | Wobble welding head | CHAO QIANG WEI YE |
|
Welding
material thickness |
0.5-6mm |
Depending
on the material |
|
Effective
welding spot |
0.2mm-5mm | Adjustable |
|
Automatic synchron-
ous wire addition |
Standard wire addition 0.8-1.6mm | Adjustable |
| Welding gun weight | 800g | / |
| Welding gun length | 10 meters | Customizable |
| Wire feeder | CNC wire feeder |
Tube 3 meters/5
meters optional |
|
Machine tool opera-
ting temperature |
0℃-40℃ | / |
|
Environmental
relative humidity |
<85% | / |
| Electric power supply | 220V/380V 50HZ 20A | / |
|
Refrigeration
water tank |
Dual temperature integrated dual circuit chiller | HANLI |
| Equipment size(1) | 900mmX600mmX1200mm |
Conventional
water-cooled type |
| Equipment size (2) | 900mmX500mmX800mm |
Portable
water-cooled type |
| Overall weight | (1)180kg,(2)75kg |
Complete set of
accessories included |
