Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEAO
-
Product Name:
-
American type Machinery Suspension for sale
-
Material:
-
Steel
-
Application:
-
Trailer Truck
-
Color:
-
Customized Color
-
Components:
-
Hanger, Equalizer,Leaf Spring,Radius Rod Assembly
-
Balance arm pin:
-
50mm, 60mm,70mm
-
Leaf spring width:
-
75/80/90/100/120mm
-
Equalizer thickness:
-
Optional 8mm/10mm
-
Hanger thickness:
-
Optional 6mm/8mm/10mm
-
Package:
-
Standard Package
Quick Details
-
OE NO.:
-
OEM
-
Max Payload:
-
11T*3/12T*3/13T*3/16T*3/20T*3
-
Size:
-
Customized
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LEAO
-
Product Name:
-
American type Machinery Suspension for sale
-
Material:
-
Steel
-
Application:
-
Trailer Truck
-
Color:
-
Customized Color
-
Components:
-
Hanger, Equalizer,Leaf Spring,Radius Rod Assembly
-
Balance arm pin:
-
50mm, 60mm,70mm
-
Leaf spring width:
-
75/80/90/100/120mm
-
Equalizer thickness:
-
Optional 8mm/10mm
-
Hanger thickness:
-
Optional 6mm/8mm/10mm
-
Package:
-
Standard Package
Products Description

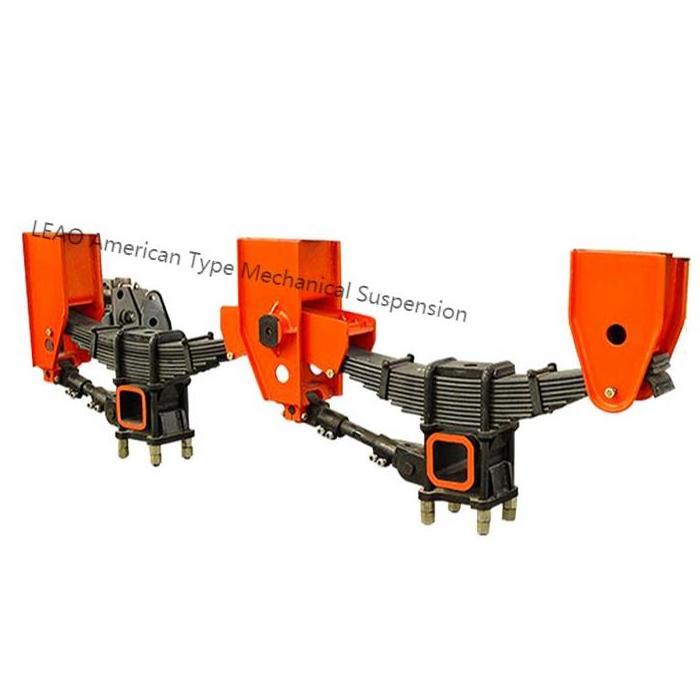

LEAO Trailer Parts Use American type Suspension
1. Carry greater vertical load and better torque.
2. Easy installation, low price, long service life, low maintenance cost.
3. It is suitable for various road conditions and has many optional specifications.
Leaf Springs are 90*13*10, and The Suspension
Carrying Capacity is 13,000*3KG.
|
Model
|
A1
(mm)
|
A2
(mm)
|
A3
(mm)
|
L1
(mm)
|
L2
(mm)
|
L3
(mm)
|
L4
(mm)
|
L5
(mm)
|
H
(mm)
|
|
LA13301B130A011
|
415
|
406
|
397
|
485
|
1310
|
495
|
1135
|
1155
|
130
|
|
LA13301B150A011
|
435
|
426
|
417
|
485
|
1310
|
495
|
1135
|
1155
|
150
|
|
LA13301B180A011
|
465
|
456
|
447
|
485
|
1310
|
495
|
1135
|
1155
|
180
|
|
LA13301B210A011
|
495
|
486
|
447
|
485
|
1310
|
495
|
1135
|
1155
|
210
|
|
LA13301B230A011
|
515
|
506
|
497
|
485
|
1310
|
495
|
1135
|
1155
|
230
|
|
LA13301B250A011
|
535
|
526
|
517
|
485
|
1310
|
495
|
1135
|
1155
|
250
|
|
LA13301B270A011
|
555
|
546
|
537
|
485
|
1310
|
495
|
1135
|
1155
|
270
|
|
LA13301B300A011
|
585
|
576
|
567
|
485
|
1310
|
495
|
1135
|
1155
|
300
|
|
LA13301B320A011
|
605
|
596
|
587
|
485
|
1310
|
495
|
1135
|
1155
|
320
|
|
LA13301B350A011
|
635
|
626
|
617
|
485
|
1310
|
495
|
1135
|
1155
|
350
|
Leaf Springs are 120*16*10, and The Suspension Carrying Capacity is 20,000*3KG.
|
Model
|
A1
(mm)
|
A2
(mm)
|
A3
(mm)
|
L1
(mm)
|
L2
(mm)
|
L3
(mm)
|
L4
(mm)
|
L5
(mm)
|
H
(mm)
|
|
LA20301C130A091
|
450
|
441
|
432
|
495
|
1310
|
495
|
1135
|
1165
|
130
|
|
LA20301C150A091
|
470
|
461
|
452
|
495
|
1310
|
495
|
1135
|
1165
|
150
|
|
LA20301C180A091
|
500
|
491
|
482
|
495
|
1310
|
495
|
1135
|
1165
|
180
|
|
LA20301C210A091
|
530
|
521
|
512
|
495
|
1310
|
495
|
1135
|
1165
|
210
|
|
LA20301C230A091
|
550
|
541
|
532
|
495
|
1310
|
495
|
1135
|
1165
|
230
|
|
LA20301C250A091
|
570
|
561
|
452
|
495
|
1310
|
495
|
1135
|
1165
|
250
|
|
LA20301C270A091
|
590
|
581
|
472
|
495
|
1310
|
495
|
1135
|
1165
|
270
|
Leaf Springs are 90*13*10, and The Suspension Carrying Capacity is 13,000*3KG.
|
Model
|
A1
(mm)
|
A2
(mm)
|
A3
(mm)
|
L1
(mm)
|
L2
(mm)
|
L3
(mm)
|
L4
(mm)
|
L5
(mm)
|
H
(mm)
|
|
LA13301B130A012
|
435
|
426
|
417
|
490
|
1310
|
490
|
1135
|
1155
|
130
|
|
LA13301B150A012
|
455
|
446
|
437
|
490
|
1310
|
490
|
1135
|
1155
|
150
|
|
LA13301B180A012
|
485
|
476
|
467
|
490
|
1310
|
490
|
1135
|
1155
|
180
|
|
LA13301B210A012
|
515
|
506
|
497
|
490
|
1310
|
490
|
1135
|
1155
|
210
|
|
LA13301B230A012
|
535
|
526
|
517
|
490
|
1310
|
490
|
1135
|
1155
|
230
|
|
LA13301B250A012
|
555
|
546
|
537
|
490
|
1310
|
490
|
1135
|
1155
|
250
|
|
LA13301B270A012
|
575
|
566
|
557
|
490
|
1310
|
490
|
1135
|
1155
|
270
|
|
LA13301B300A012
|
605
|
596
|
587
|
490
|
1310
|
490
|
1135
|
1155
|
300
|
|
LA13301B320A012
|
625
|
616
|
607
|
490
|
1310
|
490
|
1135
|
1155
|
320
|
|
LA13301B350A012
|
655
|
646
|
637
|
490
|
1310
|
490
|
1135
|
1155
|
350
|
|
Model
|
A1
(mm)
|
A2
(mm)
|
A3
(mm)
|
L1
(mm)
|
L2
(mm)
|
L3
(mm)
|
L4
(mm)
|
L5
(mm)
|
H
(mm)
|
|
LA13301B130A013
|
410
|
401
|
392
|
490
|
1310
|
490
|
1135
|
1155
|
130
|
|
LA13301B150A013
|
430
|
421
|
412
|
490
|
1310
|
490
|
1135
|
1155
|
150
|
|
LA13301B180A013
|
460
|
451
|
442
|
490
|
1310
|
490
|
1135
|
1155
|
180
|
|
LA13301B210A013
|
490
|
481
|
442
|
490
|
1310
|
490
|
1135
|
1155
|
210
|
|
LA13301B230A013
|
510
|
501
|
492
|
490
|
1310
|
490
|
1135
|
1155
|
230
|
|
LA13301B250A013
|
530
|
521
|
512
|
490
|
1310
|
490
|
1135
|
1155
|
250
|
|
LA13301B270A013
|
550
|
541
|
532
|
490
|
1310
|
490
|
1135
|
1155
|
270
|
|
LA13301B300A013
|
580
|
571
|
562
|
490
|
1310
|
490
|
1135
|
1155
|
300
|
|
LA13301B320A013
|
600
|
591
|
582
|
490
|
1310
|
490
|
1135
|
1155
|
320
|
|
LA13301B350A013
|
630
|
621
|
612
|
490
|
1310
|
490
|
1135
|
1155
|
350
|
Note:
1.Dimension "A"：Unladen
2.Rated load size "A*=A-30"（For Reference Only）
3.Spring specification: Width 9omm,100mm,120mm;the quantity of leaves is optional
Product Display
1. The American suspension effectively reduces the severe vibration of the vehicle during operation and ensures the best braking performance of the vehicle.
2. Run smoothly and protect various items from the impact of vehicle operation.
3. American suspension makes the car adapt to road conditions faster and better.
4. When the vehicle is running with no load, the axle is lifted by the axle lifting device to reduce tire wear.
5. American suspension lifting device can raise or lower the height of the vehicle for easy unloading.
Hanger Assembly
The suspension is stamped and welded with Q345 steel plate material, which is light in weight and strong in rigidity. The leaf spring will not shift during use.
Leaf Spring
Suspension can be matched with different width/ thickness/number of pieces, we can recommend the number of leaf springs according to the load. Use high-quality steel, long life and large load.
