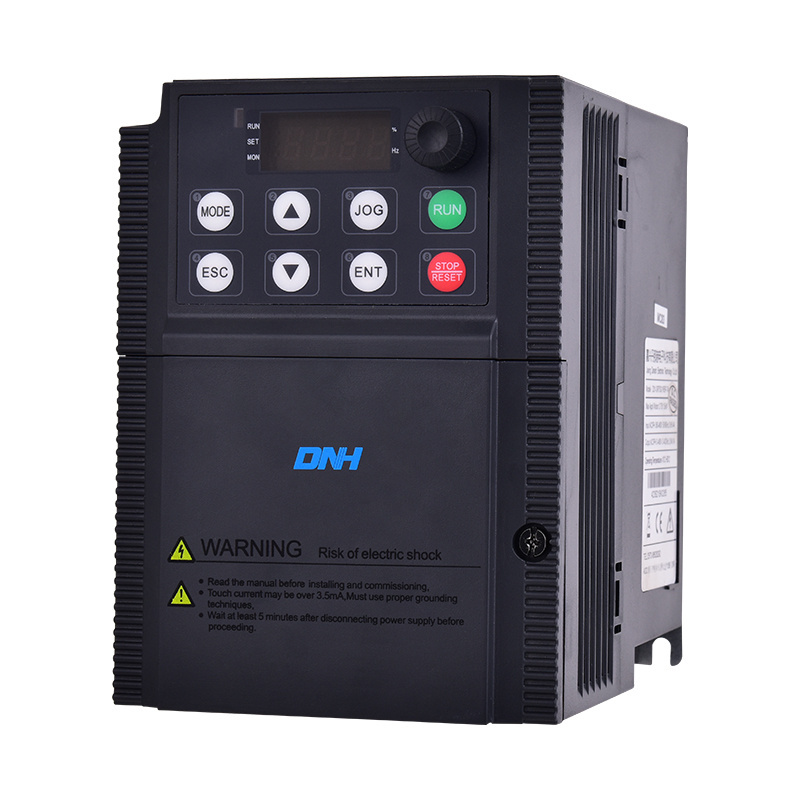

Quick Details
-
power phase number:
-
3PHASE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DNH
-
Model Number:
-
D31
-
Warranty:
-
24MONTHS
-
Type:
-
VFD
-
Size:
-
145*107*144MM
-
Certificate:
-
ISO 9001/CE/IEC/TUV
-
Rated power:
-
0.75KW
-
Protection:
-
IP20 - IP40
-
Color:
-
Black
-
Display:
-
LCD
-
OEM:
-
Accepted
-
Package:
-
Carton Box
-
Frequency:
-
50/60 HZ
-
Overload capacity:
-
150% for 60s; 200% for 2s
-
Shell material:
-
Plastic
-
Certification:
-
CE, TUV,ISO9001
Quick Details
-
Control Mode:
-
V/F,SVC
-
Rated Power:
-
0.75KW
-
Nominal Voltage:
-
380V
-
power phase number:
-
3PHASE
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DNH
-
Model Number:
-
D31
-
Warranty:
-
24MONTHS
-
Type:
-
VFD
-
Size:
-
145*107*144MM
-
Certificate:
-
ISO 9001/CE/IEC/TUV
-
Rated power:
-
0.75KW
-
Protection:
-
IP20 - IP40
-
Color:
-
Black
-
Display:
-
LCD
-
OEM:
-
Accepted
-
Package:
-
Carton Box
-
Frequency:
-
50/60 HZ
-
Overload capacity:
-
150% for 60s; 200% for 2s
-
Shell material:
-
Plastic
-
Certification:
-
CE, TUV,ISO9001
|
TECHNICAL DATA
|
|
|
|
|
||||
|
ITEM
|
|
SPECIFICATIONS
|
|
|
||||
|
Main Input
|
Rated voltage and frequency
|
1 phase 200V class: 200V-240V, 50Hz/60Hz
|
|
|
||||
|
|
|
3 phase 400V class: 380V-480V, 50Hz/60Hz
|
|
|
||||
|
|
Allowable value of change
|
Voltage: 220V-15% ~ 240V+10%; Frequency: ±5% Voltage: 380V-15% ~ 480V+10%; Frequency: ±5%
|
|
|
||||
|
Main output
|
Output voltage
|
Maximum output voltage equals to input voltage
|
|
|
||||
|
|
Output frequency
|
0.5 Hz to 400 Hz
|
|
|
||||
|
|
Overload capacity
|
150% of rated output current for 60s 200% of rated output current for 2s
|
|
|
||||
|
Control performance
|
|
V/f control for constant torque, V/f control for quadratic load, vector control without PG (open loop control),Energy-saving
|
|
|
||||
|
|
Setting method of run command
|
Outer terminal, keyboard panel, serial communication
|
|
|
||||
|
|
Setting method of speed command
|
Analog setting, keyboard, serial communication, UP/DOWN speed setting from external terminal
|
|
|
||||
|
|
Speed setting resolution
|
Keyboard: 0.1 Hz Analog setting: 0.05/50Hz (10bit)
|
|
|
||||
|
|
Speed control precision
|
V/f control: ±2% vector control without PG (open loop control): ±0.2%
|
|
|
||||
|
|
Speed control range
|
V/f control 1:40 vector control without PG (open loop control) 1:200
|
|
|
||||
|
|
Acceleration and Deceleration Time
|
0-3200.0s
|
|
|
||||
|
|
Switching frequency
|
1.5 kHz ~ 12 kHz, according to junction temperature automatically reduce the switching frequency
|
|
|
||||
|
|
Serial Communication
|
2-way RS-485, MODBUS-RTU, RJ45 connection port
|
|
|
||||
|
Environment
|
Ingress protection
|
IP20
|
|
|
||||
|
|
Working temperature
|
-10~50℃
|
|
|
||||
|
|
Storage temperature
|
-20~60℃
|
|
|
||||
|
|
Humidity
|
No condensed water or drip at 5 ~ 95%, In accordance with IEC60068-2-3
|
|
|
||||
|
|
Altitude
|
1000m or below (Derating is necessary when the altitude is higher than 1000m)
|
|
|
||||
|
|
Cooling method
|
Fan
|
|
|
||||
|
|
Installation place
|
Room
|
|
|
||||
|
FOR MORE INFORMATION, PLS CONTACT THE CUSTOMER SERVICE.
|
|
|
|
|
||||
Our products are widely used in compressors, fans, pumps, grinding mills, conveyors, hoists, centrifuges, mixers,
extruding machines, winding machines, wire drawing machines and elevators, etc.
Related Products
FAQ
1. Are you trading company or manufacturer?
We are manufacturer.
We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH
3. What's the production ability?
10000 pieces monthly and rush order for any quantity.
4.W hat kind of certificate you have ?
We have CE, TUV and ISO9001, etc.
5. Do you accept OEM business?
We accept OEM with your authorization.
6. How is the after-sale service?
We offer spare parts accordingly and English-speaking engineers offer online service.
7. How long is your warranty time?
Usually our warranty time is 18 months
