Quick Details
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Keyword:
-
overmolding machine
-
Dimension of Machine:
-
1.65*1.8*3.4M
-
Packing Dimension:
-
2.2*1.5*3.0M
-
Molds:
-
1 set
-
Oil Tank Capacity:
-
260L
-
Cooling water:
-
700-900L/hr
-
Space between columns:
-
490*300
-
Screw speed:
-
0-180 r/min
-
Injection Pressure:
-
2018-1395kgf*m3
-
Screw Diameter:
-
32-40mm
-
Opening Stroke:
-
200mm
-
Clamping Force (kN):
-
686
-
Certification:
-
ISO 9001:2008
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Plastic Type:
-
Thermoplastic
-
Automatic:
-
Yes
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Keyword:
-
overmolding machine
-
Dimension of Machine:
-
1.65*1.8*3.4M
-
Packing Dimension:
-
2.2*1.5*3.0M
-
Molds:
-
1 set
-
Oil Tank Capacity:
-
260L
-
Cooling water:
-
700-900L/hr
-
Space between columns:
-
490*300
-
Screw speed:
-
0-180 r/min
-
Injection Pressure:
-
2018-1395kgf*m3
-
Screw Diameter:
-
32-40mm
-
Opening Stroke:
-
200mm
-
Clamping Force (kN):
-
686
-
Certification:
-
ISO 9001:2008

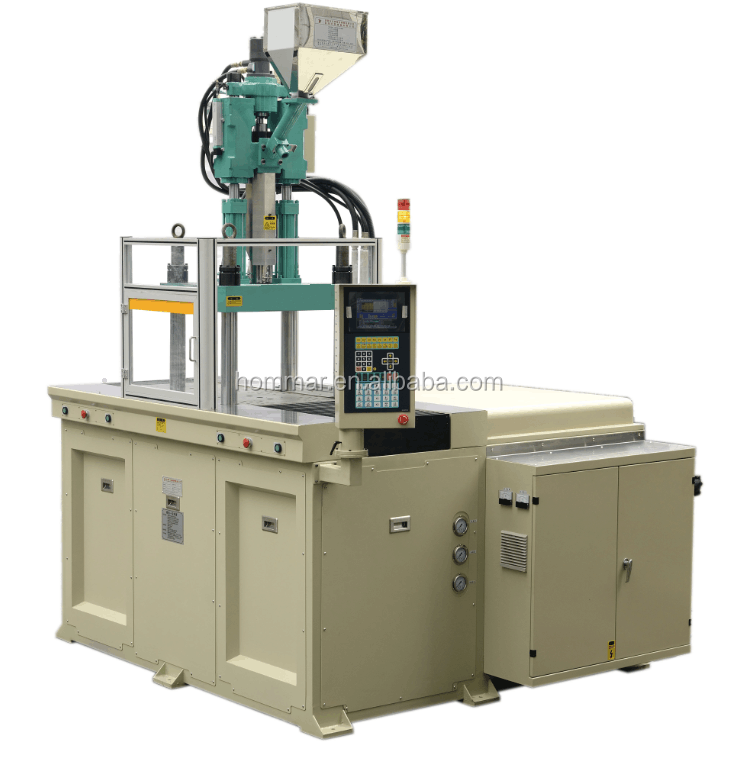

70T Innovative Bimetallic Screw Overmolding Electric Switch Manufacturing Making Machine
Product Description
| Spec | ||||
| Model | HM-70T-SC | |||
| Injection unit | Screw Diameter | mm | 32 | 40 |
| Injection Pressure | Kgf/cm3 | 2180 | 1395 | |
| Injection Capacity | cm3 | 113 | 176 | |
| Injection Weight | gr | 101 | 158 | |
| oz | 3.5 | 5.5 | ||
| Injection Rate | cc/s | 60 | 94 | |
| Screw Speed | r.p.m | 0-180 | ||
| Screw Stroke | mm | 140 | ||
| Nozzle Stroke | mm | 200 | ||
| Nozzle Contact Force | tf | 3.5 | ||
| Clamping unit | Clamping System | |||
| Clamping Force | tf | 70 | ||
| Clamping Stroke | mm | 200 | ||
| Max.Mould Space | mm | 380 | ||
| Min.Mould Height | mm | 180 | ||
| Space between columns | 490*290 | |||
| Hydraulic Ejector Force | tf | 1.7 | ||
| Ejector Stroke | mm | 40 | ||
| Slidable Stroke | ° | 450 | ||
| Tableda | Overall Size of Slipform | mm | 430*500 | |
| Number of Molds | set | 1 | ||
| Drive Motor | kw | 11.1(15HP) | ||
| Electrical Parts | Heater | kw | 5.6 | |
| Oil Tank Capacity | L | 260 | ||
| Cooling Water | L/hr | 700-900 | ||
| Dimension of Machine | M | 1.65*1.8*3.4 | ||
| Packing | Weight of Machine | T | 3.9 | |
| Shipping size | M | 2.2*1.6*3.0 | ||
| Shipping weight | T | 4.6 | ||
