Quick Details
-
Power:
-
12kw
-
Dimension(L*W*H):
-
6400*2000 *3200mm
-
Weight:
-
2900 kg, 2900kg
-
Outline Dimension:
-
6400*2000*3200mm
-
Capacity of weighing dipper:
-
1.2m3
-
Capacity of Dipper:
-
2*2.2m3
-
Productivity:
-
60m3/h
-
Accuracy of Batching:
-
±2%
-
Max Weighing:
-
2000kg
-
Batchable speeies of aggregate:
-
2
-
Feed Height:
-
3000mm
-
Belt conveyors speed:
-
1.25m/s
Quick Details
-
Machine Type:
-
batching machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Pioneer
-
Power:
-
12kw
-
Dimension(L*W*H):
-
6400*2000 *3200mm
-
Weight:
-
2900 kg, 2900kg
-
Outline Dimension:
-
6400*2000*3200mm
-
Capacity of weighing dipper:
-
1.2m3
-
Capacity of Dipper:
-
2*2.2m3
-
Productivity:
-
60m3/h
-
Accuracy of Batching:
-
±2%
-
Max Weighing:
-
2000kg
-
Batchable speeies of aggregate:
-
2
-
Feed Height:
-
3000mm
-
Belt conveyors speed:
-
1.25m/s

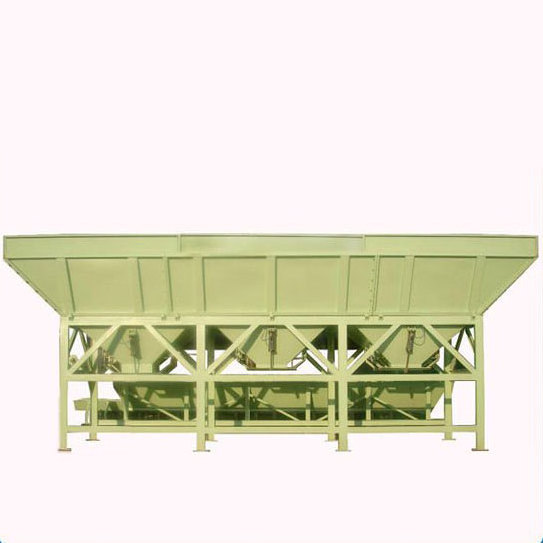

High quality three bins PLD1200 batcher hopper concrete batching machine
PLD serial concrete batching machine is kind of equipment with automatically batching material on the front desk and using mixer together.
It can automatically finish the batching procedures of 3~6 kinds of materials (second grade concrete) such as sand, stone, cement according to user's design.
The PLD serial Concrete Batching Machine products adopt electronic weighing, computer control, digital display, wired remote control operation, and have such advantages as accurate weighing,high precision batching, quick speed, strong control, digital display, wired remote control operation, and have such advantages as accurate weighing, high precision batching, quick speed, strong control function and convenient operation.
After this serial concrete batching machine combines with relative concrete mixer, different types and specifications combined concrete mixing station can be formed.
We manufacture and deal with the whole PLD Series Concrete Batching Machine including:
|
Model |
PLD1200 |
|
Cubage of weighing hopper |
1200L |
|
Cubage of storage hopper |
2500L×3 |
|
Rate of production |
60m3/h(dry materials) |
|
Accuracy of batching |
±2% |
|
Max weighing value |
2000kg |
|
Batchable species of aggregate |
2 -4kinds |
|
Feeding height |
3000mm |
|
Speed of belt conveyor |
1.25m/s |
|
Power |
4×3=12kw |
|
Total weight |
2900kg |
|
Dimension |
6400×2000 ×3200mm |
|
PLD 800 Concrete Batching Machine; PLD 800S Concrete Batching Machine; PLD 1200-1 Concrete Batching Machime; PLD 1200-II Concrete Batching Machine; PLD 1200-1 Concrete Batching Machime; PLD 1600-II Concrete Batching Machine; PLD 1600-II Concrete Batching Machine; PLD 2400 Concrete Batching Machine; PLD 3200 Concrete Batching Machine; PLD 3200-IV Concrete Batching Machine;
LD 4800 Concrete Batching Machine; |
|
