Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FACHINE or OEM
-
Model Number:
-
PV32-NL1
-
Application:
-
Photovoltaic System
-
Waterproof degree:
-
IP66
-
Material:
-
PC + ABS
-
Function:
-
ON-OFF-ON
-
Mechanical Life:
-
10000 Cycles
Quick Details
-
Number of Pole:
-
4
-
Rated Current:
-
32A
-
Rated Voltage:
-
1200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FACHINE or OEM
-
Model Number:
-
PV32-NL1
-
Application:
-
Photovoltaic System
-
Waterproof degree:
-
IP66
-
Material:
-
PC + ABS
-
Function:
-
ON-OFF-ON
-
Mechanical Life:
-
10000 Cycles
Product Description

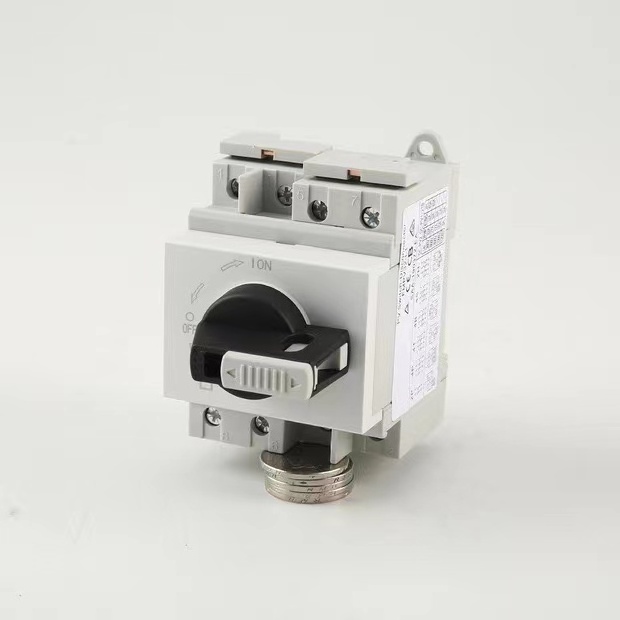

FCPV32-NL1 Series DC changeover switch have been specifically designed to switch Direct Current (DC) at voltages up to 1000v.
Their robust design and ability to switch such voltages at reated current , mean that they are ideally suited to to be used in the switching of Photovoltaic (PV) systems . All photovoltaic installations must have a DC switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC.
Their robust design and ability to switch such voltages at reated current , mean that they are ideally suited to to be used in the switching of Photovoltaic (PV) systems . All photovoltaic installations must have a DC switch to disconnect the DC/AC inverter from the photovoltaic panels in accordance with IEC.
Product Paramenters
|
Electrical Characteristics
|
|
|
|
Type
|
FMPV16-NL1/FMPV25-NL1,FMPV32-NL1
|
|
|
Function
|
Isolator,Control
|
|
|
Standard
|
IEC60947-3,AS60947.3
|
|
|
Utilization category
|
DC-PV2/DC-PV1/DC-21B
|
|
|
Pole
|
4P
|
|
|
Rated frequency
|
DC
|
|
|
Rated operational voltage(Ue)
|
300V,600V,800V,1000V, 1200V
|
|
|
Rated operational voltage(Ie)
|
See the next page
|
|
|
Rated insulation voltage(Ui)
|
1200V
|
|
|
Conventional free air themal current(Ithe)
|
//
|
|
|
Conventional enclosed thermal current(Ithe)
|
Same as Ie
|
|
|
Rated short-time withstand current(Icw)
|
1kA,1s
|
|
|
Rated impulsed withstand voltage(Uimp)
|
8.0kV
|
|
|
Overvoltage category
|
II
|
|
|
Suitability for isolation
|
Yes
|
|
|
Polarity
|
No polarity,"+"and"-"polarities could be interchanged
|
|
|
Service life/cycle operation
|
|
|
|
Mechanical
|
18000
|
|
|
Electrical
|
2000
|
|
|
Installation Environment
|
|
|
|
Ingress protection
|
IP20
|
|
|
Storge temperature
|
-4O℃~+85℃
|
|
|
Mounting Type
|
Vertically or horizontally
|
|
|
Pollution degree
|
3
|
|
Details Images
Production Lines
Packing & Delivery
FAQ
Q: Does FACUN a factory or trading company?
A: FACUN is a factory that produces ranging from the components of the circuit breaker, and MCCB(stamping parts), to the complete
products. We have a competitive price on the market.
Q: What are the conditions to be the agent of FACUN?
A: It is according to the exclusive or not, usually, the First trial order is more than 5,000 US dollars.
Q: What’s the delivery time when a customer has an order?
A: It is according to the quantity and the product, usually, the goods will be delivered within 2-3 weeks after placing an order.
Q: What is the warranty for each product?
A: Usually the warranty is Five-year for low-voltage electrical products.
Q: How about The shipment terms?
A: FOB\C&F\CIF
Q: How about The payment terms?
A:1, L&C
2, TT 30% deposit in advance, 70% balance against the copy of B/L or before the shipment.
Q: What is the MOQ?
A:1. The sample order has no MOQ requirements.
2. First-order should be 5,000 USD and the quantity according to the products.
Q: What kind of orders were received by FACUN?
A: OEM, ODM, and special requirements are accepted.
Q: Does FACUN e company ever attended any bids?
A: We have cooperated with some joint companies in some overseas bids to provide technical parameters of related products.
Q: Are samples for free?
A: We can provide samples for free,
but the sample amount must not exceed the company’s specified range. The freight cost should be paid by clients except for special
cases.
A: FACUN is a factory that produces ranging from the components of the circuit breaker, and MCCB(stamping parts), to the complete
products. We have a competitive price on the market.
Q: What are the conditions to be the agent of FACUN?
A: It is according to the exclusive or not, usually, the First trial order is more than 5,000 US dollars.
Q: What’s the delivery time when a customer has an order?
A: It is according to the quantity and the product, usually, the goods will be delivered within 2-3 weeks after placing an order.
Q: What is the warranty for each product?
A: Usually the warranty is Five-year for low-voltage electrical products.
Q: How about The shipment terms?
A: FOB\C&F\CIF
Q: How about The payment terms?
A:1, L&C
2, TT 30% deposit in advance, 70% balance against the copy of B/L or before the shipment.
Q: What is the MOQ?
A:1. The sample order has no MOQ requirements.
2. First-order should be 5,000 USD and the quantity according to the products.
Q: What kind of orders were received by FACUN?
A: OEM, ODM, and special requirements are accepted.
Q: Does FACUN e company ever attended any bids?
A: We have cooperated with some joint companies in some overseas bids to provide technical parameters of related products.
Q: Are samples for free?
A: We can provide samples for free,
but the sample amount must not exceed the company’s specified range. The freight cost should be paid by clients except for special
cases.
