Quick Details
-
Model Number:
-
PVDH
-
Specification:
-
3/4''-6''
-
Length:
-
50 m or as required
-
Thickness:
-
3~6 mm or as required
-
Standard:
-
ISO
-
Application:
-
For freshwater and saltwater transfer.
-
Feature:
-
Flexible,Easy slide and handle.
-
Reinforcement:
-
rigid helix.
-
Packing:
-
Plastic film or woven bag, customerized is available.
-

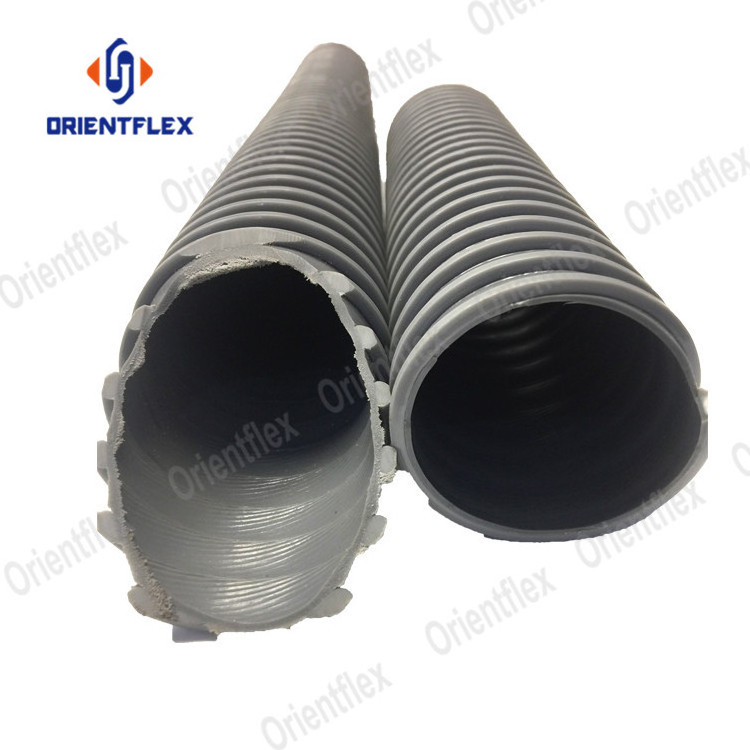

Product name:
-
PVC Helix Duct Hose
-
Compliance:
-
RoHS
-
Temperature:
-
-10℃ to +65℃
-
Bending radius:
-
40~450 mm
-
Sample:
-
Available
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Orientflex
-
Model Number:
-
PVDH
-
Specification:
-
3/4''-6''
-
Length:
-
50 m or as required
-
Thickness:
-
3~6 mm or as required
-
Standard:
-
ISO
-
Application:
-
For freshwater and saltwater transfer.
-
Feature:
-
Flexible,Easy slide and handle.
-
Reinforcement:
-
rigid helix.
-
Packing:
-
Plastic film or woven bag, customerized is available.
-
Product name:
-
PVC Helix Duct Hose
-
Compliance:
-
RoHS
-
Temperature:
-
-10℃ to +65℃
-
Bending radius:
-
40~450 mm
-
Sample:
-
Available
Construction:
Wall: Top grade of PVC
Spiral: Rigid PVC
Application:
As suction and transport hose especially suitable for below
substance:
Gaseous and liquid media
Abrasive solids such as dusts, powders, chips and grains
Also ideal as ventilation hose for air conditioning and ventilation system
Temperature: -10℃ to 65℃
Characteristic:
Extremely tearing-resistant with rigid reinforced PVC helix
Very abrasive
Very smooth interior
Very Flexible with low weight
Extremely transparent
Could be resistant to UV if requested
Various sizes are available
Comply to RoHS
| Item code | I.D | O.D | Thickness | W.P | Vacuum Pressure | Bending Radius | L | Dimension | Volume | ||
| inch | mm | mm | mm | bar | Psi | mmHg(68℉) | mm | m | D*H(cm) | m³ | |
| PVD019 | 3/4 | 19.0±0.5 | 25.0±1.0 | 3.0 | 4.0 | 55 | 740 | 40 | 50 | 57×20 | 0.065 |
| PVD025 | 1 | 25.4±0.5 | 231.4±1.0 | 3.0 | 4.0 | 55 | 740 | 45 | 50 | 60×25 | 0.090 |
| PVD032 | 1 1/4 | 31.7±0.5 | 37.7±1.0 | 3.0 | 4.0 | 55 | 740 | 50 | 50 | 70×28 | 0.137 |
| PVD038 | 1 | 38.0±0.5 | 44.0±1.0 | 3.0 | 3.5 | 50 | 740 | 55 | 50 | 80×32 | 0.192 |
| PVD050 | 1 1/2 | 50.8±1.0 | 58.8±1.5 | 4.0 | 3.5 | 50 | 740 | 110 | 50 | 100×26 | 0.250 |
| PVD065 | 2 | 63.5±1.0 | 71.5±1.5 | 4.0 | 2.5 | 35 | 740 | 180 | 50 | 115×35 | 0.463 |
| PVD075 | 3 | 76.2±1.0 | 85.2±1.5 | 4.5 | 2.5 | 35 | 740 | 220 | 50 | 130×43 | 0.729 |
| PVD100 | 4 | 101.6±1.5 | 136.6±2.0 | 6.0 | 2.5 | 35 | 740 | 240 | 50 | 200×35 | 1.400 |
| PVD125 | 5 | 127.0±1.5 | 139.0±2.0 | 6.0 | 2.5 | 35 | 740 | 400 | 50 | 220×35 | 1.690 |
| PVD150 | 6 | 152.4±1.5 | 164.4±2.0 | 6.0 | 2.0 | 30 | 740 | 450 | 30 | 230×35 | 1.850 |
