Quick Details
-
Rated Voltage:
-
220V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD
-
Model Number:
-
B5418F
-
Product name:
-
snow blower front loader
-
Color:
-
Red
-
Rated Input power:
-
3000W
-
Dia. of Feeding:
-
360mm
-
Matching Power:
-
20-150hp
-
Blowing Hight:
-
600mm
-
Blowing Width:
-
1300mm-2100mm
-
Weight:
-
200-500kgs
-
Drive auger:
-
gear box W /chain
-
Fan:
-
4 blades
Quick Details
-
Application:
-
SNOW BLOWER
-
Pressure:
-
Medium Pressure
-
Warranty:
-
1 years
-
Rated Voltage:
-
220V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD
-
Model Number:
-
B5418F
-
Product name:
-
snow blower front loader
-
Color:
-
Red
-
Rated Input power:
-
3000W
-
Dia. of Feeding:
-
360mm
-
Matching Power:
-
20-150hp
-
Blowing Hight:
-
600mm
-
Blowing Width:
-
1300mm-2100mm
-
Weight:
-
200-500kgs
-
Drive auger:
-
gear box W /chain
-
Fan:
-
4 blades
Products Description

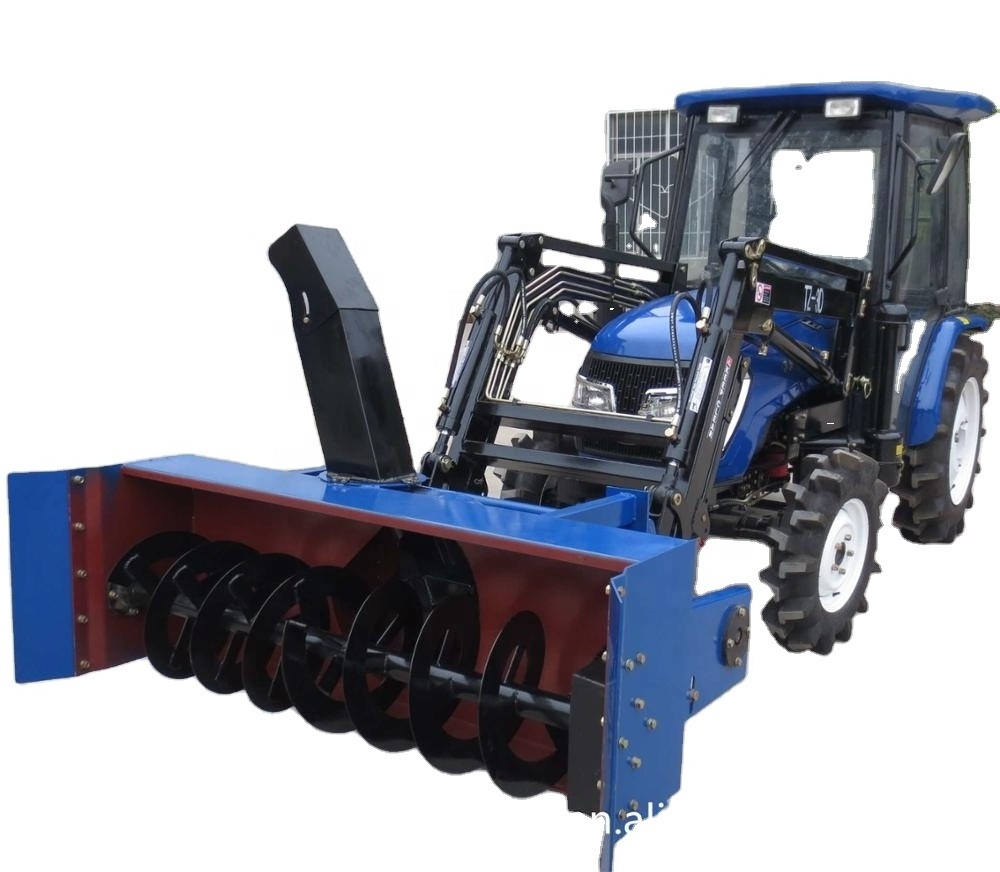

snow blower front loader introduction:
It is an efficient attachment for snow removal from sidewalks, foot paths, road and similar places where the snow must be spread out evenly. The two-stage design of the heavy duty snow blower makes it a very efficient snow removal tool - also with wet and heavy snow. First the auger breaks up the snow and moves it into the fan which then throws the snow out through the discharge chute. Discharge chute can be rotated 270°, operated from the driver’s seat. Throwing height can be adjusted manually.
This kind of snow blower is match with tractor front loader,
Cutting height 25" to 36", Two stage hydraulic blower throws snow up to 45ft , High flow models do not require a case drain Electro/hydraulic poly-lined chute and deflector
Provides excellent visibility Replaceable wear-resistant P Pacal steel tapered wear edge .
Product Specifications
|
Model
|
5418F
|
5418PTO
|
6618F
|
6618PTO
|
210PTO
|
|
Blowing Width
|
54”
|
54”
|
66”
|
66”
|
2100mm
|
|
Blowing Height
|
24”
|
24”
|
24”
|
24”
|
600
|
|
Fan
|
4-Blades
|
4-Blades
|
4-Blades
|
4-Blades
|
4-Blades
|
|
Fan Diameter(mm)
|
18”
|
18”
|
18”
|
18”
|
500
|
|
Fan Width
|
4.8”
|
4.8”
|
4.8”
|
4.8”
|
4.8”
|
|
Auger Diameter
|
15”
|
15”
|
15”
|
15”
|
15”
|
|
Drive Fan
|
Hyd w/gearbox
|
PTO gearbox
|
Hyd w/gearbox
|
PTO gearbox
|
PTO gearbox
|
|
Drive Auger
|
Gearbox w/chain
|
Gearbox w/chain
|
Gearbox w/chain
|
Gearbox w/chain
|
Gearbox w/chain
|
|
Hitch Type
|
Front end loader
|
3-points Cat. I
|
Front end loader
|
3-points Cat. I or II
|
3-points Cat. I or II
|
|
Hitch Adjustment
|
FEL quickly move
|
3 position
|
FEL quickly move
|
3 position
|
3 position
|
|
|
LD pin
|
|
LD pin
|
|
|
|
Chute Deflector
|
Handing /
|
Handing /
|
Handing /
|
Handing /
|
Handing /
|
|
|
4 position /
|
4 position /
|
4 position /
|
4 position /
|
4 position /
|
|
|
115°-145°
|
115°-145°
|
115°-145°
|
115°-145°
|
115°-145°
|
|
Cutting Edge
|
3/8”X4” Beveled
|
3/8”X4” Beveled
|
3/8”X4” Beveled
|
3/8”X4” Beveled
|
3/8”X4” Beveled
|
|
Skid Shoes
|
Cup type adjustable
|
Cup type adjustable
|
Cup type adjustable
|
Cup type adjustable
|
Cup type adjustable
|
|
System Controls & Drive
|
Hyd. Loader sensing block flow
|
PTO w/shear pin
|
Hyd. Loader sensing block flow
|
PTO w/shear pin
|
PTO w/shear pin
|
