Quick Details
-
Name:
-
Professional high quality lead acid car battery tester analyzer meter
-
Test speed:
-
20 times/sec
-
Resistance range:
-
0.01mΩ ~2.2kΩ
-
Voltage Range:
-
0.0001V~50.00V
-
Max resolution for resistance:
-
0.1mΩ
-
Max resolution for voltage:
-
1mV
-
Interface:
-
Mini-USB, U disc
-
Voltage:
-
100VAC~240VAC/50HZ. 0.35A
-
Certificate:
-
CE ISO
-
Warranty:
-
24 Months
Quick Details
-
Brand Name:
-
Applent
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
AT528
-
Name:
-
Professional high quality lead acid car battery tester analyzer meter
-
Test speed:
-
20 times/sec
-
Resistance range:
-
0.01mΩ ~2.2kΩ
-
Voltage Range:
-
0.0001V~50.00V
-
Max resolution for resistance:
-
0.1mΩ
-
Max resolution for voltage:
-
1mV
-
Interface:
-
Mini-USB, U disc
-
Voltage:
-
100VAC~240VAC/50HZ. 0.35A
-
Certificate:
-
CE ISO
-
Warranty:
-
24 Months
The resistance test range 0.01mΩ~2.2KΩ, 0.0001V~50V DC voltage, Max resistance display 3300dgt,Max voltage display 60,000dgt, Can assure the 0.5% accuracy under the test speed of 10 times/second.
|
SPECIFICATIONS |
||
|
|
AT528 Handheld Battery Tester |

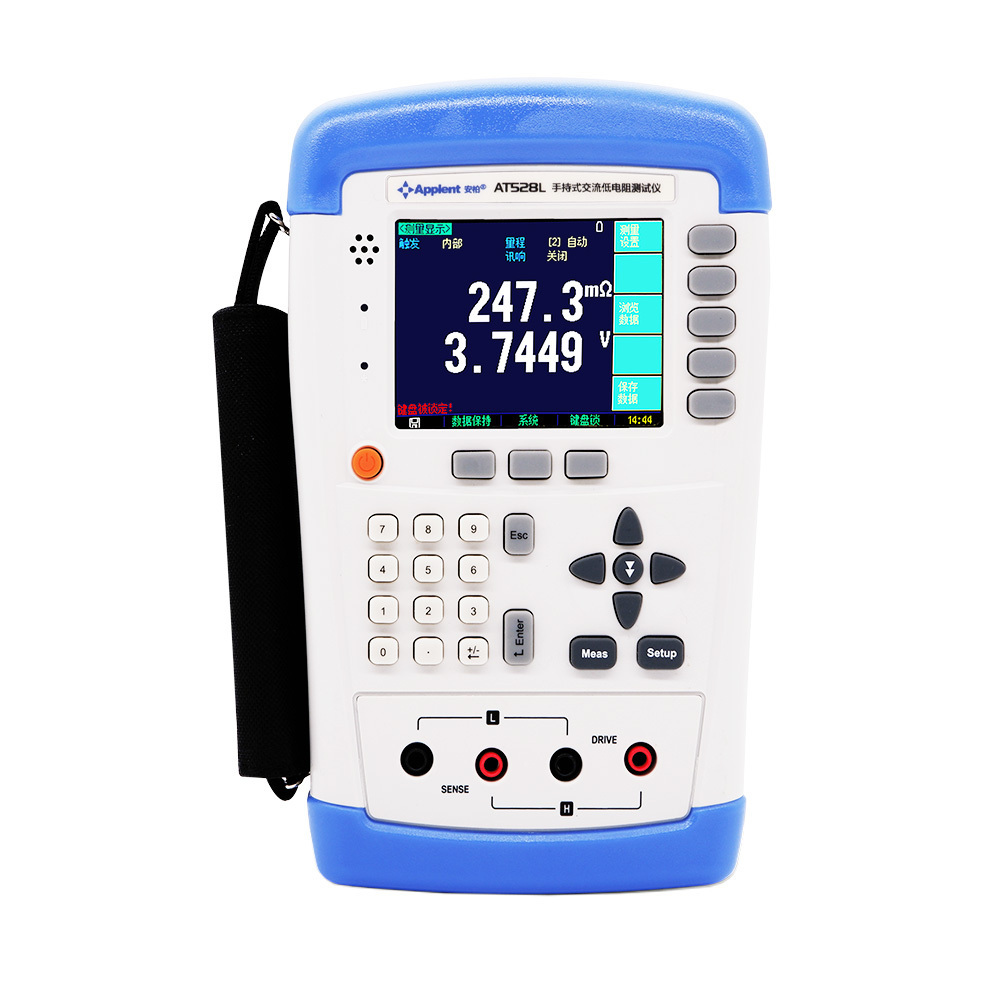

AT528L Handheld Battery Tester |
|
Parameter |
AC resistance, DC voltage |
|
|
Accuracy |
AT528 R:0.5%±5dgt ;V:0.1%±5dgt ; AT528L R:0.5%±5dgt ; V:0.5%±5dgt |
|
|
Measure range |
V:0.0001V ~ 50.00V R:0.01mΩ~2.2kΩ |
V:0.001V ~ 50.00V R:0.1mΩ~200.0Ω |
|
Signal source |
AC:1kHz open-circuit voltage:<30mV current:<15mA |
|
|
Range |
Auto 4 range, manual & nominal |
|
|
Test speed |
2t /s;10t/s;20t/s;(manual 1range) 1.8t /s;6.8t/s;16t/s |
|
|
Max display |
R:3300 V:60,000 |
|
|
M a x resolution |
R:0.1mΩ V:1mV |
|
|
Adjustment |
short-circuit correction for each range |
|
|
Comparator |
Individual voltage comparison Individual resistance comparison Voltage resistance combination comparison OK/NG sorting result display Beep |
|
|
Trigger |
Internal, Manual, Remote |
|
|
Test Terminal |
4 terminal shielding(2 check & 2 driver) External shield ground |
|
|
Interface |
Build -in Mini-USB (virtual serial port) Charging interface ; U disc interface |
|
|
Others |
3.5 inch / color 6M / TFT-LCD display; Keypad lock,data hold function;compatible SCPI order set; English & Chinese switch; Adjustable background light; Auto power-off; 500 sets measured data save with one key |
|
|
Power supply |
input:100-240V~50/60Hz 0.35A output:9V 1A DC |
|
|
Battery parameter |
8.4V, 2200mAh Li battery |
|
|
C h a r g i n g time |
Max :300Min |
|
|
Working time |
≥ 8H |
|
|
Sizes Weight |
130.23 x210.76 x37.88 mm 650g |
|
|
Accessories |
ATL501B 4-terminal test probe ; ATL909 DC adaptor ; ATL202 portable bag ; ATL804 Li battery ; Data acquisition software # ATL506B 4-terminal test probe(AT528L optional) # ATL105Mini-USBcommunication cable |
|
