Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price
Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price

Tire Shredder Machine To Make Crumb Rubber Used tire recycling machine rubber tire machine Price

FOB Reference Price: Get Latest Price
≥1 Sets
US $10500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
as request
Power (kW):
90 kW
Weight (KG):
20000 KG
Item:
Used tire recycling machine recycle waste tires to fuel ,pyrolysis
Raw material:
Waste tire
End product:
rubber block, rubber mulch, granule,powder
Capacity:
Designed as request
Energy saving:
Low electricity consumption
Control system:
Siemens control system
Application:
playgroud, for fuel, waste oil,floor tile,etc
Keyword:
Tire Shredder Waste Tyres Recycling Machine
Advantage:
Germany technology
Trye recycling line machine:
waste tire recycling plant

Quick Details

Place of Origin:
Henan, China
Brand Name:
HVST
Voltage:
as request
Dimension(L*W*H):
as request
Power (kW):
90 kW
Weight (KG):
20000 KG
Item:
Used tire recycling machine recycle waste tires to fuel ,pyrolysis
Raw material:
Waste tire
End product:
rubber block, rubber mulch, granule,powder
Capacity:
Designed as request
Energy saving:
Low electricity consumption
Control system:
Siemens control system
Application:
playgroud, for fuel, waste oil,floor tile,etc
Keyword:
Tire Shredder Waste Tyres Recycling Machine
Advantage:
Germany technology
Trye recycling line machine:
waste tire recycling plant
Product Description

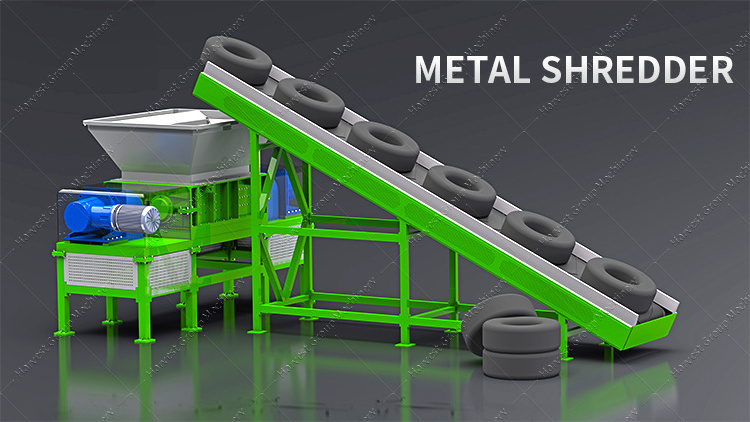

Two shaft shredders is a kind of industrial shredder specially designed for metal scraps, with low speed, high torque, minimum noise and power consumption, but high productive rate. All the shredder blades thickness ranges from 25mm-152mm depending on the raw material and final size, while capacity ranges from 1~30 tons per hour.
Technical Parameter
Model
Input size
Output size
Capacity
Motor
Weight
TS-800
800mm
50*50mm
1-2t/h
2*22kw
8t
TS-1200
1200mm
60*60mm
3-5t/h
2*37kw
14t
TS-1600
1600mm
50-150mm
6-8t/h
2*45kw
18t
TS-1800
1800mm
50-150mm
7-10t/h
2*55kw
23t
Details Images
Planetary Reducer
PLC Control cabinet
PLC control system
①. Overloading automatic reversal function. ②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen. ③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss. ④. Crushing chamber is open structure, easily for maintenance. ⑤. High torque and strong power, ensures low noise and power consumption with high productivity. ⑥. Blades are made one of best material 9Cr2Mo, long service life. ⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia. ⑧. Driven by SIEMENS motor, quality and power guaranteed.

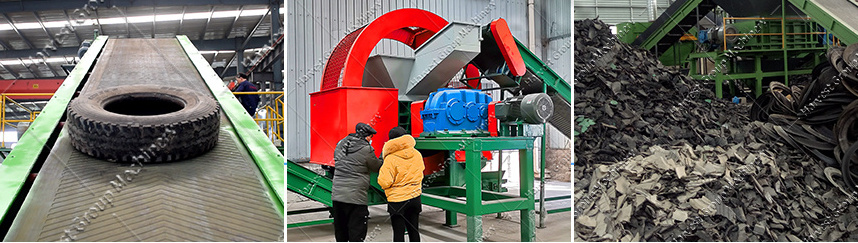

Main Recycling Process
HVST waste tyre recycling machine, is a rare in the whole of the EU CE certification with high standard of quality certification. The whole tyre recycling machine line can effectively realize the automatic separation of rubber, steel wire, nylon fiber and other materials, the whole line adopts PLC control system, it is easy to operate and maintain, and has the characteristics of low energy consumption and long service life.
Flow chart of tire recycling (Fully-automatic Production Line): Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder Flow chart of semi automatic tire recycling line Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder
Fully automatic tire recycling machine
Tire de-beader
Model
TD-1200
Feed size of tire(mm)
≤φ1400
Capacity(tires/h)
40-60
Power(KW)
7.5
Overall dimensions(m)
4.1*1.3*1.75m
Equipment weight (T)
2.8
To draw out the wire steel from tire  ；TD-1200 double tire de-beader and single tire de-beader
Tire cutter
Model
TC 4000
Motor power
22kw
Weight
32000kgs
Blade material
DC53
Capacity
4pcs/h
Blades Qty
12pcs
Dimensions
7200*4600*4400mm
Motor brand
Siemens
To cut large tire into samller pieces
Tire shredder
Model
TS-1200
Capacity
3~5 t/h
Output Size
60*60 mm
Blade Material
9Cr2Mo
Power
2*45 kW
Input Size (diameter)
1200 mm
Blade quantity
20 pcs
Size
4.8*2.8*3.5 m
to shred tire into rubber blocks, such as 50*50mm
Rubber crusher
Model
XKP-680
Capacity
1500~3000 kg/h
Front roll linear
45.5 m/min
Max roll spacing
8 mm
Power
250 kW
Drum diameter
680 mm
Roll speed ratio
1:2
Output Size
5~40 mesh
there are conveyor belt between tire shredder and rubber crusher
Why Choose Us

Zhengzhou Harvest Machinery Co., Ltd

HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
Our Services
1. We can arrange our engineer to client’s working site, and client needs to afford the air tickets, hotel, meals and salary $100/day for our engineer.
2. Operation manual: yes.
3. Install & Training: ① . We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training ② . We can arrange our engineer to client’s working site, and client needs to afford the air tickets, hotel, meals and salary $100/day for our engineer
4. Global inspection service: Our company provides a free inspection service within one year from the end of installation.
5. Repair service: If the abnormal damage occurs during the warranty period, the engineer maintenance fee will be paid.

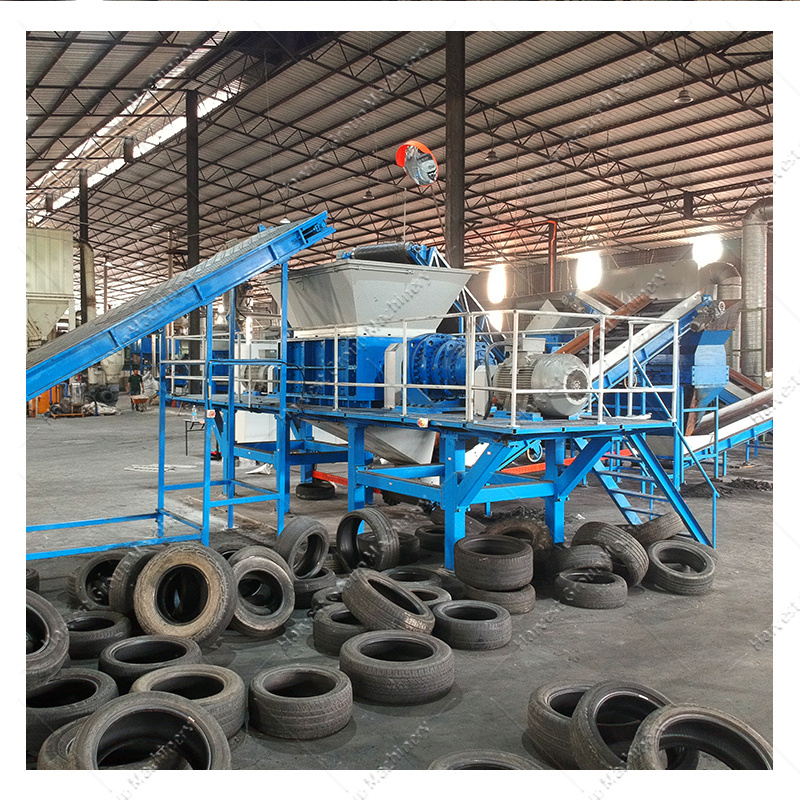

Customer Site
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience 2. All machines are 2 years warranty 3. Competitive price with high quality 4.We got SGS inspection certificate and CE certificate 5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
