- Product Details
- {{item.text}}
Quick Details
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
0
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yingchuan
-
Voltage:
-
380v
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1450*800*1280
-
Weight:
-
600 kg
-
Product name:
-
dry and wet shotcrete machine
-
Keywords:
-
swimming pools concrete spray shotcrete machine
-
Output:
-
3-7m3/h
-
Max. Horizatial Convery Distance:
-
200 m
-
Max. Vertical Convery Distance:
-
20 m
-
Max.Aggregate Size:
-
20 mm
-
Operating Air Pressure:
-
1.4-0.6 Mpa
-
Engine type:
-
Electric Motor,Diesel,Air Motor
-
Name:
-
dry and wet mix shotcrete machine
-
Usage:
-
shotcrete machine for sale
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Max. Conveying Distance:
-
Horzatial:200 mm;Vertical:20 m
-
Max Aggregate Size:
-
20 mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
0
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yingchuan
-
Voltage:
-
380v
-
Power:
-
5.5kw
-
Dimension(L*W*H):
-
1450*800*1280
-
Weight:
-
600 kg
-
Product name:
-
dry and wet shotcrete machine
-
Keywords:
-
swimming pools concrete spray shotcrete machine
-
Output:
-
3-7m3/h
-
Max. Horizatial Convery Distance:
-
200 m
-
Max. Vertical Convery Distance:
-
20 m
-
Max.Aggregate Size:
-
20 mm
-
Operating Air Pressure:
-
1.4-0.6 Mpa
-
Engine type:
-
Electric Motor,Diesel,Air Motor
-
Name:
-
dry and wet mix shotcrete machine
-
Usage:
-
shotcrete machine for sale
Product Description

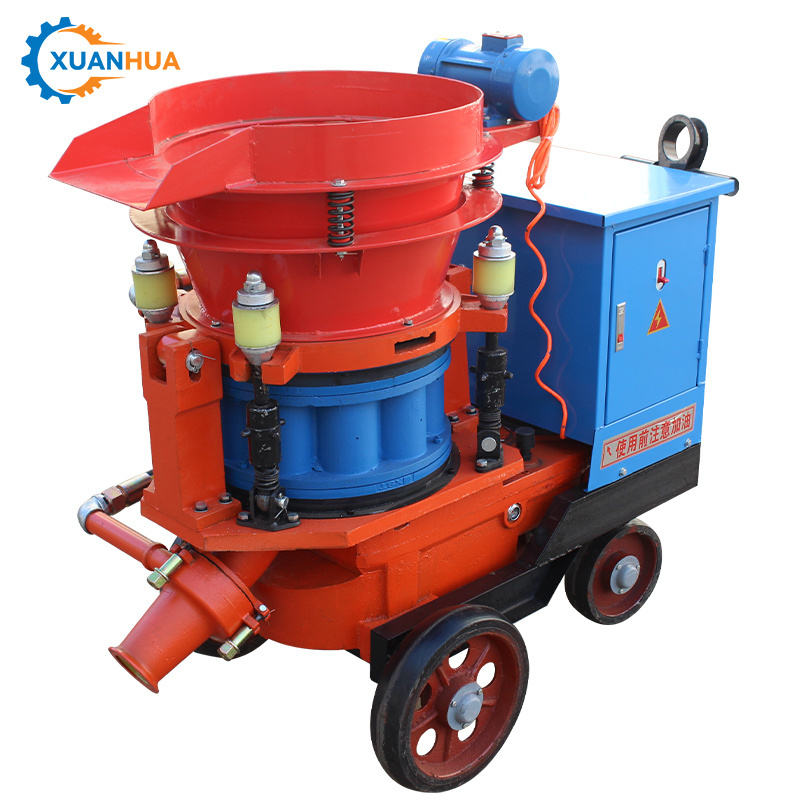

Concrete shotcrete machine is widely used in the protection work of houses, roads, tunnels, culverts, subways, bridges, coal mines and other projects as well as the spraying and repairing of industrial kilns.
|
Model
|
Output
|
Max.Convery Distance
|
Max.Aggregate Size
|
Operating Air Pressure
|
Engine Type
|
|
PZ-3
|
3 m3/h
|
Horizatial:200 m
Vertical:20 m |
20 mm
|
0.4-0.6 Mpa
|
Eletric Motor
|
|
PZ-5/PZ-5I
|
5 m3/h
|
Horizatial:200 m
Vertical:20 m
|
20 mm
|
0.4-0.6 Mpa
|
Eletric Motor
|
|
PZ-7/PZ-7I
|
7 m3/h
|
Horizatial:200 m
Vertical:20 m
|
20 mm
|
0.5 Mpa
|
Eletric Motor
|
|
PZ-5D/7D
|
5/7 m3/h
|
Horizatial:200 m
Vertical:20 m
|
20 mm
|
0.5 Mpa
|
Diesel Engine
|
|
PZ-5P
|
5 m3/h
|
Horizatial:200 m
Vertical:20 m
|
20 mm
|
0.5 Mpa
|
Air Motor
|
WORKING
EFFECT
Concrete shotcrete machine is widely used in the protection work of houses, roads, tunnels, culverts, subways, bridges, coal mines and other projects as well as the spraying and repairing of industrial kilns.
Product Show
Product Detail
PRODUCT
ADVANTAGES
According to your local market needs and budget, we can design produce the right machine for your market
Shotcrete Nozzle
The new nozzle improves the spraying effect, has less rebound and high spray layer quality. The nozzle material is upgraded and the service life is longer.
Cyclone
Low-pressure high-speed vortex air flow transportation is adopted to overcome the problems of bonding, pipe blocking and pulse force in material transportation.
Clamping Device
Four-point elastic compensation compaction, good sealing effect, less dust beside the machine and long service life of wearing parts.
Rotor
Straight-through rotor design, non-stick material cavity, smooth discharge, high efficiency and time saving.
