Quick Details
-
Model Number:
-
UPB2S
-
pressure medium:
-
gas or liquid compatible with stainless steel
-
pressure ranges:
-
-1...0~0.1...350bar
-
overload pressure:
-
150%FS
-
output signal:
-
4~20mA, 0~5V, 0~10V, 1~5V
-
accuracy:
-
0.25%FS, 0.5%FS(standard)
-
supply voltage:
-
12~36VDC
-
operating temperature range:
-
-30~+85℃
-
process connection:
-
G1/2 or 2"clamp
-
electrical connection:
-
hirschmann connector or others
-
compensated temperature range:
-
0~70℃
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
UTOP
-
Model Number:
-
UPB2S
-
pressure medium:
-
gas or liquid compatible with stainless steel
-
pressure ranges:
-
-1...0~0.1...350bar
-
overload pressure:
-
150%FS
-
output signal:
-
4~20mA, 0~5V, 0~10V, 1~5V
-
accuracy:
-
0.25%FS, 0.5%FS(standard)
-
supply voltage:
-
12~36VDC
-
operating temperature range:
-
-30~+85℃
-
process connection:
-
G1/2 or 2"clamp
-
electrical connection:
-
hirschmann connector or others
-
compensated temperature range:
-
0~70℃

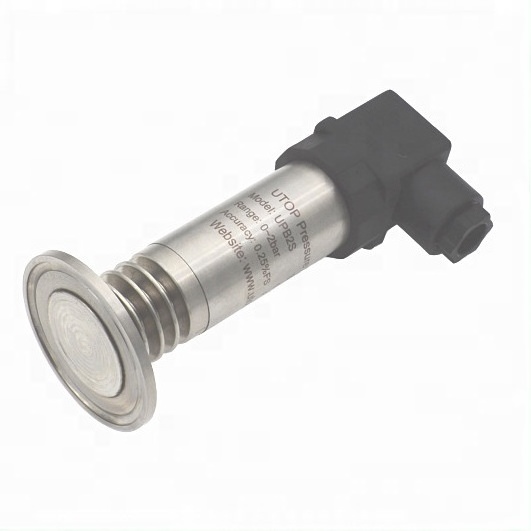

2" Clamp Food Industry Welded Flush Diaphragm 4~20mA
Sanitary Pressure Transmitter
Model: UPB2S
Description
UPB2S sanitary pressure transmitter measures pressure through its front complete flush diaphragm. By means of welding method, the isolated diaphragm of the transmitter is welded on the front end of process interface. UPB2S has clamping type, G1/2 thread type, and flange type for options. The complete flush diaphragm is used to prevent fouling, unsanitary and blocking of viscous liquids.
Details
Dimensions
Electrical connection
Specifications
| pressure medium | gas or liquid compatible with stainless steel |
| pressure ranges | -1...0~0.1...350bar |
| overload pressure | 150%FS |
| output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
| accuracy | 0.25%FS, 0.5%FS(standard) |
| load resistance | RL=(U-12V)/0.02A(4~20mA current output) U—loop voltage(V) |
| long-term stability | <0.2%FS/year |
| supply voltage | 12~36VDC |
| compensated temperature range | 0~70℃ |
| operating temperature range | -30~+85℃ |
| measured media temperature range | -40~+125℃ |
| temperature coefficient of zero | 0.3%FS/10℃ |
| temperature coefficient of span | 0.3%FS/10℃ |
| insulation resistance | 100MΩ@50VDC |
| process connection | G1/2 or others |
| electrical connection | hirschmann connector or others |
| material of wetted part | material of wetted part |
| material of pressure membrane | 316L stainless steel |
| 316L stainless steel | stainless steel or aluminium alloy |
Features
1. Pressure ranges:-1...0~0.1...350bar;
2. Flush membrane structure without input pressure hole & cavity;
3. The isolated diaphragm of the transmitter is welded;
4. High accuracy high strength, sanitary type, against fouling, dimensions can be customized;
5. Has different output signals;
6. Pressure type: gauge pressure, absolute pressure, sealed gauge pressure;
Application
UPB2S is widely used in food, medicine, health and wine industry etc.
Packing and shipping
>Standard export package: each unit has individual box and all boxes are packed in standard packages
>As the clients requirement.
Our Services
*UTOP products are 100% calibrated before the packaging and delivered with <<Calibration Certification>>.
*The products are guaranteed free of production defects and the quality is guaranteed for 12 months from the shipment date.
About company
-Our customers
--Our certificates
--Customers's feedback
Why choose UTOP?
1. More than 10 years in pressure and level sensor industry.
2. Fast production and delivery, within 3 days at fast.
3. Quick response for inquiries and emails.
4. Professional egineers and selling person.
5. At least 20000pcs production per month.
6. Customers from all over the world, especially from North America, Europe and Australia etc.
7. Flexible payment terms.
8. Customized products provided.
9. Certificates: CE, ROHS.
FAQ:
Q: Can you offer OEM service ?
A: Yes, We provide OEM service for our customers.
Q:
Could I have samples for testing?
A:
Yes,we can offer samples for you to test.
Q:
How long can I get the sensors?
A: For the standard design of the sensors, the fast lead time will be within one week.
Q: How can I get the quotation?
A: Send your inquiry to us via Alibaba directly. You can also contact Qi Huang(qihuang@utopsensor) and Maia JIA(maia@utopsensor) to get the quotation.
Q: What is the warranty for the sensors?
A: All the sensors are 100% calibrated before the packaging and delivered with <<Calibration Certification>>
and are guaranteed free of production defects and the quality is guaranteed for 12 months from the shipment date.
